VMC540 3 Axis 4 Axis 5 Axis Milling Machine Cnc Vertical Machining Center for Sale

Name: VMC540 3 Axis 4 Axis 5 Axis Milling Machine Cnc Vertical Machining Center for Sale
Brand: YiXing
Availability: InStock

FOB Price

US$ 41,000 - 50,000 / Set

1 Set(Min. Order)

Port shanghai Shenzhen Ningbo Hubei
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	Shanghai, China	Brand Name	YiXing
Model Number	VMC540	Voltage	380V
Power(W)	3.7/5.5KW	Dimension(LWH)	160018602100mm
Weight	3000kg	Certification	ISO9001
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Cheapest Price High Speed 50m/min Linkage Small VMC850 CNC Machining Price

1. The CNC machining center with the high-speed&high-precision spindles peed (12000/24000RPM),

2. The CNC machining center model ZG540 machine center is fit for highlights aluminium alloy parts on mobile and watches.

3. The CNC machining center can be drilling and tapping is ultra high-speed/high performance/high-precision.

4. The CNC machining center tapping speed can reach 6000RPM and X/Y/Z axis’s movement speed can reach 60M/MIN.

CNC machining center specifications Model ZG540
Parts	items	unit	CNC machine center-ZG540
Workbench	Size(L*W)	mm	650*400
	Workbench load	kg	250kg(even load)
	Spindle end to workbench face	mm	150-430
Spindle	Spindle speed	r/min	12000/24000
	Spindle motor	kW	3.7/5.5kW
	Hole conical degree	ISO	#30(BT30)
Traverse	Travel X/Y/Z	mm	500/400/280
	Rapid traverse speed X/Y/Z	m/min	60/60/60
	Cutting feed speed X/Y/Z	m/min	20/20/20
Precision	Positioning accuracy	mm	0.005/300
Precision	Repeated positioning accuracy	mm	±0.003
ATC	tool capacity	ea	21
	Max.tool Length	mm	170
	Max.tool dia	mm	80
	Max tools weight	kg	3
	Tool to tool(T-T)	sec	1
Power source	Power supply	kVA	16
Power source	Air source pressure	kgf/cm²(MPa)	6(0.6)
Motor	Dimension(L*W)	mm	L1600*W2100
	Dimension(H)	mm	2300
	Machine tool weight	kg	3000
Cooling	Tank volume	L	150
Cooling	Cooling pump flow	L/min	40
Congtrol panel	Spec		MITSUBISHI/M70VB
	Screen		8.4"Color TFT LCD
	Storage of programme	KB	500

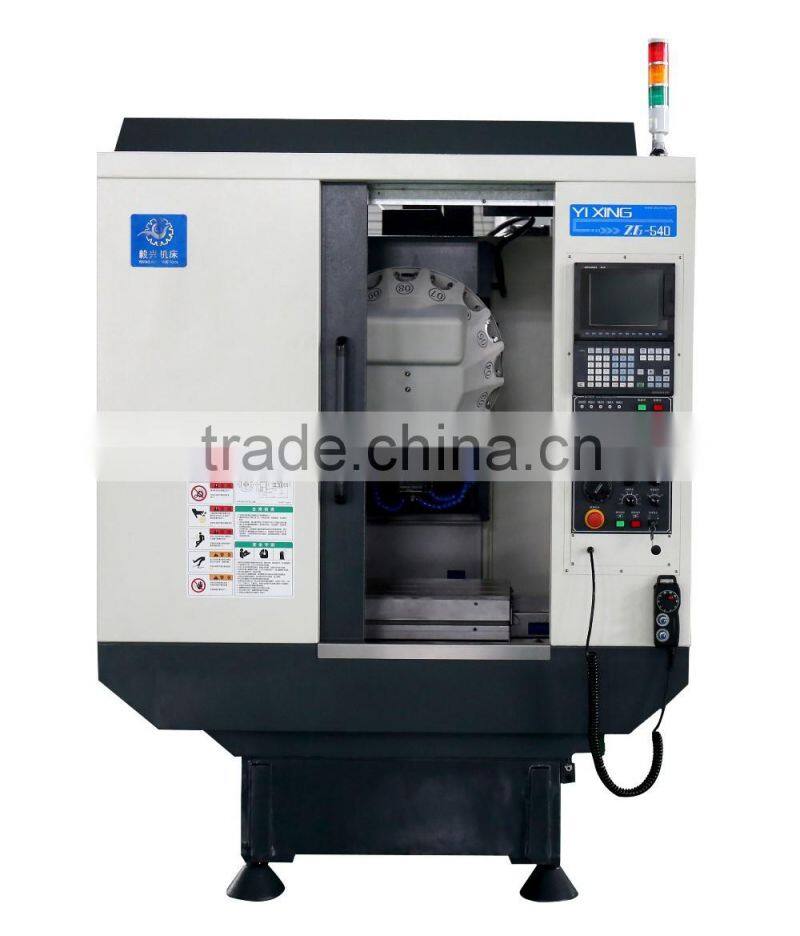

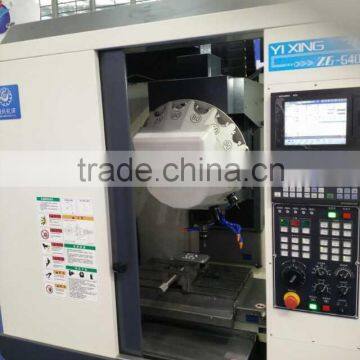

VMC540 3 axis 4 axis 5 axis milling machine cnc vertical machining center for sale pictures

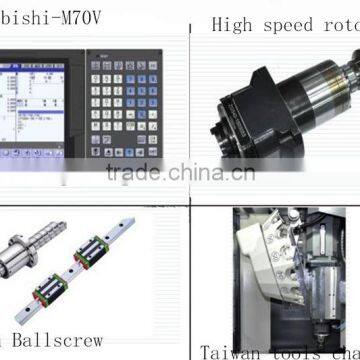

1. CNC machining center spindle speed 12000 / 24000rpm, spindle motor designed for direct connection to maintain stable accuracy in the long high-speed operation, 0-12000 deceleration time is only 0.6 seconds.

2, CNC machining center stable mechanical internal structure, excellent acceleration and deceleration performance of fast-moving.

3. CNC machining center Taiwan HIWIN linear guide rail, high-speed, so fast-moving three-axis 50m / min to become a reality, 540 models quickly reach 60m / min.

4. CNC machining center model ZG540 nose hanging fast tool exchange device, T-T only 1.8 seconds, reducing the costs of cutting time .

5. CNC machining center tilt base perfect design (within the perfect chip), to ensure the smooth discharge of cutting chips and cutting fluids

CNC MACHINING CENTER GUARANTEE &AFTER-SVRVICE:

1.Guarantee for one year

2.24-hour technical support by email or on line

3.User-friendly English manual for machine using and maintaining

4.Free technician training for large customers.

5. Provide Engineers for our customers

6.We could accept OEM .

Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.

Company specialize in automotive, marine, medical, communications, electronics, mold and other industries, Our main products CNC lahte ,machine center ,bar feeder ,atuo lathe and other CNC machine ,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.

The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
