Full-automatic CNC Lathe Machine Vmc-850

Name: Full-automatic CNC Lathe Machine Vmc-850
Brand: yixing
Availability: InStock

FOB Price

US$ 48,000 - 53,000 / Unit

1 Unit(Min. Order)

Port shanghai ningbo shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	China	Brand Name	yixing
Model Number	VMC850	Voltage	220V/380V
Power(W)	5.5/7.5kw	Dimension(LWH)	220027003000
Weight	4500kg	Certification	ISO9001
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

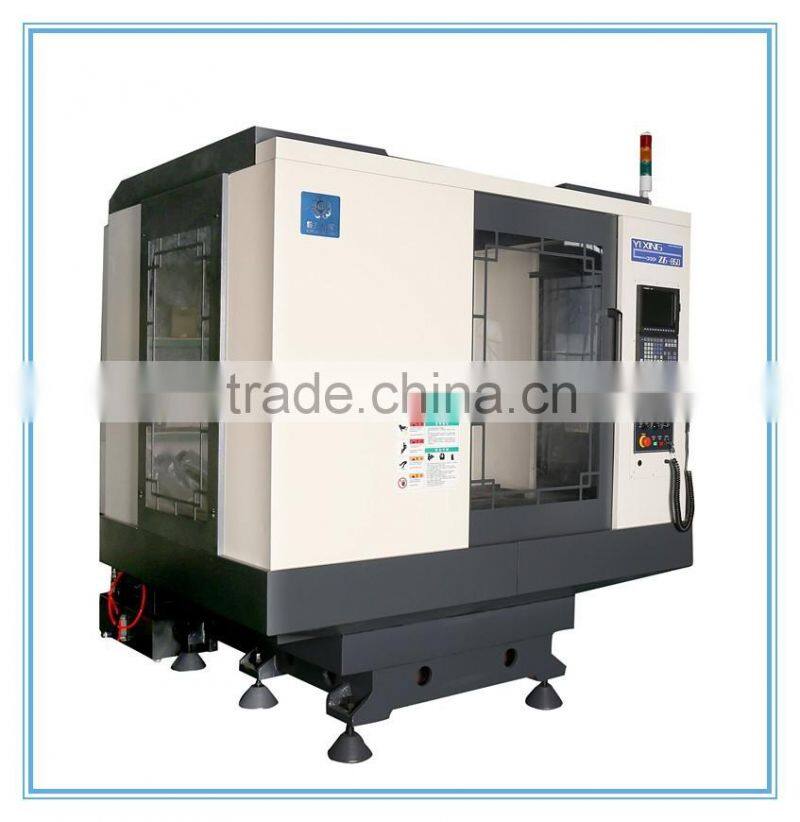

VMC850 high torque VMC NC center manufacturer 5 axis machine center high speed CNC machining center

1, CNC machining center adopting the high-speed&high-precision spindle(12000/24000RPM),

2, CNC machining center CVM850 Machine Center is suit for processing auto parts and communication aluminium alloy cavity.

3, CNC machining center drilling and tapping is ultra high-speed/high performance/high-precision.

4, CNC machining center tapping speed can reach 6000RPM and X/Y/Z axis’s movement speed can reach 50M/MIN.

5, CNC machining center Long traverse length,satisfies different processing needs on a large scale.

VMC850 high torque VMC NC center manufacturer 5 axis machine center high speed CNC machining center specifications

Specifications about CNC machining center VCM850
Parts	items	unit	drilling and tapping center-ZG850
Workbench	Size(L*W)	mm	500*900
	Workbench load	kg	350kg(even load)
	Spindle end to workbench face	mm	150-650
Spindle	Spindle speed	r/min	12000/24000
	Spindle motor	kW	5.5/7.5kW
	Hole conical degree	ISO	#30(BT30)
Traverse	Travel X/Y/Z	mm	800/500/500
	Rapid traverse speed X/Y/Z	m/min	50/50/50
	Cutting feed speed X/Y/Z	m/min	20/20/20
Precision	Positioning accuracy	mm	0.005/300
Precision	Repeated positioning accuracy	mm	±0.003
ATC	tool capacity	ea	21
	Max.tool Length	mm	170
	Max.tool dia	mm	80
	Max tools weight	kg	3
	Tool to tool(T-T)	sec	1
Power source	Power supply	kVA	16
Power source	Air source pressure	kgf/cm²(MPa)	6(0.6)
Motor	Dimension(L*W)	mm	L2200*W2700
	Dimension(H)	mm	3000
	Net weight	kg	4000
Cooling	Tank volume	L	220
Cooling	Cooling pump flow	L/min	60

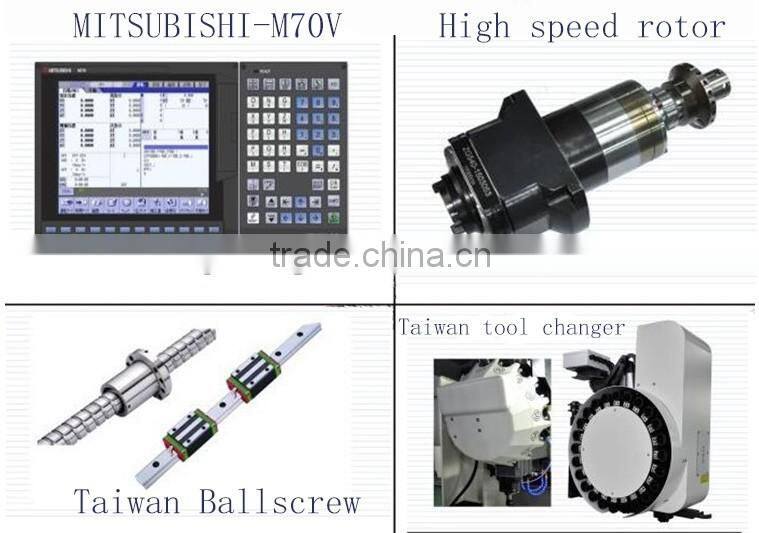

Congtrol panel	Spec		MITSUBISHI/M70VB
	Screen		8.4"Color TFT LCD
	Storage of programme	KB	500

VMC850 high torque VMC NC center manufacturer 5 axis machine center high speed CNC machining center pictures

1, CNC machining center vcm850 using the original disc magazine, tool change time of just one second, reducing non-cutting time, improve the processing efficiency .

2. CNC machining center by Renishaw laser interferometer, ballbar correction, so that precise positioning of the machine, repeat positioning accuracy for optimum stability.

3. CNC machining center this model is particularly suitable for aluminum, copper alloy, resin and other materials as well as drilling and tapping cool cutting, face milling processes .

4. CNC machining center operating system has high reliability, high-speed mobile all axes of 24m / min or more, the unique structure of the collet opening and closing, freely overlap processing, improve processing efficiency, reduce business costs .

CNC MACHINE CENTER GUARANTEE &AFTER-SVRVICE:

1.Guarantee for one year

2.24-hour technical support by email or on line

3.User-friendly English manual for machine using and maintaining

4.Free technician training for large customers.

5. Provide Engineers oversea training for our customers

6.We could provide OEM .

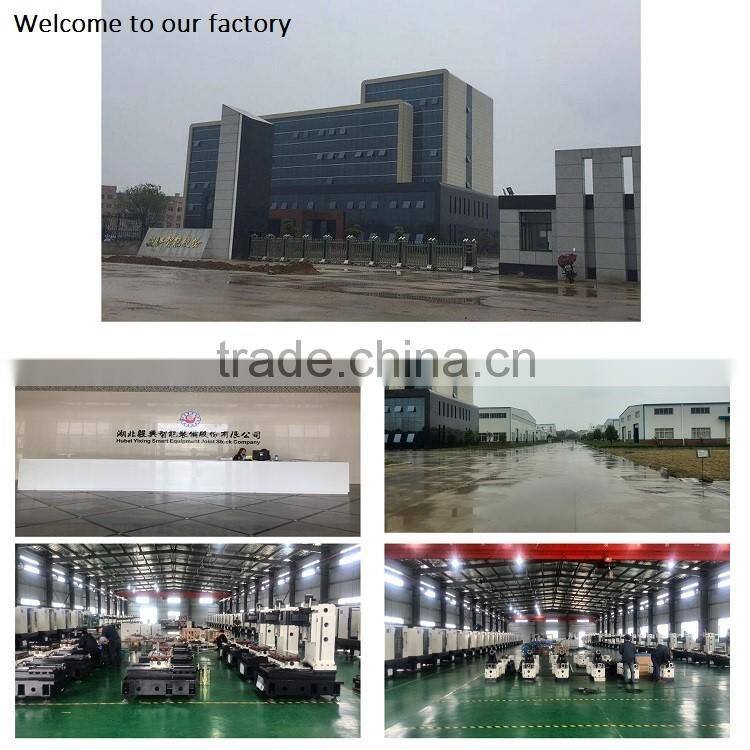

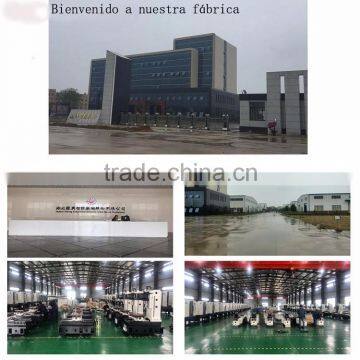

Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province –Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.

Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Our main products CNC lathe ,CNC machining center ,auto lathe ,bar feeder etc .Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.

The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
