China Yixing New Model High performance 3-axis vcm850 vertical machining center
USD $39,000 - $43,000
/ Unit
1 Unit(Min.Order)
- 100 Unit / Units per Month
- shanghai ningbo shenzhen
- T/T Credit Card
You May Like
-
SMT panasonic CM202-DS
-
vmc650 CNC machining center|CNC machining center 650
-
vmc850 CNC machining center|Vertical Machining Center
-
vmc650 CNC machining center|CNC machining center 650
-
Plastic product processing flame-retardant ABS mold production Plastic shell Plastic accessories Injection molding mold design
-
Manufacturer abs blow mold processing PP PE Injection mold construction processing large electronic product mold injection
Product Details
| Condition: | New | Type: | Vertical | Place of Origin: | Shanghai, China |
| Brand Name: | yixing | Model Number: | VMC850 | Voltage: | 220V/380V |
| Power(W): | 5.5/7.5kw | Dimension(L*W*H): | 2200*2700*3000 | Weight: | 4500kg |
| Certification: | ISO9001 | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description
China Yixing New Model High performance 3-axis vcm850 vertical machining center
1, CNC machining center adopting the high-speed&high-precision spindle(12000/24000RPM),
2, CNC machining center CVM850 Machine Center is suit for processing auto parts and communication aluminium alloy cavity.
3, CNC machining center drilling and tapping is ultra high-speed/high performance/high-precision.
4, CNC machining center tapping speed can reach 6000RPM and X/Y/Z axis’s movement speed can reach 50M/MIN.
5, CNC machining center Long traverse length,satisfies different processing needs on a large scale.
China Yixing New Model High performance 3-axis vcm850 vertical machining center specifications
| Specifications about CNC machining center VCM850 | |||
| Parts | items | unit | drilling and tapping center-ZG850 |
| Workbench | Size(L*W) | mm | 500*900 |
| Workbench load | kg | 350kg(even load) | |
| Spindle end to workbench face | mm | 150-650 | |
| Spindle | Spindle speed | r/min | 12000/24000 |
| Spindle motor | kW | 5.5/7.5kW | |
| Hole conical degree | ISO | #30(BT30) | |
| Traverse | Travel X/Y/Z | mm | 800/500/500 |
| Rapid traverse speed X/Y/Z | m/min | 50/50/50 | |
| Cutting feed speed X/Y/Z | m/min | 20/20/20 | |
| Precision | Positioning accuracy | mm | 0.005/300 |
| Repeated positioning accuracy | mm | ±0.003 | |
| ATC | tool capacity | ea | 21 |
| Max.tool Length | mm | 170 | |
| Max.tool dia | mm | 80 | |
| Max tools weight | kg | 3 | |
| Tool to tool(T-T) | sec | 1 | |
| Power source | Power supply | kVA | 16 |
| Air source pressure | kgf/cm²(MPa) | 6(0.6) | |
| Motor | Dimension(L*W) | mm | L2200*W2700 |
| Dimension(H) | mm | 3000 | |
| Net weight | kg | 4000 | |
| Cooling | Tank volume | L | 220 |
| Cooling pump flow | L/min | 60 | |
| Congtrol panel | Spec | MITSUBISHI/M70VB | |
| Screen | 8.4"Color TFT LCD | ||
| Storage of programme | KB | 500 | |
China Yixing New Model High performance 3-axis vcm850 vertical machining center pictures
1, CNC machining center vcm850 using the original disc magazine, tool change time of just one second, reducing non-cutting time, improve the processing efficiency .
2. CNC machining center by Renishaw laser interferometer, ballbar correction, so that precise positioning of the machine, repeat positioning accuracy for optimum stability.
3. CNC machining center this model is particularly suitable for aluminum, copper alloy, resin and other materials as well as drilling and tapping cool cutting, face milling processes .
4. CNC machining center operating system has high reliability, high-speed mobile all axes of 24m / min or more, the unique structure of the collet opening and closing, freely overlap processing, improve processing efficiency, reduce business costs .
Machine Model: ZG850 cnc machine center
Type of package: Plywood case
Packaging size: 240*290*310 CM(one set in one case)
N.W./G.W.: 4000 KGS
Type of package: Plywood case
Packaging size: 240*290*310 CM(one set in one case)
N.W./G.W.: 4000 KGS
CNC MACHINE CENTER GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
6.We could provide OEM .

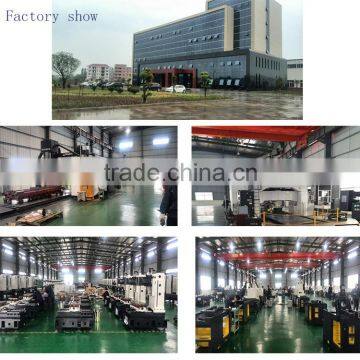

Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province –Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Our main products CNC lathe ,CNC machining center ,auto lathe ,bar feeder etc .Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
