European Style High Quality Vcm 850 Vertical Mini Cnc Millng Machining Center Quality Choice
US$ 48,000 - 53,000
/ Set
1 Set(Min. Order)
- shanghai Shenzhen Ningbo Hubei
- T/T Credit Card PayPal
You May Like
-
Shanghai Supply Vertical Cnc Machining Centre&milling Boring Drilling 3 Axis Cnc Vertical Machining Center Quality Choice
-
Vcm850 5 Axis Cnc Vertical Linkage Machining Centre With Promotion Price Quality Choice
-
VMC540 3 Axis 4 Axis 5 Axis Milling Machine Cnc Vertical Machining Center for Sale
-
High Quality Cnc Machine Center VMC540 Swiss Type CNC Automatic Lathe Vertical Cutting Machine
-
Hot Sale European Quality VCM850 Multi-spindle Taiwan Vertical 5-axis Machining Center
-
Cnc Machining Center ZG540 Low Cost High Performance Vertical CNC Tools Price
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Shanghai, China | Brand Name | YiXing | |
| Model Number | VMC850 | Voltage | 380V | |
| Power(W) | 5.5/7.5kw | Dimension(L*W*H) | 2200*2700*3000 | |
| Weight | 4000kg | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
European Style High quality vcm 850 vertical mini Cnc millng machining center
1, The millng machining center was adopting the high-speed&high-precision spindle(12000/24000RPM),
2, The millng machining center is suit for processing auto parts and communication aluminium alloy cavity.
3, The millng machining center can be drilling and tapping is ultra high-speed/high performance
/high-precision.
4, The millng machining center tapping speed can reach 6000RPM and X/Y/Z axis’s movement speed can reach 50M/MIN.
5, The millng machining center long traverse length,satisfies different processing needs on a large scale.
| Milling machining center specifications ZG850 | |||
| Parts | items | unit | drilling and tapping center-ZG850 |
| Workbench | Size(L*W) | mm | 500*900 |
| Workbench load | kg | 350kg(even load) | |
| Spindle end to workbench face | mm | 150-650 | |
| Spindle | Spindle speed | r/min | 12000/24000 |
| Spindle motor | kW | 5.5/7.5kW | |
| Hole conical degree | ISO | #30(BT30) | |
| Traverse | Travel X/Y/Z | mm | 800/500/500 |
| Rapid traverse speed X/Y/Z | m/min | 50/50/50 | |
| Cutting feed speed X/Y/Z | m/min | 20/20/20 | |
| Precision | Positioning accuracy | mm | 0.005/300 |
| Repeated positioning accuracy | mm | ±0.003 | |
| ATC | tool capacity | ea | 21 |
| Max.tool Length | mm | 170 | |
| Max.tool dia | mm | 80 | |
| Max tools weight | kg | 3 | |
| Tool to tool(T-T) | sec | 1 | |
| Power source | Power supply | kVA | 16 |
| Air source pressure | kgf/cm²(MPa) | 6(0.6) | |
| Motor | Dimension(L*W) | mm | L2200*W2700 |
| Dimension(H) | mm | 3000 | |
| Net weight | kg | 4000 | |
| Cooling | Tank volume | L | 220 |
| Cooling pump flow | L/min | 60 | |
| Congtrol panel | Spec | | MITSUBISHI/M70VB |
| Screen | | 8.4"Color TFT LCD | |
| Storage of programme | KB | 500 | |
European Style High quality vcm 850 vertical mini Cnc millng machining center pictures
1, Mitsubishi CNC millng machining center ZG850 using the original disc magazine, tool change time of just one second, reducing non-cutting time, improve the processing efficiency .
2. Mitsubishi CNC millng machining center by Renishaw laser interferometer, ballbar correction, so that precise positioning of the machine, repeat positioning accuracy for optimum stability.
3. Mitsubishi CNC millng machining center this model is particularly suitable for aluminum, copper alloy, resin and other materials as well as drilling and tapping cool cutting, face milling processes .
4. Mitsubishi CNC millng machining center operating system has high reliability, high-speed mobile all axes of 24m / min or more, the unique structure of the collet opening and closing, freely overlap processing, improve processing efficiency, reduce business costs .
MITSUBISHI CNC MILLING MACHINING CENTER GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
6.We could provide OEM .

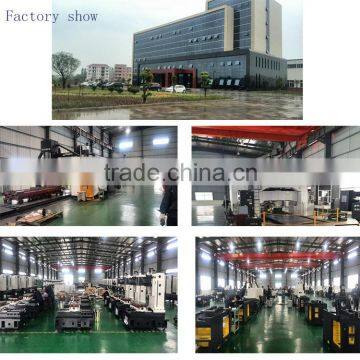

Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Our main products CNC lathe ,CNC machining center ,auto lathe and bar feeders .Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
