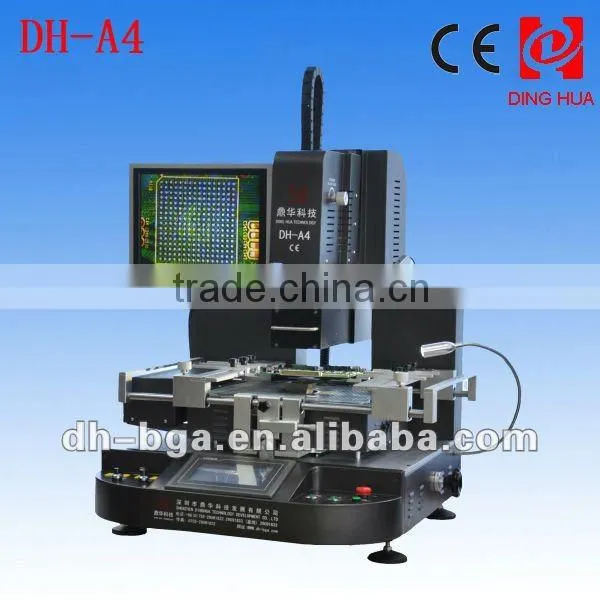

Optical Alignment Laptop Repair Kit BGA Rework Station DH-A4
Specifications of Optical Alignment Laptop Repair Kit BGA Rework Station DH-A4
Total Power |
6800W |
Top heater |
1200W |
Bottom heater |
Second heater 1200W,IR preheating 4200w |
Current |
20A |
power |
AC220V±10% 50/60Hz |
Dimensions |
L1022*W670*H850 mm |
Packing size |
900*1170*1150mm |
Positioning |
V-groove, PCB support can be adjusted in X,Y direction and equipped with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±1°C |
PCB size |
Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning |
Forward/back±15mm, right/left±15mm |
Camera magnification |
10x-100x times |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1-5(optional) |
Placement Accuracy |
±0.01MM |
NW/GW |
97kg/116kg |
Features of Optical Alignment Laptop Repair Kit BGA Rework Station DH-A4
1.High definition touch screen, PLC control, can save multiple group profile. Show the real-time set and
measured temperature with instant temperature curve analysis function.
2.Power on password protect and change function, To ensure the heating effect and placement accuracy,
the heating head and placement head are independent control. Adopt linear slide which makes X,Y,Z axis
all can do micro adjust or rapid positioning; Instead of moving the PCB after mounting, we just need to
move the upper heating head to heat directly to ensure the welding effect, placement accuracy.
3.Three independent heaters. Hot air upper and bottom heater. Infrared preheat bottom. Heating time,
temperature and curve all can be displayed on touch screen.
4.K-type thermocouple (closed loop), PID parameter self-setting system automatic and temperature
adjustment system with PLC, temperature precision within ±1 degree.
5.V-groove PCB can be adjusted in any direction with external universal fixture, suitable for all kinds of
BGA repair
6.Flexible and removable universal fixture protects the PCB, prevents PCB components damage and
deformation and adapt to all kinds of BGA size
7.Offer all kinds of hot-air nozzle, with 360degree rotation; easy to install and change, customized is available.
8.High-definition CCD version system, two-tune, enlarge, micro-adjustment, automatic focusing and
remediation equipped with color resolution and brightness adjustment auto device and can adjust the
definition auto automatic or manual.
9.X The X, Y axis and R angle with micrometer adjust, precise positioning, alignment accuracy within
±0.01MM. High-definition LCD monitors.
10,8 level up/down + 8 level constant temperature control, save multiple groups profile. We can analyze, set
and calibrate the temperature parameters curve on the touch screen at any time.
11,Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding,
voice reminder / warning to get the workers prepared. Cooling system will start automatically or manually
after vertical wind stopped heating to ensure the welding effect.
12,Internal vacuum pump, Φ angle 60° rotation, Micrometer precision to mount suction nozzle by fine tuning without air.
13,CE certification, with emergency switch and automatic power-off protection device when emergency happens.
Structure of Optical Alignment Laptop Repair Kit BGA Rework Station DH-A4
More Photos of Optical Alignment Laptop Repair Kit BGA Rework Station DH-A4
Accessories of Optical Alignment Laptop Repair Kit BGA Rework Station DH-A4
Packing of Optical Alignment Laptop Repair Kit BGA Rework Station DH-A4
Certifications of Optical Alignment Laptop Repair Kit BGA Rework Station DH-A4
