Specifications
1. Automatic Optical Alignment BGA Repair Kit2.HD touch screen interface
3.CCD Camera
Total Power |
6700W |
Top heater |
1200W |
Bottom heater |
Second heater 1200W, IR preheating 3900w |
Power |
AC220V±10% 50/60Hz |
Current |
20A |
Dimensions |
L700*W700*H950 mm |
Packing size |
760*680*680mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Workbench fine-tuning |
±15mm forward/backward,±15mm right/left |
Placement Accuracy |
±0.01MM |
Temp accuracy |
±1℃ |
PCB size |
Max 450*490 mm Min 22*22 mm |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
5(optional) |
NW/GW |
91KG/112KG |

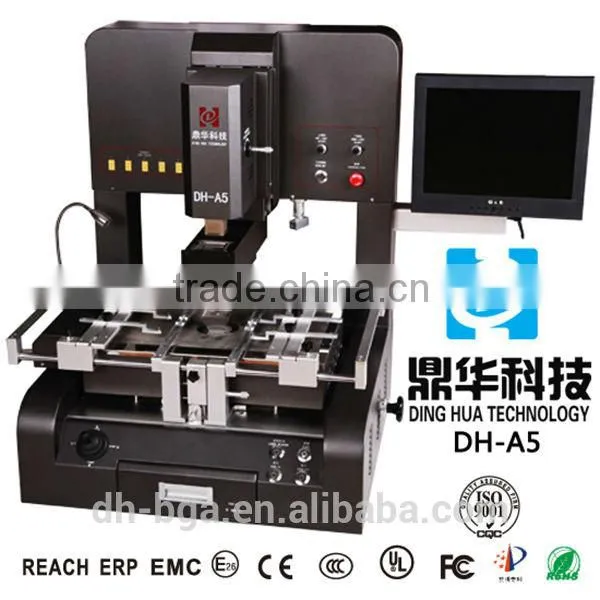

Features of Automatic Optical Alignment BGA Repair Kit DH-A5 For Computer Motherboard
Chip Repair
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with PLC and temperature module to enable precision temperature control of ±2 degree.
3.Servo system to realize the automatic to weld, mount and dismount. V-groove PCB can be adjusted in any direction with external universal fixture, suitable for all kinds of BGA repair. Adopt linear slide which makes X, Y, Z axis all can do micro adjust or rapid positioning with high precision and easy operation.
4.Flexible and removable universal fixture protects the PCB, prevents PCB components damage and deformation and adapt to all kinds of BGA size
5.Offer all kinds of hot-air nozzle, with 360degree rotation; easy to install and change, customized is available.
6.3 independent heaters, can control the temperature multiple sets at the same time with three heating area and ensure that different heater area will be have the best welding effect.
7.8 level up/down+8 constant temperature control, large storage space for temperature profiles, can operate curve analysis, setting and correction on the screen. And the three independent heaters use the independent PID ways to conrol the heating process.
8.High precision digital video registration system, al aspects to observe the four corner and middle of the BGA positioning.
9.Powerful cross flow fan cool for the PCB to prevent deformation. And internal vacuum pump, external vacuum pen to pick up the BGA chip more convenient.
10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.
11.CE certification, with emergency switch and automatic power-off protection device when emergency happens.
Structure of Automatic Optical Alignment BGA Repair Kit DH-A5 For Computer Motherboard Chip Repair
Details of Automatic Optical Alignment BGA Repair Kit DH-A5 For Computer Motherboard Chip Repair

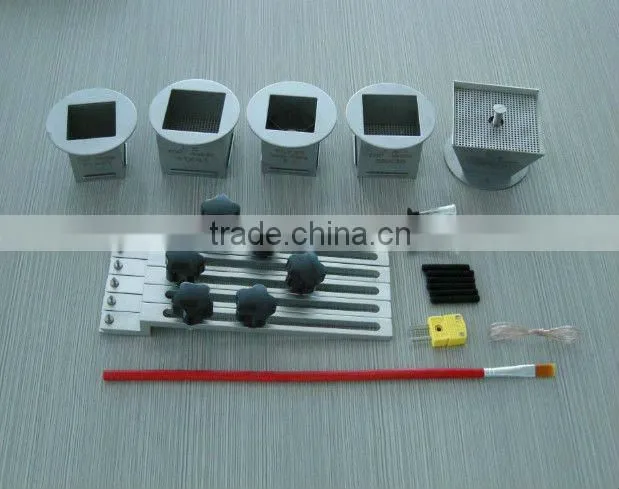

Accessories of Automatic Optical Alignment BGA Repair Kit DH-A5 For Computer Motherboard Chip Repair
1 piece user guide
-1 piece brush
-1 piece temperature sensor
- 5 pcs hot air nozzle: top nozzle 3pcs (31x31mm,38x38mm,41x41mm), Bottom nozzle 2pcs (34x34mm,55x55mm) PS: Hot air nozzle size can be customized according to your chip size
-1 piece vacuum pen
-5 pcs vacuum sucker
-6 pcs universal fixture
-6 pcs plug knob
-6 pcs supporting screw
