Auto optical alignment bga rework system CCD camera HD touch screen bga rework system DH-A2
- 200 Set / Sets per Month
- Shenzhen
- Credit Card
- Denoh For Connecting Automation Special Machine 500e Dgn Flux Core Welding Machine Multi Function
- High Quality Multi-function Integrated Multi-purpose Multifunctional Welding Machine
- 500e Dgn Flux Core Integrated Multi-purpose Multi-function Welder
- Denoh Digital Push Wire Type Engine Welding Machine
- Denoh Engine Welding Machine Push Wire Type High Quality China
- Denoh Multi-function Welder For Connecting Automation Special Machine At Wholesale Price
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Dinghua | Model Number: | DH-A2 |
Voltage: | AC220V±10% / 110V 50/60Hz optional | Current: | 20A | Rated Capacity: | None |
Rated Duty Cycle: | 100% | Dimensions: | approx 530x670x790mm | Weight: | Approx 70KG |
Usage: | Repair Micro smd / laptop / mobile phone | Certification: | CE ISO 9001 2008 ROHS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Auto optical alignment bga rework system CCD camera HD touch screen bga rework system DH-A2
Specification of bga rework station DH-A2:
Total Power | 5300W |
Top heater | 1200W |
Bottom heater | 2nd 1200W, 3rd IR heater 2700W |
Power | AC220V±10% 50Hz |
Operation mode | Two modes: manual and automatic. HD touch screen, intelligent man-machine, digital system setting. |
Optical CCD camera lens | 90°open/folding |
Camera magnification | 10x - 220x |
Workbench fine-tuning: | ±15mm forward/backward, ±15mm right/left |
Placement accuracy: | ±0.01mm |
Bga positioning | Laser positioning, fast and accurate position of pcb and bga |
PCB position | Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Lighting | Taiwan led working light, any angle adjustable |
Temperature profile storage | 50000 groups |
Temperature control | K sensor, close loop, PLC control |
Temp accuracy | ±1℃ |
PCB size | Max 370×410 mm Min 22×22 mm |
BGA chip | 2x2 - 80x80 mm |
Minimum chip spacing | 0.15mm |
External temper sensor | 1pc |
Dimensions | 530x670x790mm |
Net weight | 70KG |
Detail pictures:
Features:
1.Embedded industrial PC, Digital system setting, Three independent heating zones, Panasonic CCD camera system, HD touch screen conversational interface, PLC control, Multi-functional integrated control, Human structure design, Folding optical lens, Optional number, store and choose temperature profile.

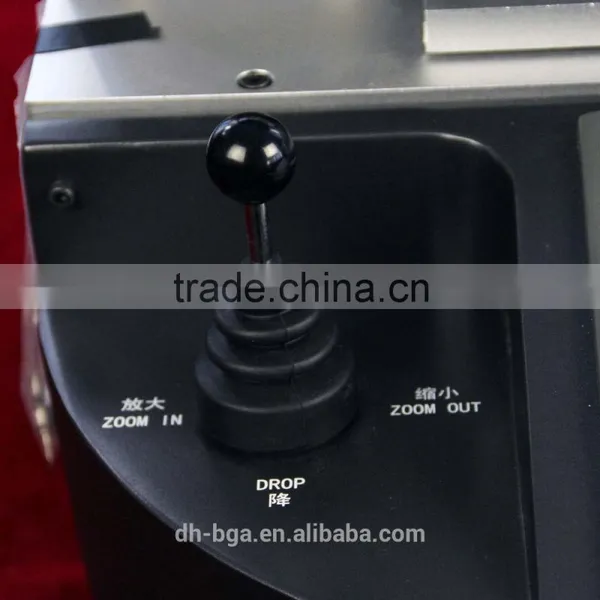

2.Two operation modes in system: Auto/manual. Auto mode: auto pick, placement, soldering / desoldering bga with button. Manual mode: Manual up/down top head to soldering / desoldering bga with joysticks. Both modes combines with optical alignment and laser positioning to finish the process. Meanwhile, build-in vacuum can pick up bga chip conveniently.
3.Multi-functions: “fast positioning”, “holding temperature”, “pressure sensor”, “instant temperature analysis”, “voice warning before heating finish”, “HD visual optical alignment”, “High precise temperature control, high repair rate, high stability”, etc.
4.High precise k-type thermocouple closed-loop control and PID automatic temperature compensation system, with PLC and temperature module and intelligent control unit to enable precise temperature deviation on ±2℃. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
5.Laser positioning: help rapid place PCB on the center point, and with “5 points support position”, more convenient and accurate.
6.Movable universal fixture prevent pcb from damaged on fringe component, suitable for all kinds of pcb repairing.
7.High power LED light to ensure brightness for working, and with different size of magnet nozzles, titanium alloy material, easy replace and install, never deformation and rusty.
8.6-8 segments temperature can be set for top heating and lower heating(up to 16 segments). 50,000 groups of temperature curves can be stored, which can number, modification and apply at any time according to different BGA. Curve analysis, setting and adjustment are also available on touch screen.
9.With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time. After heating, cooling fan will work automatic, when temperature cool down to room temperature ( <45℃ ), cooling system will stop automatic to prevent the heater from aging.
10.CE certification approval. Double protection: Overheating guard + emergency stop function.
Shipping
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
Payments
We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please kindly inform us.
Certification:
Warranty:
Three years warrantyfor heater wires of machine, one year warranty for other parts. life long free technical support.(two years longer then other companies.)
As we know, heaters are the most important part in the machine. Heater wires are offered free in three year, other parts free in one year.
Our heater wires are imported from German, high quality and durable, enables us to offer a longer time warranty than other companies.
Our company:
Our customer:
Guarntee and sale-after:
1. We provide you the friendly English User manual for free.
2. Videos of operating the machine are available.
3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the problems in 24 hours.
4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for technical support always.
