Drawer Design PCB Repairing machine BGA Rework Stationldering and desoldering machine
2.Laser postioning and CCD
Drawer Design PCB Repairing machine BGA Rework Station

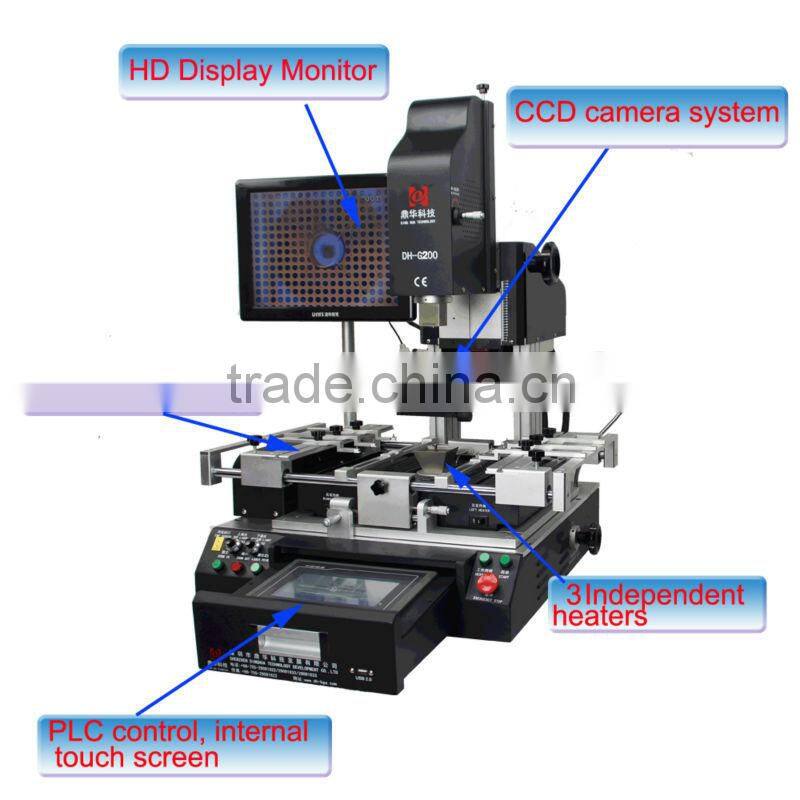

| Product name | soldering and desoldering machine |
| Total power | 5300W |
| top heating | 1200w |
| bottom heating | bottom hot air heating 1200W, IR preheating 2700W |
| Power | 220V 50HZ/60HZ |
| Positioning | V-groove, PCB boards can be adjusted in X, Y axis and equipped with universal fixture |
| Temperature control | K-type, Closed loop |
| PCB size | Max 400x380mm, Min 22x22mm |
| Chip size | 2x2-50x50mm |
| Minimum chip spacing | 0.15mm |
| External temperature sensor | 1(optional) |
| N.W. | approx 60kg |
| Suitable motherboards | mobile phone, laptop, desktop, game console, XBOX360, PS3 |
| Main feature | 1.CCD camera systerm 2.optical alignment 3.PLC control, Enlish interface for standard, any special language please inform before oreder 4.laser postioning 5.portable drawer style HD touch screen |
| Accessories | -1 piece user guide -1 piece LCD -5 pcs hot air nozzle: top nozzle 3pc(31x31mm,38x38mm,41x41mm), Bottom nozzle 2pcs (34x34mm,55x55mm)PS: Hot air nozzle size can be customized according to your chip size -1 set of vacuum sucker(including 4 pcs) -2 pcs vacuum pad -6 pcs universal fixture -4 pcs supporting screw -6 pcs Plum knob |
Description about Drawer Design PCB Repairing machine BGA Rework Station
1.Embedded industrial PC, high definition touch screen, make the operation humanity, CPU control, and instant curve analysis function. Real-time display settings and actual temperature curve, which can also be used to analyze and correct the curve if necessary.
2. High precise k-type thermocouple closed-loop control and automatic temperature compensation system, with CPU and temperature module to enable precise temperature deviation to add and subtract 2 degrees. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
3. V-groove PCB works for rapid, convenient and accurate positioning, which can meet all kinds of PCB board of positioning.
4. Flexible and convenient removable fixture on the PCB board can protect the PCB fringe devices from damaging and transmuting. It can also adapt to various BGA ‘s reworking.
5. Various sizes of BGA alloy nozzles, which can be adjusted 360 degree for easily installation and replacement.
6. Three independent heaters: Three temperature areas can independently heat and they are multiple temperature control, which can ensure best integration of different temperature areas. Heating temperature, time, slope, cooling and vacuum can all be set in the human-machine interface.
7. There are 8 stage temperature controls up and down. Massive storage of temperature curves which are accessible at any time according to different BGA. Curve analysis, setting and adjustment are also accessible via touch screen. Three heating areas adopt independent PID calculation to control heating process to enable more accurate temperature.
8. High power cross-flow fan to enable fast cooling of PCB board and prevent PCB from deformation. There are also internal vacuum pump and external vacuum chuck, which can help to fetch the BGA chip;
9. Collocating with sound control "early warning" function. It can warn workers to make some relative preparation 5-10 seconds before the completion of uninstalling or welding. Cooling system will start after vertical wind stopped heating. When the temperature drops to normal temperature, the cooling process will stop automatically, so that the machine will not be aging after temperature heated up.
10. Rocker controller for controlling the upper heater goes up and down freely, and it also has the function for zooming the picture.
11. CE certificate,equipped with emergency stop switch and automatic power-off
protection device when emergency happens.
More Photo about Drawer Design PCB Repairing machine BGA Rework Station
Laser positioning and scaleplate
Micrometer
IR plate and portable HD touch screen
Photo about Packing
All of our machine will packed carefully with standard plywooden box, to protect it from transport
Photo about our Company
Photo about our Customer
Photo about Certification
Why are we?
1, Well-equipped manufacturing facility.
2,Professionalism innovative R&D team, provide professional service for bga rework station solution.
3,Optimum performance,precision temperature control to ensure high rate of success for S&M. As we know, the performance of bga chip soldering and desoldering is high depends on the precise of the temerature. Our bga machine use PID control,the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature), but among the bga rework station industry, most of company just use the PID grab freqency is 30ms.
4,International quality standard range,all our product have got the CE, ISO 9001 2008,Rohs approval.
5,Competitive price. All our machine material select from world class brand (like Omega,SMC,CNB,GS, which is make us insure safer,comvenient speedily operation.
7,We supply 3 years warranty for this BGA rework station , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, life long technical support.
