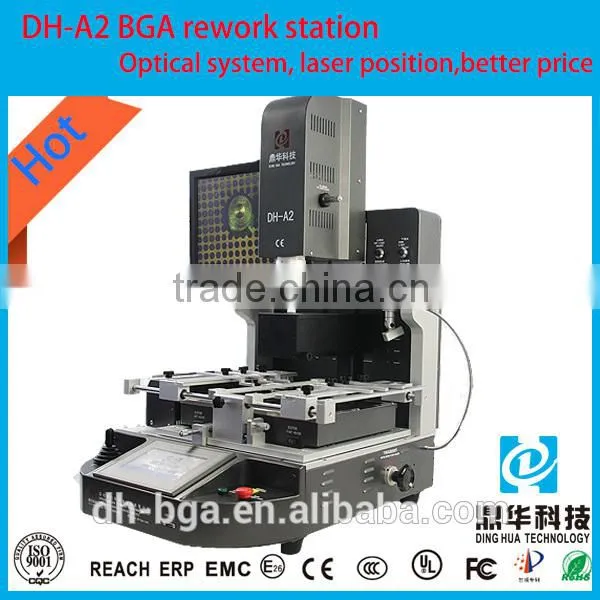

CCD Camera BGA Rework Station DH-A2 Seim-auto BGA Rework Station
- 500 Set / Sets per Month
- Shenzhen
- T/T Credit Card
- Hot sale products Automatic Soldering Machine Auto Quick Mini Robotic for PCB Electronic Products
- Automatic Soldering Machine Auto Quick Mini Robotic for PCB Electronic Products
- Automatic Soldering Machine for LED strip light Products
- Hot sale products Desktop automatic Automatic Soldering Machine for PCB Electronic Products
- Table top four axis soldering machinery and equipment plane side spot welding drag welding temperature record soldering machine
- LED light with three axis soldering machine PCB circuit board soldering machine FPC automatic soldering equipment
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | Dinghua |
Model Number: | DH-A2 | Rated Duty Cycle: | 100% | Rated Capacity: | 5200W |
Voltage: | AC220V±10% | Current: | 25A | Dimensions: | 690*670*870mm |
Weight: | N.W70kg/G.W105kg | Certification: | CE,ISO9001:2008 | Usage: | MotherboardXbox360/cell-phones BGA chip reworking |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
CCD Camera BGA Rework Station DH-A2 Seim-auto BGA Rework StationOptical Laser alignment
HD touch screen and display screen
CCD Camera BGA Rework Station DH-A2 Seim-auto BGA Rework Station
Power supply | AC220V±10% 50/60Hz |
Power | 5300W |
Top heater | Hot air 1200W |
Bottom heater | Hot air 1200W, Infrared 2700W |
Current | 20A |
Positioning | V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control | K sensor closed loop control |
Temp accuracy | ±1°C |
PCB size | Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning | ±15mm forward/backward, ±15mm right/left |
Placement Accuracy | ±0.01MM |
Camera magnification | 10x-220x |
BGA chip | 2*2-80*80mm |
Minimum chip spacing | 0.15mm |
External Temperature Sensor | 1-5(optional) |
Machine dimension | (L*W*H): 690*670*870mm |
Packing size | 820*780*790mm |
NW/GW | 70/105 KG |
DH-A2 Main feature
HD touch screen interface, PLC control
HD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.
CE certification, with emergency switch and automatic power-off protection device when emergency happens
Three years warranty for the heating system, one year for the whole machine(Two years longer than other companies), free life-long technical support
DH-A2 Details
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it,
please kindly tell us.
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
Shenzhen Dinghua Technology & Development Co., Ltd is a professional manufacturer of BGA rework station, rework tools and associated equipments, engaging in design, production, sales and service.We commit us to make the professional equipment, provide the high quality a perfect service for the customer. As one of pioneer in this industry, we continue to improve and innovate along with the market demands by absorbing the advanced development experience from home and abroad to adhering to our vision of ‘Professionalism, Honesty, Innovative and Responsibility’.
Science and technology are primary productive forces. Through teamwork, we achieved the core thermal-control technology with related patent. At the same time, our products cover 3 categories: high-end, mid-end and low-end for development and production using manual, semi-auto to fully automated processes. Our market had expanded into industries like: individual repair, factories, education, military and aerospace etc. And we had established the point-of sales and end service at locally and abroad.
Your satisfaction is our target, adhering to customer-focus, market oriented, and our company provides fist class products and high efficient services for customers through continuous innovation. We are honored to work with you to create a brighter future.
Our compay
Our customer
a. Your inquiry related to our products or prices will be replied within 24hours.
b.Be Well-trained and experienced to answer all your enquires in fluent English
c. OEM&ODM, any your request we can help you to design and put into product.
d. Distributors are offered for your unique design and some our current models
e. Protection of your sales area, ideas of design and all your private information.
We always answer your questions: 24 hours a day, 7 days a week.
