Specifications

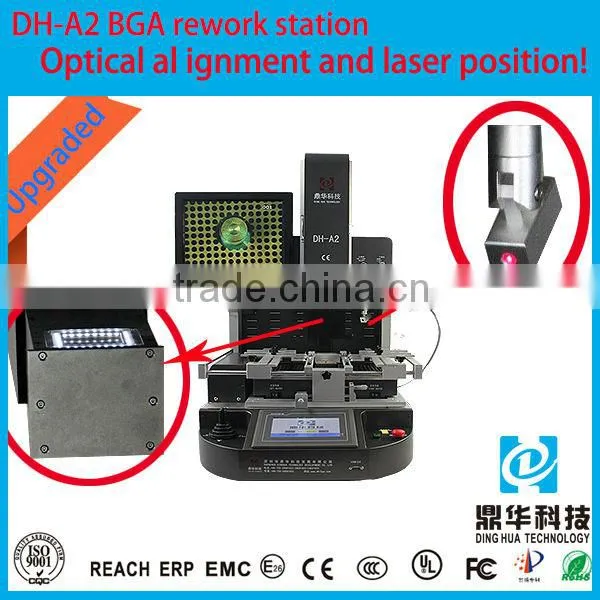

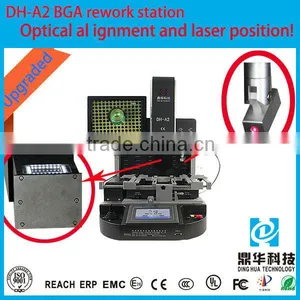

Optical Alignment BGA Rework Station DH-A2 Update From zm-6200Optical Laser alignment
HD touch screen and display screen
Optical Alignment BGA Rework Station DH-A2 Update From zm-6200
Power supply |
AC220V±10% 50/60Hz |
Power |
5300W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 2700W |
Current |
20A |
Positioning |
V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control |
K sensor closed loop control |
Temp accuracy |
±1°C |
PCB size |
Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning |
±15mm forward/backward, ±15mm right/left |
Placement Accuracy |
±0.01MM |
Camera magnification |
10x-220x |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1-5(optional) |
Machine dimension |
(L*W*H): 690*670*870mm |
Packing size |
820*780*790mm |
NW/GW |
70/105 KG |
DH-A2 Main feature
HD touch screen interface, PLC control
HD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.
CE certification, with emergency switch and automatic power-off protection device when emergency happens
Three years warranty for the heating system, one year for the whole machine(Two years longer than other companies), free life-long technical support
DH-A2 Details
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it,
please kindly tell us.
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
