Laser position system Automatic BGA Rework Station for PCB Chip1.CCD camera and HD display
2.Drawer design HD touch screen

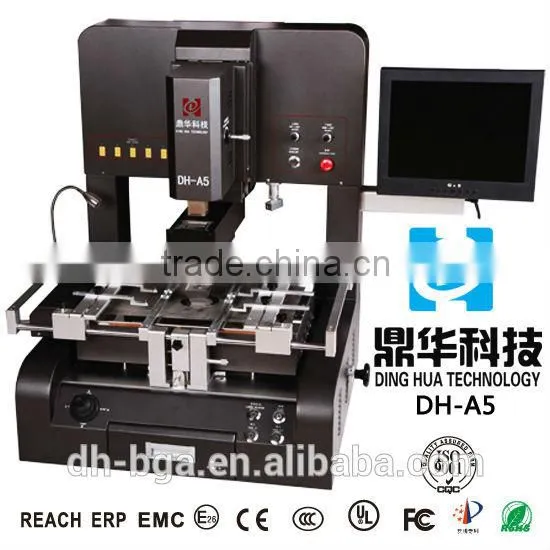

Laser position system Automatic BGA Rework Station for PCB Chip

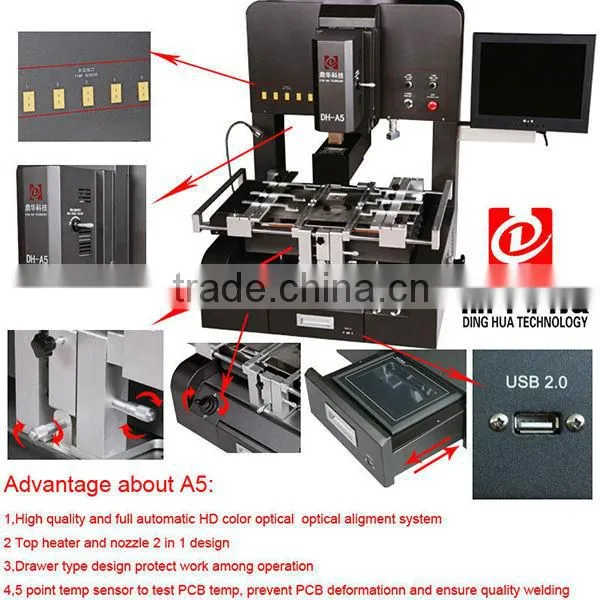

Advantage about A5;
1.High quality and full automatic HD color optical aligment system
2.Top heater and nozzle 2in 1 design

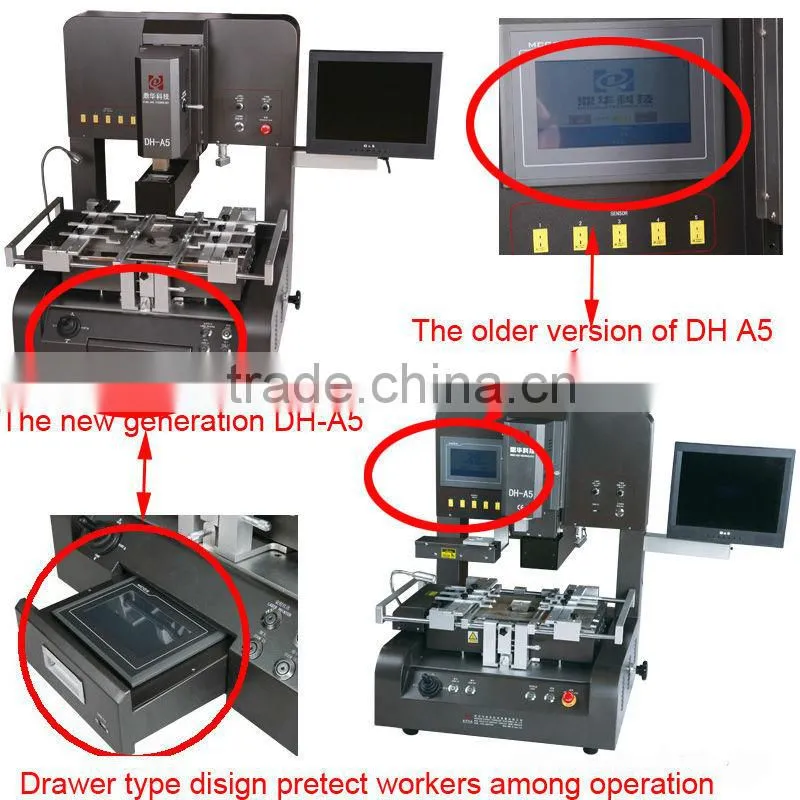

3.Drawer type design protect work among operation
4.5 point temp sensor to test PCB temp,prevent PCB deformation and ensure quality welding
Specification about Laser position system Automatic BGA Rework Station for PCB Chip
Power supply |
AC220V±10% 50/60Hz |
Power |
6700W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 3900W |
Temperature control |
K sensor closed loop control, independent heating |
Temperature accuracy |
±2°C |
Positioning |
V-groove PCB support, and with external universal fixture |
Workbench fine-tuning |
±15mm forward/backward,±15mm right/left |
Placement Accuracy |
±0.01MM |
PCB size |
Max 450*490 mm, Min 22*22 mm |
BGA chip |
80*80-2*2mm |
Minimum chip spacing |
0.15mm |
External temp Sensor |
5(optional) |
Machine dimension |
(L*W*H): 950*750*950mm |
Packing dimension |
(L*W*H): 110*90*110cm |
NW/GW |
approx 91/116 KG |
Main Features about Laser position system Automatic BGA Rework Station for PCB Chip
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with PLC and temperature module to enable precision temperature control of ±2 degree.
3.Servo system to realize the automatic to weld, mount and dismount. V-groove PCB can be adjusted in any direction with external universal fixture, suitable for all kinds of BGA repair. Adopt linear slide which makes X, Y, Z axis all can do micro adjust or rapid positioning with high precision and easy operation.
4.Flexible and removable universal fixture protects the PCB, prevents PCB components damage and deformation and adapt to all kinds of BGA size
5.Offer all kinds of hot-air nozzle, with 360degree rotation; easy to install and change, customized is available.
6.3 independent heaters, can control the temperature multiple sets at the same time with three heating area and ensure that different heater area will be have the best welding effect.
7.8 level up/down+8 constant temperature control, large storage space for temperature profiles, can operate curve analysis, setting and correction on the screen. And the three independent heaters use the independent PID ways to conrol the heating process.
8.High precision digital video registration system, al aspects to observe the four corner and middle of the BGA positioning.
9.8, Powerful cross flow fan cool for the PCB to prevent deformation. And internal vacuum pump, external vacuum pen to pick up the BGA chip more convenient.
10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.
11.CE certification, with emergency switch and automatic power-off protection device when emergency happens.
Paking list about Laser position system Automatic BGA Rework Station for PCB Chip
1, DH-A5 BGA rework station (touch screen) 1 set
2, Displaye 1 set
3, Vacuum sucker Pad 3 piece
4, DH-A5 specification(manual) 1 copy
5, Hot air nozzle 5 piece ( 31*31/38*38/41*41/34*34/55*55 )
6, Abnormity clip 6 piece
7, Blossom knob 6 piece
8, Supporting Screw 6 piece
9, External Temperature sensor 1 piece
More photo about Laser position system Automatic BGA Rework Station for PCB Chip
Photo about Packing

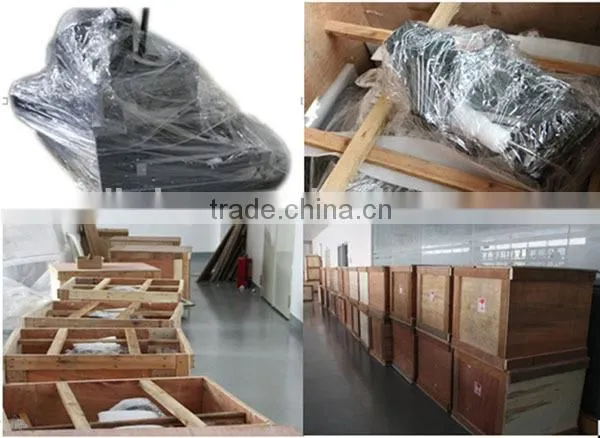

All of our machine will packed carefully with standard plywooden box, to protect it from transport
Photo about our Company
Photo about our Customer

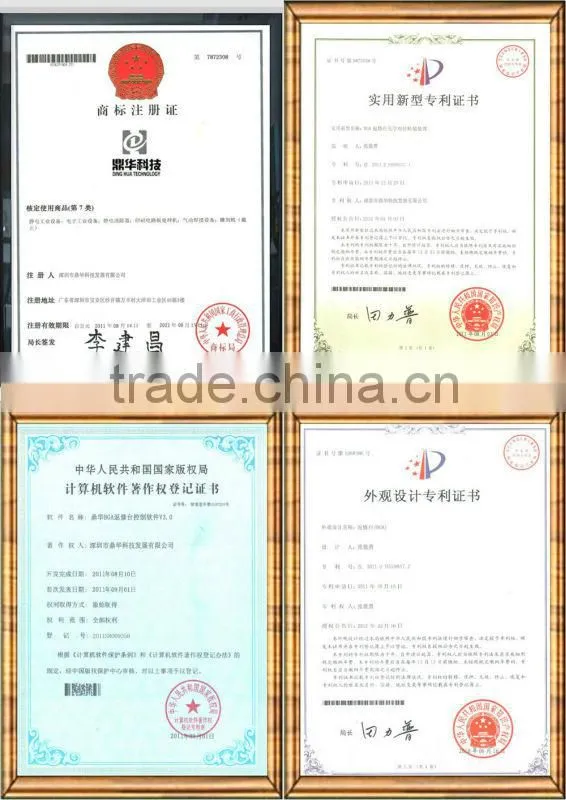

Photo about Certification
Why are we?
1, Well-equipped manufacturing facility.
2,Professionalism innovative R&D team, provide professional service for bga rework station solution.
3,Optimum performance,precision temperature control to ensure high rate of success for S&M. As we know, the performance of bga chip soldering and desoldering is high depends on the precise of the temerature. Our bga machine use PID control,the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature), but among the bga rework station industry, most of company just use the PID grab freqency is 30ms.

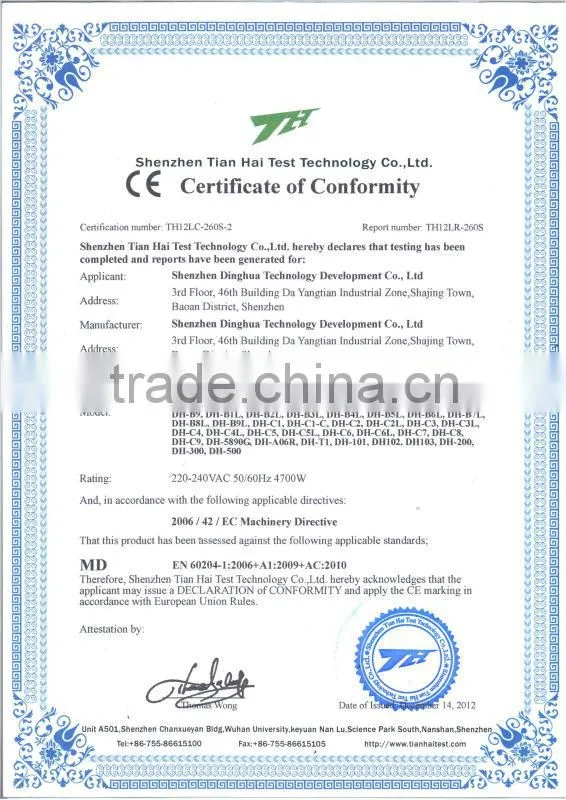

4,International quality standard range,all our product have got the CE, ISO 9001 2008,Rohs approval.
5,Competitive price. All our machine material select from world class brand (like Omega,SMC,CNB,GS, which is make us insure safer,comvenient speedily operation.
7,We supply 3 years warranty for this BGA rework station , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, life long technical support.
