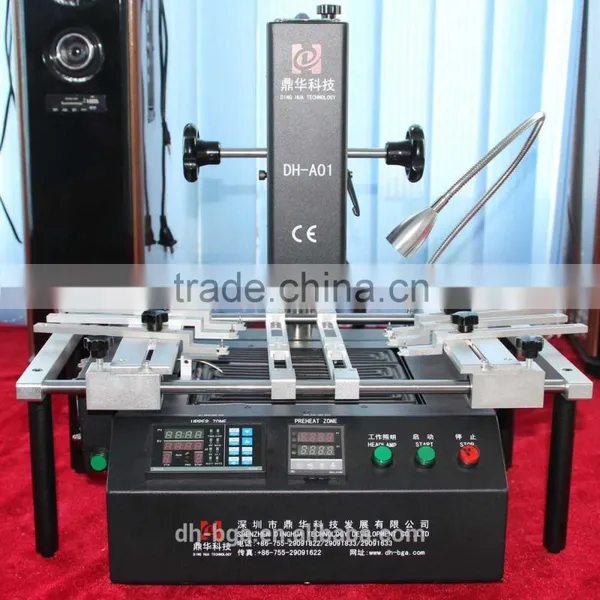

Dinghua laptop/mobile repair machine digital panel meter bga rework station bga rework equipment DH-A01
Specification of bga rework station DH-A01:
Total Power |
2600W |
Top heater |
800W |
Bottom heater |
1800W |
Power |
AC220V±10% 50/60Hz |

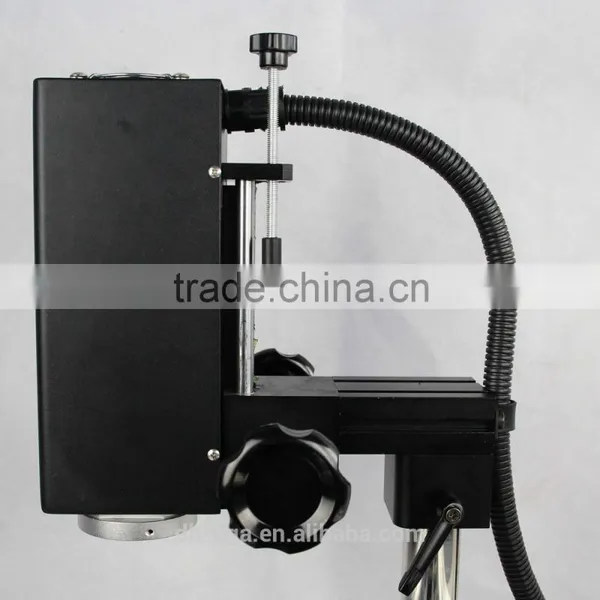

Top head movement |
Up / down, rotate freely |

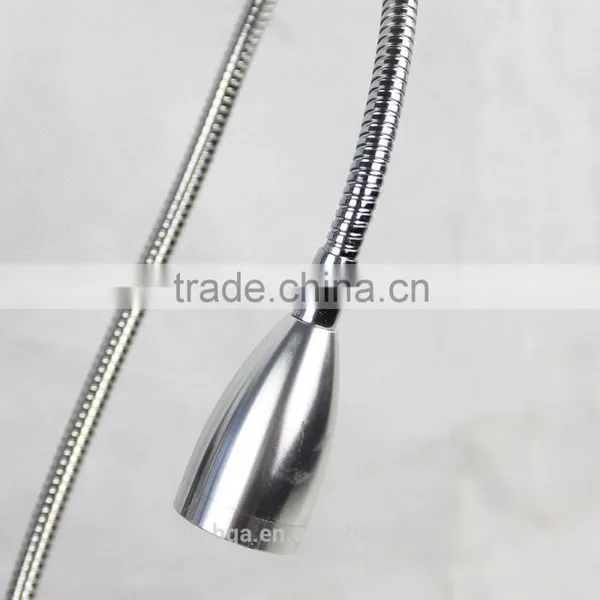

Lighting |
Taiwan led working light, any angle adjusted. |
Storage |
Store 10 groups of temperature profiles |
Positioning |
V-groove, PCB support can be adjusted in X, Y direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2℃ |
PCB size |
Max 290mm*310mm Min20mm*20mm |
BGA chip |
5*5~55*55 mm |
Minimum chip spacing |
0.15mm |
Dimensions |
L470*W370*H500 mm |
Net weight |
Approx 15KG |
Features for bga rework station DH-A01:

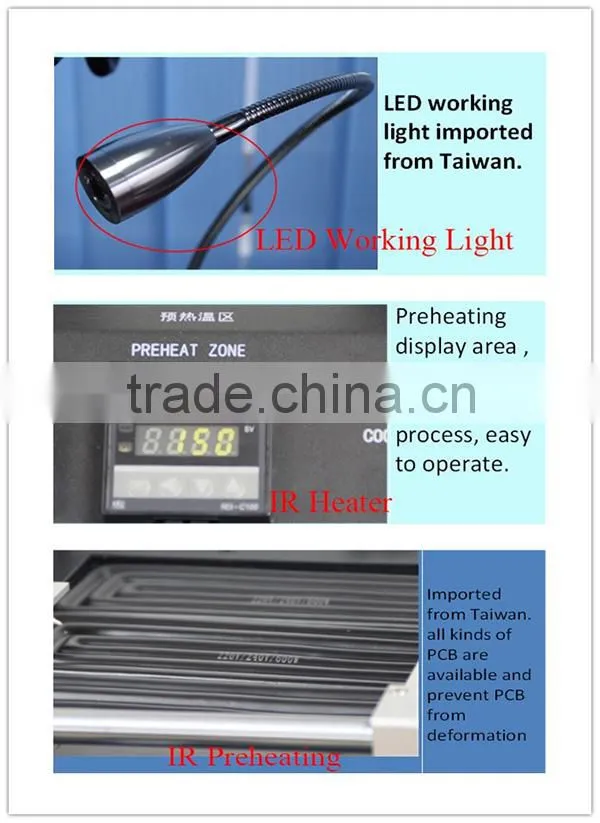

1.Adopt two-zone design: top hot iar heating, bottom ceramic infrared pre-heating zone.

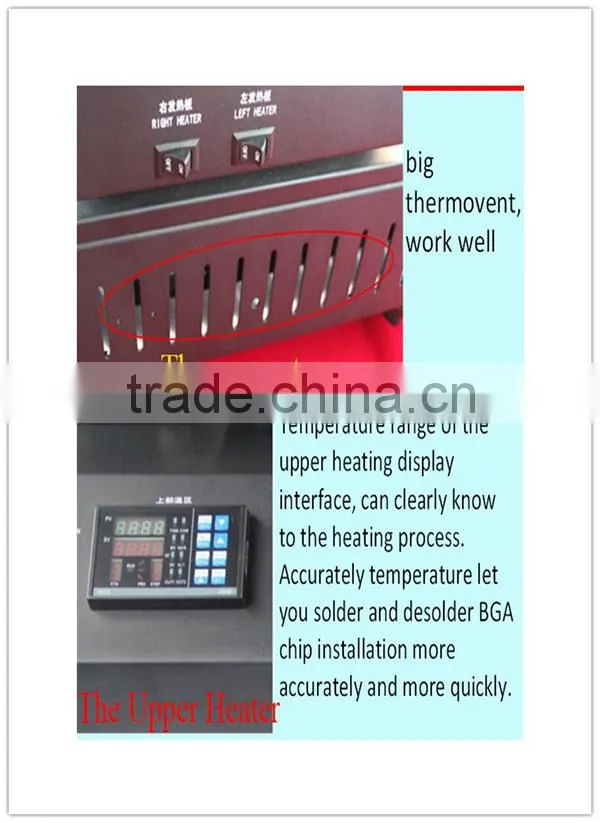

2.Two independent high precise digital panel meter controllers, can store 10 groups of temperature profiles. 8 segments (up/down) + 8 segments constant temperatures in one group.

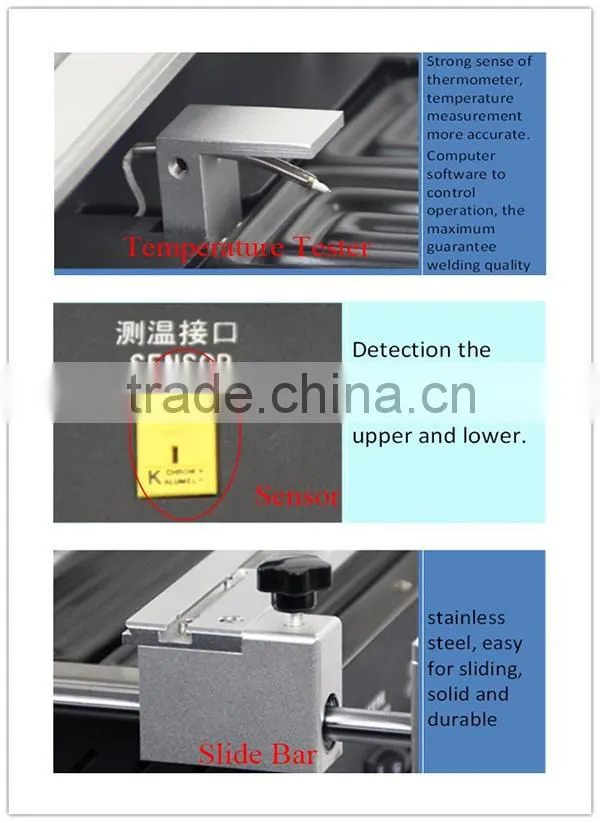

3.High precise K-type thermocouple close-loop control + automatic temperature compensation system to enable precise temperature deviation on ±2℃.

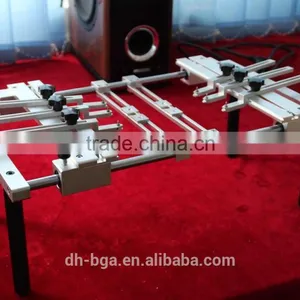

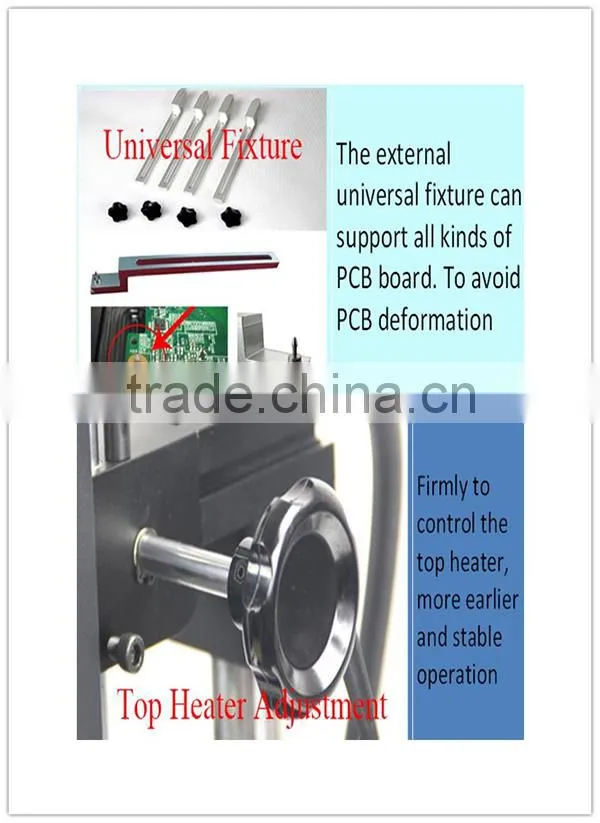

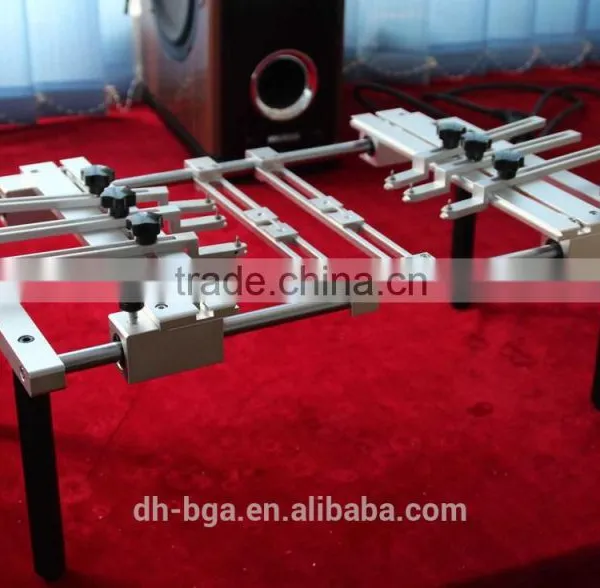

4.V-groove PCB table + universal fixture suitable for all kinds of PCB repairing, rapid, convenient and accurate positioning,
5.With powerful cooling fan, fast cooling for pcb and machine after heating.
6.With different size of magnet nozzles, easy replace and install, rotate freely 360°
7.With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time.
8.Double protection: Overheating guard + emergency stop function.
9.CE certification approval.
Certification:
Warranty:
Three years warrantyfor heater wires of machine, one year warranty for other parts. life long free technical support.(two years longer then other companies.)
As we know, heaters are the most important part in the machine. Heater wires are offered free in three year, other parts free in one year.
Our heater wires are imported from German, high quality and durable, enables us to offer a longer time warranty than other companies.
Our company:
| Our reception | Our showroom |
|
|
| Our workline | Our team |
|
|
Our customer:
Guarntee and sale-after service:
1. We provide you the friendly English User manual for free.
2. Videos of operating the machine are available.
3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the problems in 24 hours.
4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for technical support always.
