Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5

Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 thumbnail-1
Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 thumbnail-2
Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 thumbnail-3
Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 thumbnail-4
Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 thumbnail-5
Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 thumbnail-6
Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 photo-1
Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 photo-2
Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 photo-3
Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 photo-4
Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 photo-5
Dinghua Optical Laser Soldering Equipment for Mobile Manufactural DH-A5 photo-6
US$ 19,000 - 22,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DINGHUA
Model Number:
DH-A5
Contact Supplier Request Quote Chat Now
Shenzhen Dinghua Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DINGHUA
Model Number DH-A5
Voltage 220V ±10%
Current 20A
Dimensions L700*W700*H950mm
Weight 91kg
Usage laser soldering equipment for mobile manufactural
Certification CE, Rosh, ISO9001
After-sales Service Provided Overseas service center available

Dinghua Manufacturer

-- Professional, Quality, Honesty!

-- You win, We win!



Dinghua Optical laser soldering equipment for mobile manufactural DH-A5Dinghua Optical laser soldering equipment for mobile manufactural DH-A5Dinghua Optical laser soldering equipment for mobile manufactural DH-A5Dinghua Optical laser soldering equipment for mobile manufactural DH-A5



Dinghua Optical laser soldering equipment for mobile manufactural DH-A5



Dinghua Optical laser soldering equipment for mobile manufactural DH-A5Dinghua Optical laser soldering equipment for mobile manufactural DH-A5





DH-A5 Details and Warranty:





Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)







1. 2015 newest update: Bottom German quartz tube heating, fast temperature rising and cooling. With glass guard, prevent components from dropping.

Dinghua Optical laser soldering equipment for mobile manufactural DH-A5

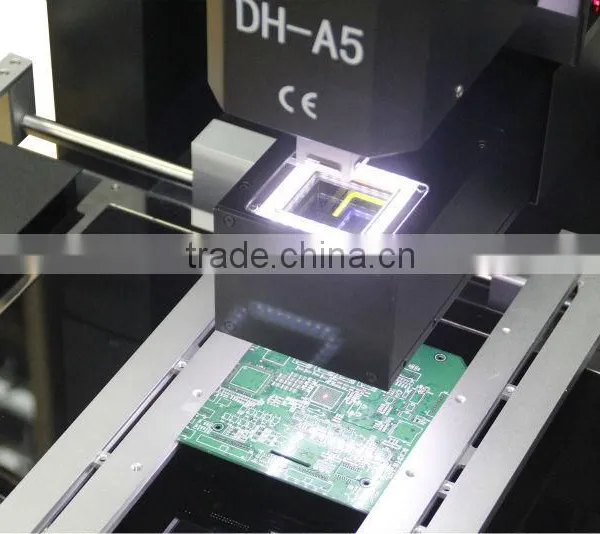

2. Optical alignment system, Panasonic Camera, temperature accuracy: ±0.01mm. Auto focus, auto magnification, auto color separation.  Camera lens can move frontward, backward automatic.

Dinghua Optical laser soldering equipment for mobile manufactural DH-A5

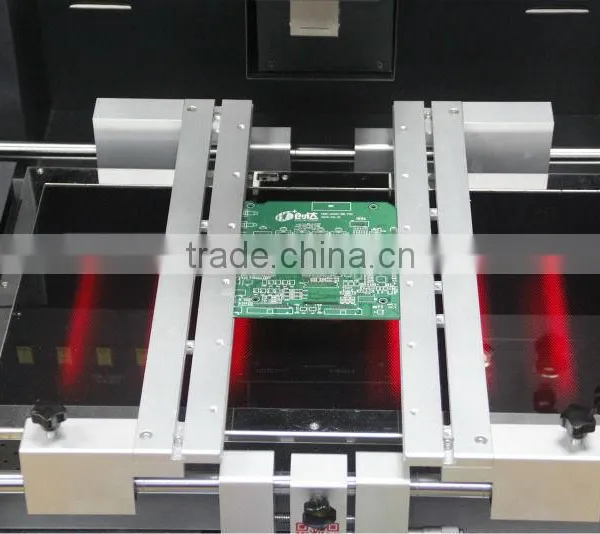

3. Laser positioning, laser point on the center of pcb, fast position of pcb, save time.

 Dinghua Optical laser soldering equipment for mobile manufactural DH-A5





4. Top air speed flow adjust function, special for tiny bga repairing. You can lower top air speed when tiny bga repair.

Dinghua Optical laser soldering equipment for mobile manufactural DH-A5

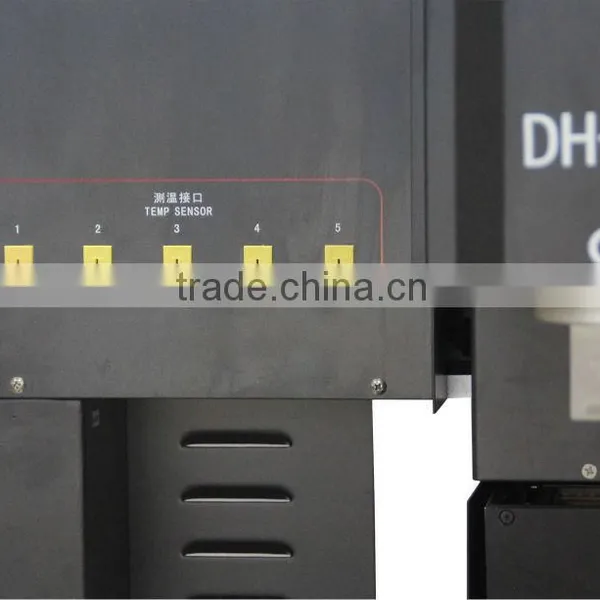

5. 5pcs temperature sensors on the machine, detect and observe all corners of actual temperatures of solder at a same time. Adjustment and correct temperature conveniently.

Dinghua Optical laser soldering equipment for mobile manufactural DH-A5







6. Automatic / manual:  Two modes in touch screen, free choose.

Dinghua Optical laser soldering equipment for mobile manufactural DH-A5









DH-A5 Specification:



Total Power

6800W

Top heater

1200W

Bottom heater

2nd 1200W, 3rd IR heater 4200W

Power

AC220V±10%     50Hz

Driver

Servo driver used. Fully automatic pick, placement, soldering and desoldering, cooling.

Operation mode

Two modes: manual and automatic.

HD touch screen, intelligent man-machine, digital system setting.

Bottom zone movement

Can be move 360 °

Optical CCD camera lens

Automatic Frontward / backward, right / left

Camera magnification

10x - 220x

Workbench fine-tuning:

±15mm forward/backward,  ±15mm right/left

BGA positioning

Laser position, fast and accurate position of pcb and bga

Top air speed

Can be adjusted by adjusting knob, prevent tiny bga from movement.

PCB Positioning

Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support”

+ V-groove pcb bracket + universal fixtures.

Temperature control

K sensor, close loop, PLC control, Servo driver

Placement accuracy:

±0.01mm

Temp accuracy

±1℃

Lighting

Taiwan led working light, any angle adjustable

Temperature profile storage

50000 groups

PCB size

Max 420×470 mm Min 22×22 mm

BGA chip

2x2 - 80x80 mm

Minimum chip spacing

0.15mm

External temper sensor

1pc

Dimensions

730x670x940mm

Net weight

91KG









Rework Spart parts available:
