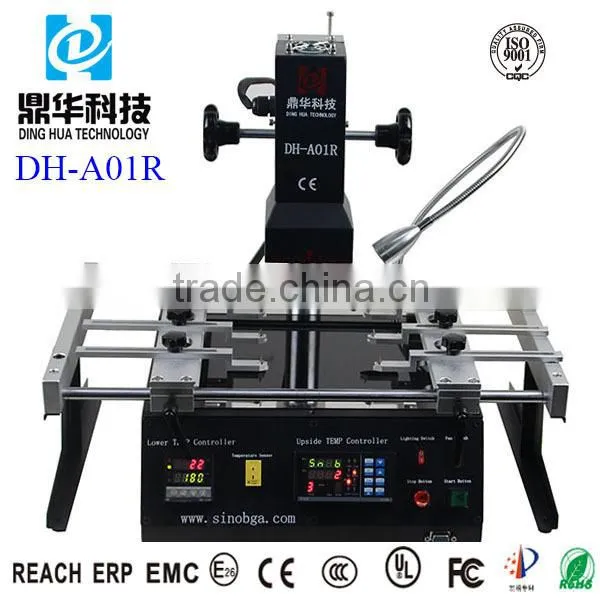

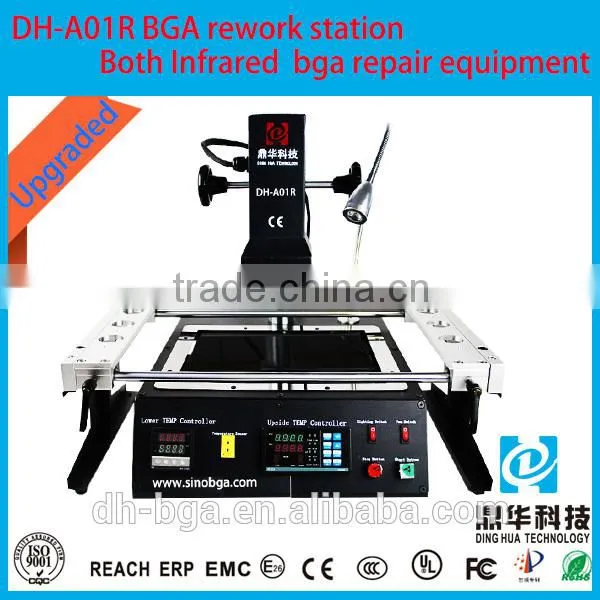

Dinghua DH-A01R BGA Rework Machine For repairing Laptop/TV/game console
>>>Specification:
Dinghua DH-A01R BGA Rework Machine For repairing Laptop/TV/game console
| Total power | 2800W |
| Top IR heater | 800W |
| Bottom IR heater | 1200W |
| Power | AC220V±10% 50/60Hz |
| Temperature accuracy | ±2°C |
| Positioning | V-groove, PCB support can be adjusted in X,Y direction and equipped with the external |
| PCB size | min 20x20mm, max 300x300mm |
| BGA chips | 5x5mm-55x55mm |
| Minimum chip spacing | 0.15mm |
| External temperature sensor | 1(optional) |
| N.W. | 17.5kg |
| Dimension | 410*470*525 |
| Suitable motherboards | mobile phone, laptop, desktop, PS3, XBOX360, game console,etc |
>>> Accessories:
-1 pcs user guide
-3 pcs upper nozzles (31mm, 38mm,41mm)
-1 piece manual vacuum pen
-6 pcs universal fixture
-6 pcs plug knob
-4 pcs supporting screw
-1 pcs tweezer
-1 pcs data line
-1 pcs curves CD
-1 pcs operate CD
>>> Advantages:
Dinghua DH-A01R BGA Rework Machine For repairing Laptop/TV/game console

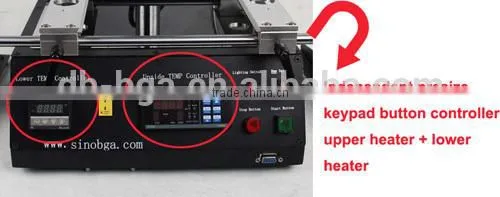

1. Two independent heaters all can set 8 segments heating,
2. K sensor close control, control heating process precisely.
3. Powerful cross flow fan helps cooling the PCB board fast and prevents it from deformation.

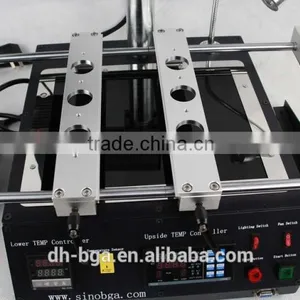

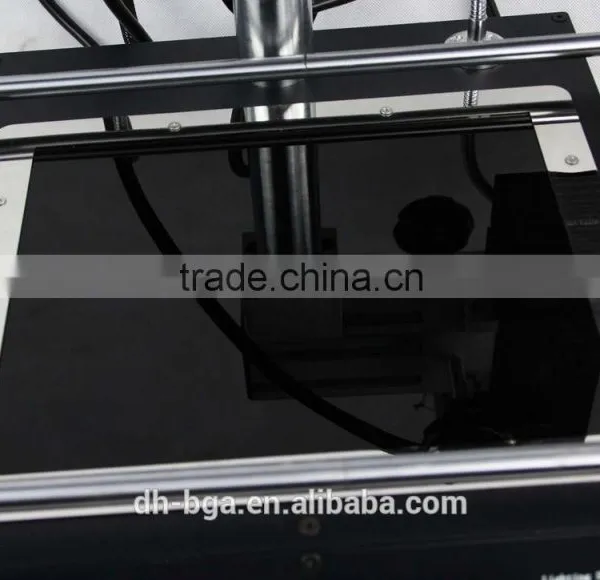

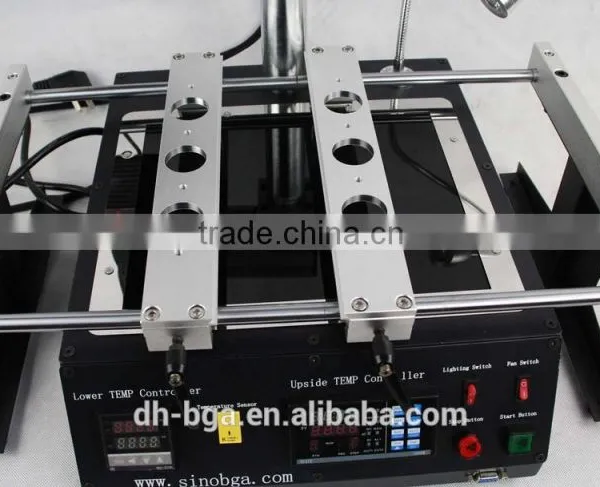

4. V-groove PCB supporter for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
5. Hot air nozzles can be adjusted in any direction.
6. CE certification

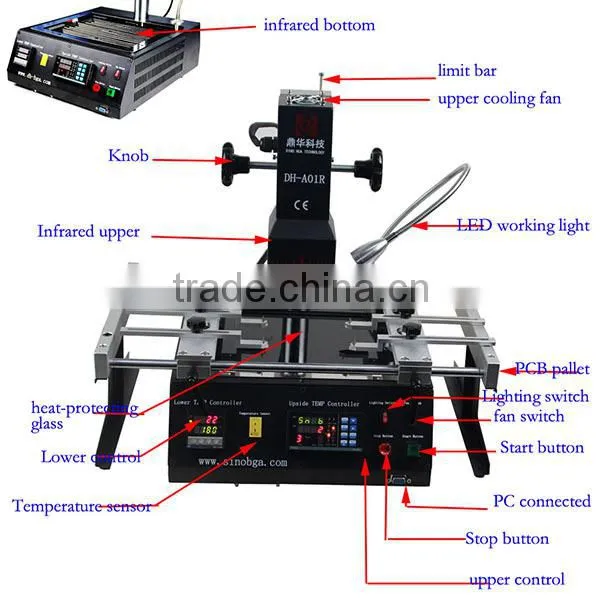

>>> Details:
Dinghua DH-A01R BGA Rework Machine For repairing Laptop/TV/game console
>>> certification:
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
