Dinghua Loca OCA Laminating Machine for Cell Phone Refurbished Tool

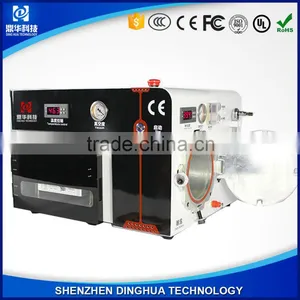

Dinghua Loca OCA Laminating Machine for Cell Phone Refurbished Tool thumbnail-1
Dinghua Loca OCA Laminating Machine for Cell Phone Refurbished Tool thumbnail-2
Dinghua Loca OCA Laminating Machine for Cell Phone Refurbished Tool thumbnail-3
Dinghua Loca OCA Laminating Machine for Cell Phone Refurbished Tool thumbnail-4
Dinghua Loca OCA Laminating Machine for Cell Phone Refurbished Tool photo-1
Dinghua Loca OCA Laminating Machine for Cell Phone Refurbished Tool photo-2
Dinghua Loca OCA Laminating Machine for Cell Phone Refurbished Tool photo-3
Dinghua Loca OCA Laminating Machine for Cell Phone Refurbished Tool photo-4
US$ 1,000 - 1,300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Dinghua
Contact Supplier Request Quote Chat Now
Shenzhen Dinghua Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Dinghua

Dinghua Manufacturer

-- Professional, quality, Honesty

-- Best supplier in China



Dinghua Loca OCA laminating machine for Cell phone refurbished toolDinghua Loca OCA laminating machine for Cell phone refurbished toolDinghua Loca OCA laminating machine for Cell phone refurbished toolDinghua Loca OCA laminating machine for Cell phone refurbished tool



Dinghua Loca OCA laminating machine for Cell phone refurbished tool



Dinghua Loca OCA laminating machine for Cell phone refurbished tool

 Dinghua Loca OCA laminating machine for Cell phone refurbished tool









DH OCA Laminator operation:





Warranty: One year for whole machine





1. put it on the mould,                                                         2. Attach LCD glass on the phone

 Dinghua Loca OCA laminating machine for Cell phone refurbished tool                Dinghua Loca OCA laminating machine for Cell phone refurbished tool







3. Place it on soft pad and put inside machine.        4. Close door and start

Dinghua Loca OCA laminating machine for Cell phone refurbished tool                  Dinghua Loca OCA laminating machine for Cell phone refurbished tool







5. After finish, take it out to bubble removal.      6. Unscrew the side door with handler.

Dinghua Loca OCA laminating machine for Cell phone refurbished tool                  Dinghua Loca OCA laminating machine for Cell phone refurbished tool









7. Put them inside, screw the door.                  8. Start bubble removal.

Dinghua Loca OCA laminating machine for Cell phone refurbished tool               Dinghua Loca OCA laminating machine for Cell phone refurbished tool









Specification:



Specification:

Machine driver: AC 220V  1500W

Working environment: 20-30 degree, clean and dust free

Lamination way: Flat-plate lamination type

Efficiency: 90s/1pcs(Separated lamination type), 1H/80pcs (defoaming assisted type)

Heating mode: constant temperature heating

Used size: All below 7" model

Device size: 535 * 425 * 355mm

Device weight (NT): 65kg

Device power: 800W





Defoaming parameters

Cavity size: H 180mm

Diameter 120mm (put into 15pcs 7-inch screen one-time)

Working temperature: Suggested set 35 C – 45 C (can be adjustable according to different OCA temperature)

Defoaming time: Suggested 8 - 10 minutes (it is best)





Features

*No mould, also can set to be no defoaming or defoaming assisted type to apporve the output

*No installation, can be working directly when plug in

*Don't need other auxiliary equipment,  such as vacuum pump, air compressor

*Used standard 6063 aluminum alloy for lamination, durable,  anti-corrosion and no deformation

*Debubblers cavity materials is 304 15mm stainless steel, safe

*Fitting and debubblers can be operated simultaneously,  improve efficiency

*The components are imported from Japan

*Simple one-touch operation

*Japan temperature control, temperature can be accurate to + / - 1C

*Intelligent constant pressure,  laminating and defoaming mode automatically switch

*Flat-plate form laminating, stable and even pressure, no bubble,  no indentation, easy transportation





Checking and para position

1. Check whether the tray is smooth

2. Check whether there is foreign body on the silicone pad

3. Use mould to align

4. Align the LCD and silicone pad (LCD is on the silicone pad,

and the IC is out of the silicone pad. Like the picture showing)

5. Put the aligned LCD assembly on the operating platform

6. If the cellphone with long flex cable, let the flex cable be outside of





Dinghua 2015 Fair:



Dinghua Loca OCA laminating machine for Cell phone refurbished tool
