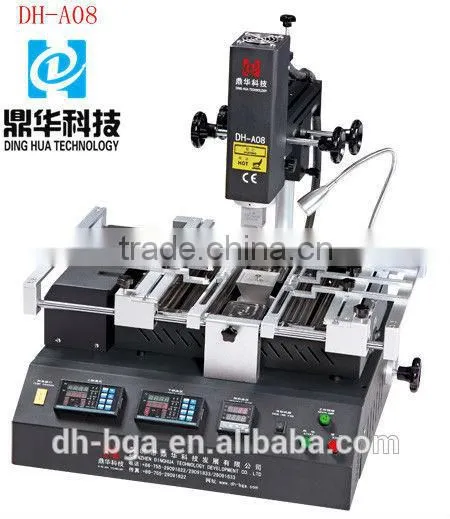

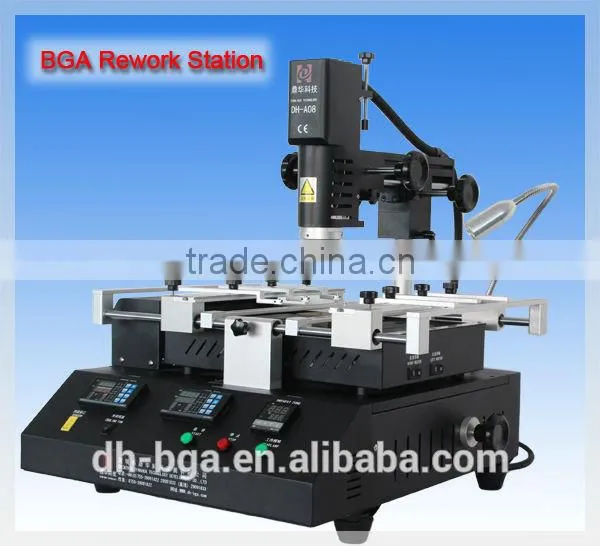

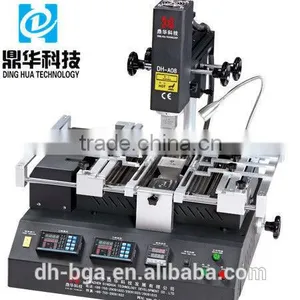

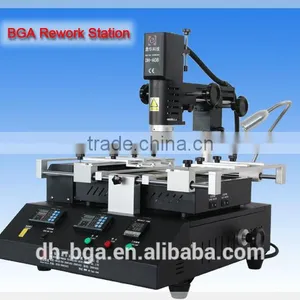

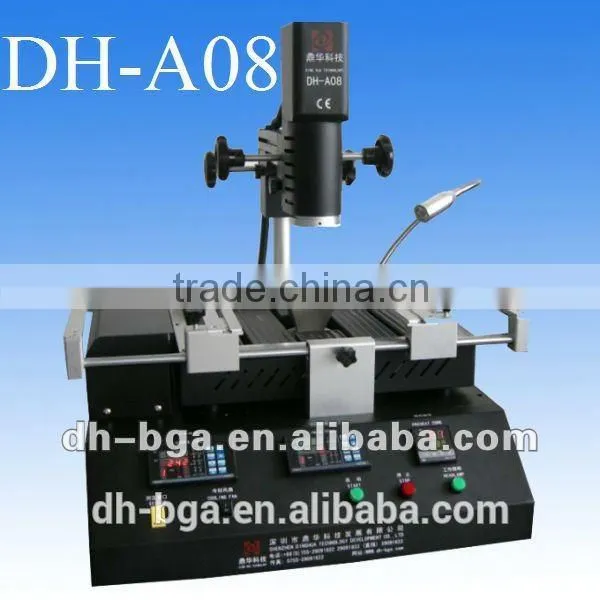

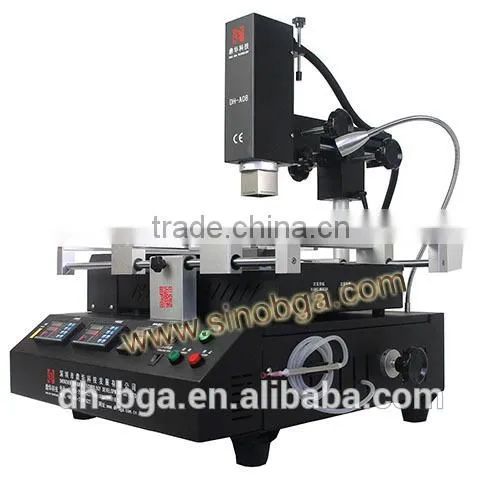

Dinghua DH-A08 BGA rework station repair system for soldering and desoldering chips
Specifications:
Power |
4800W |
Top heater |
Hot air 800W |
Bottom heater |
Hot air 1200W, Infrared 2700W |
Power supply |
AC220V±10% 50/60Hz |
Dimension |
L570*W600*H600mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K-type thermocouple, closed loop controlled |
Temp accuracy |
±2°C |
PCB size |
Max 360mm*350mm Min20mm*20mm |
BGA chip |
5*5~55*55mm |
Minimum chip spacing |
0.15mm |
Temperature Sensor |
1(optional) |
Net weight |
30kg |
DH-A08 Main Features:
lThree independent heaters all can set 8 segments heating, cooling and constant temperature, save up to ten temperature profiles. IR preheat area can be controlled according to PCB size
lK sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
lMoveable heater, easy to operate.
lHot air nozzles, 360 degree rotation, easy to install and replace, customized is available.

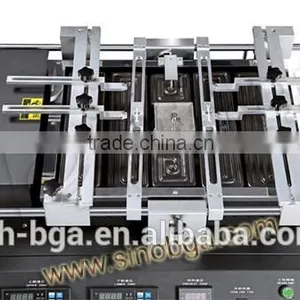

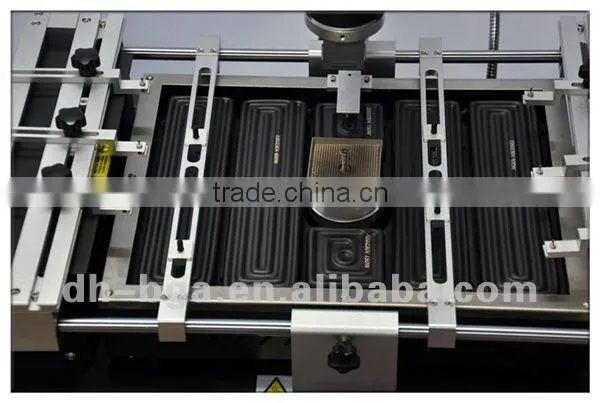

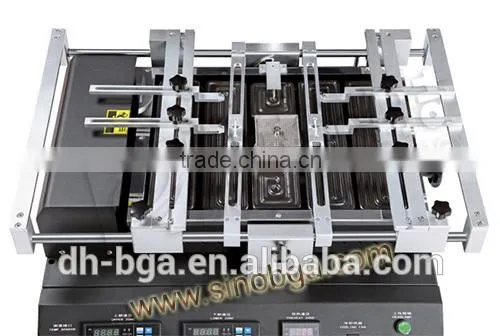

lV-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
lPowerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
lSound hint system. There is an alarm before the completion of each desoldering and soldering.
lCE certification, with emergency switch and automatic power-off protection device when emergency
Several details about DH-A08:

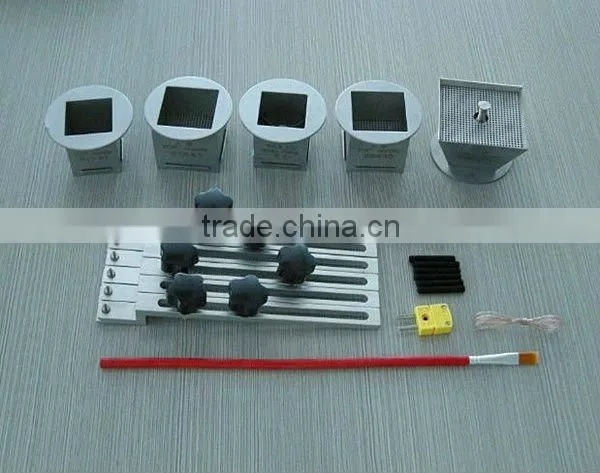

Accessories

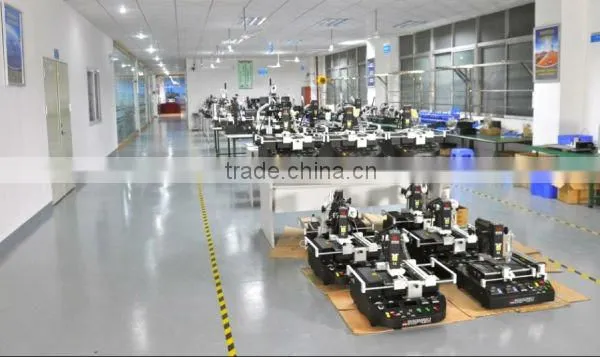

cleaning workshop and advanced machines

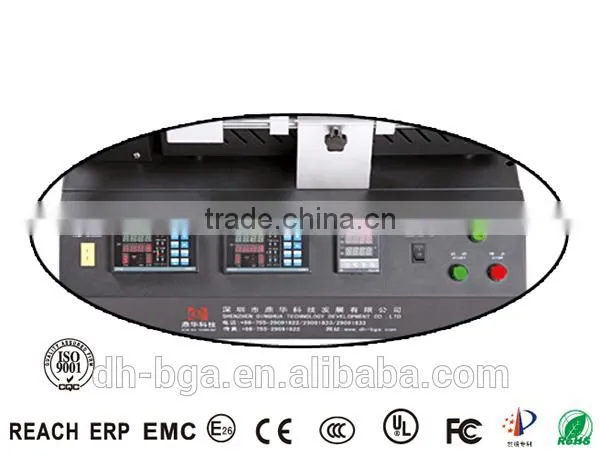

CE certification
