Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System

Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System thumbnail-1
Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System thumbnail-2
Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System thumbnail-3
Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System thumbnail-4
Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System thumbnail-5
Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System thumbnail-6
Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System photo-1
Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System photo-2
Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System photo-3
Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System photo-4
Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System photo-5
Dinghua DH- A09L Notebook Computer Motherboard Repair Machine Rework Equipment BGA Rework System photo-6
US$ 600 - 900 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DingHua
Model Number:
DH-A09L
Contact Supplier Request Quote Chat Now
Shenzhen Dinghua Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DingHua
Model Number DH-A09L
Voltage AC220V±10% / 110V 50/60Hz optional
Current 20A
Rated Capacity None
Rated Duty Cycle None
Dimensions 560x510x560mm
Weight approx 28 KG
Usage Notebook motherboard repairing
Certification CE ISO 9001 2008 ROHS
After-sales Service Provided Engineers available to service machinery overseas

Dinghua VGA BGA rework system Notebook Computer motherboard repair machine DH-A09L





Dinghua BGA rework station / motherboard repair machine are widely used to repair chipsets in Mobile phone, Laptop, Desktop, Micro SMD, Playstation, TV, Satellite receiver, MID, CCD camera, xbox360, ps3, etc. Soldering and Desoldering bga chip.





Features:
Special feature:
  • Imported heater, high quality, durable.
  • Taiwan infrared pre-heating ceramic plate.

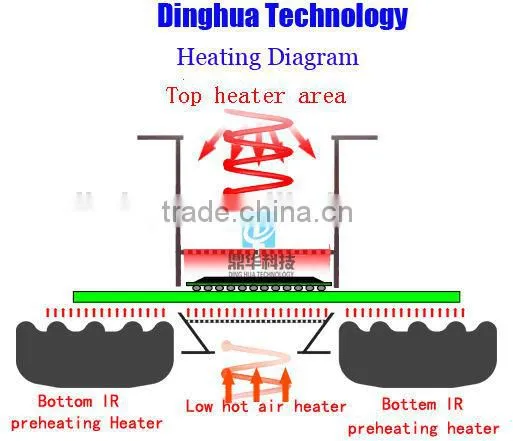

  • Adopt three heating zone, upper heater and lower heater are hot air, bottom is Infrared preheat zone. Digital meters controller.
  • K type close loop control, the temperature accuracy will be on ±2°C
  • Equipped with various different size nozzles, customized available.
  • High power cross flow cooling fan, prevent the PCB from deformation.
  • Sound hint system: there is voice reminder 5s-10s before the completion of heating,to get the operator prepared
  • security measure: overheat guard and emergency stop function
Humanized design:
  • Upper heater can move up/down, front/back, rotate freely
  • Strong sense of thermometer, temperature measurement more accurate
  • With a temperature sensor, analyse temperature and testing the actual temperature.
  • PCB clamp (V-groove) with universal fixture, suitable for all kinds of BGA.
  • It can set 8 segments heating, and store 10 groups temperature profile
  • Taiwan led working light.
  • Colorful buttons in English and Chinese, easy recognize and use
  • CE certification, with emergency switch and automatic power-off protection device when emergency happens

Application:

Suitable for all kinds of BGA repairing (CCGA,BGA,QFN, CSP,LGA,Micro SMD,MLF...)
Lead and Lead-free



Picture:



Details:

Dinghua DH- A09L Notebook Computer motherboard repair machine rework equipment BGA rework system

Dinghua DH- A09L Notebook Computer motherboard repair machine rework equipment BGA rework system

Dinghua DH- A09L Notebook Computer motherboard repair machine rework equipment BGA rework system

Dinghua DH- A09L Notebook Computer motherboard repair machine rework equipment BGA rework system

Warranty:
Three years warrantyfor heater wires of machine, one year warranty for other parts. life long free technical support.(two years longer then other companies.)

As we know, heaters are the most important part in the machine. Heater wires are offered free in three year, other parts free in one year.

Our heater wires are imported from German, high quality and durable, enables us to offer a longer time warranty than other companies.





Dinghua DH- A09L Notebook Computer motherboard repair machine rework equipment BGA rework system

Precise temperature control:

Why our machine more accurate?

1) Our machine use PID control, the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature, but for most of BGA rework station from other companies, their PID grab frequency is 30ms, this is a big difference between 10ms and 30ms, that's why our machine is more accurate.

2) Our technicians must do heating testing for five spot for a long time: four corner and central. however, other companies only do it for central spot. So temperature accuracy of their machines will be on 3℃~5℃, that will be lower successful rate of repairing.



Dinghua DH- A09L Notebook Computer motherboard repair machine rework equipment BGA rework system

Dinghua DH- A09L Notebook Computer motherboard repair machine rework equipment BGA rework system

Certifacation:

Dinghua DH- A09L Notebook Computer motherboard repair machine rework equipment BGA rework system
Package:

Dinghua DH- A09L Notebook Computer motherboard repair machine rework equipment BGA rework system
About us:


Dinghua DH- A09L Notebook Computer motherboard repair machine rework equipment BGA rework system

Dinghua DH- A09L Notebook Computer motherboard repair machine rework equipment BGA rework system





Guarntee and sale-afte:

1. We provide you the friendly English User manual for free.

2. Videos of operating the machine are available.
3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the     problems in 24 hours.

4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for           technical support always.



The video link:


A09L: /watch?v=HybIzdsnt4A



 Thank you for your time!
