Help CenterOutdoor 1 Pair Subscriber Connector Unit dp Box for STB Module With Over Voltage Protection
Related Products
-
Sample Free Outdoor 10 Pair Distribution Point DP Box for STB Module Without Protection From China Factory TAEPOUS$ 8 - 10MOQ: 1000 Pieces -
Sample Free Outdoor 20 Pairs Telephone 1B 11 Distribution Point DP Box for LSA Module From China Factory TAEPOUS$ 7 - 9MOQ: 1000 Pieces
-
Outdoor 20 Pairs Terminal Box for STUB Module With Protection From China Factory TAEPOUS$ 38 - 45MOQ: 1000 Pieces
-
Horizontal Type Mechanical Sealing 50 Pairs to Max 600 Pairs Copper Aerial Closure From China Manufacturer TAEPO for SaleUS$ 3.5 - 11MOQ: 200 Pieces
-
Indoor 100 Pair Telecom dp Box for Krone Module With Good PriceUS$ 7 - 9MOQ: 200 Pieces
Service & Certificate
Descriptions

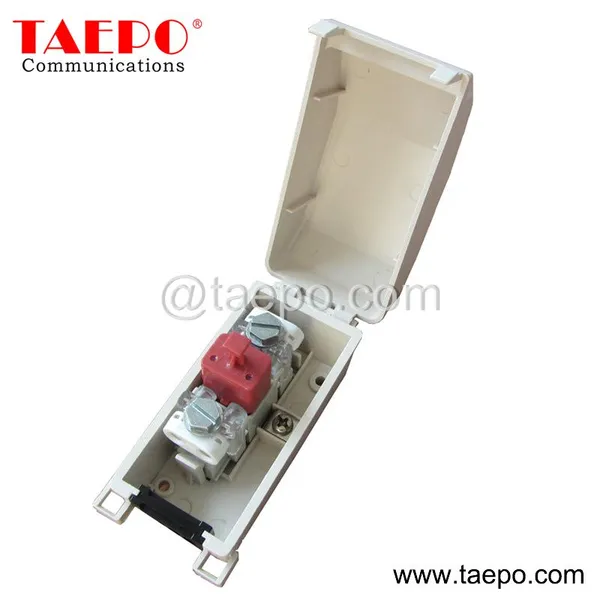

Outdoor 1 pair subscriber connector unit (TP-1710-1MG) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.
The STB module also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.
It is equipped with GDT (Gas Discharge Tube) arrester in side the plug-in module, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage and over current, for mainly as follows:
The surge voltage caused by lightning on or around the outside lines.
The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.
The outside line directly collides against a 220 V power line.
It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.
Main Features
Insulation Displacement Connection
No wire-stripping, screw and solder free
Reliable connections
Clear labeling
Modular design and installations
Gas tight connection
One push wire insertion
Robust long-term environmental stability
Flexible indoor and outdoor use
Wall or pole mountable
Quick mounting and installation
Schematic Diagrams

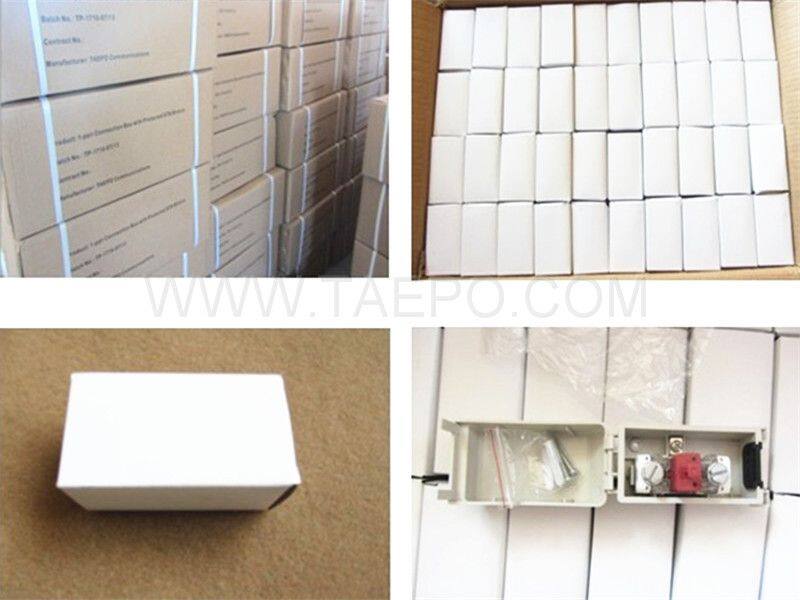

Packing Pictures
Order Data
| Item NO | Descriptions |
| TP-1710-1MG | Outdoor 1 pair subscriber connector unit for STB module, 91x46x51mm, snap-on locking, plastic housing, with STB module with over-voltage protection |
