Descriptions
20 pairs Distribution point box / 20 pairs DP box(TP-1708-20B) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.
This 20 pairs box can be installed with 10 pairs LSA disconnection module which is highly reliable and cost-effective wire connection system for modern telecommunications and data networks. This module adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.
Main Features
Insulation Displacement Connection
No wire-stripping, screw and solder free
Reliable connections
Clear labeling
Modular design and installations
Gas tight connection
One push wire insertion
Robust long-term environmental stability
Flexible indoor and outdoor use
Wall or pole mountable
Quick mounting and installation

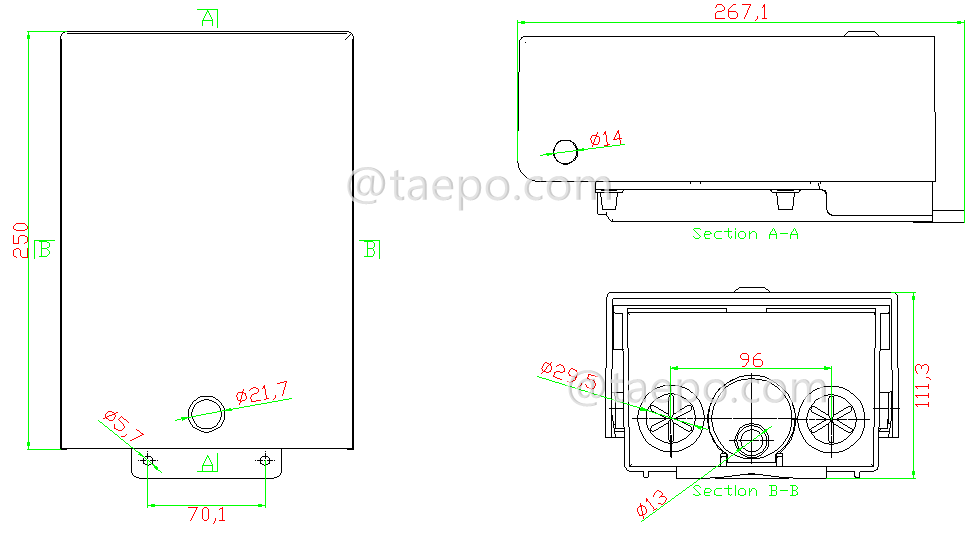

Schematic Diagrams
Packing Pictures
Order Data
| Item No | Descriptions |
| TP-1708-20B | Outdoor 20 pairs connection box 1B 11 for LSA module, 250x175x111mm, RFP housing, with back mount frame, without LSA module, lock |
