Descriptions

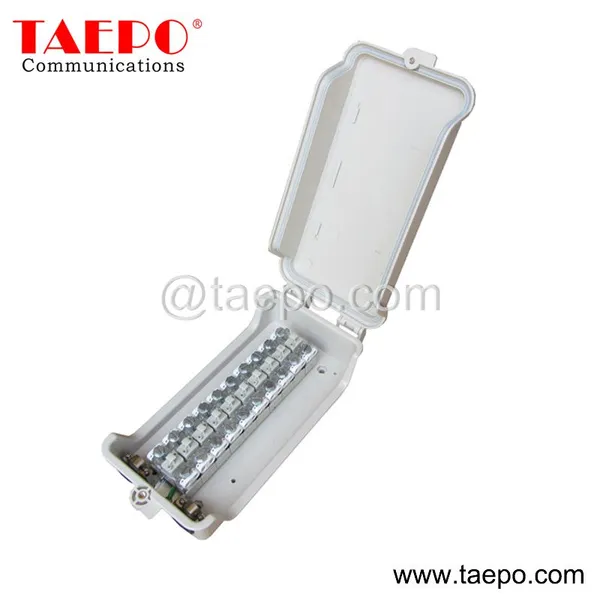

TP-1712-10LM distribution point box (DP box) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.
The STB module also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.
It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.
The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required. The small footprint (2 cm wide) ensures a compact product.
Main Features
Insulation Displacement Connection
No wire-stripping, screw and solder free
Reliable connections
Clear labeling
Modular design and installations
Gas tight connection
One push wire insertion
Robust long-term environmental stability
Flexible indoor and outdoor use
Wall or pole mountable
Quick mounting and installation

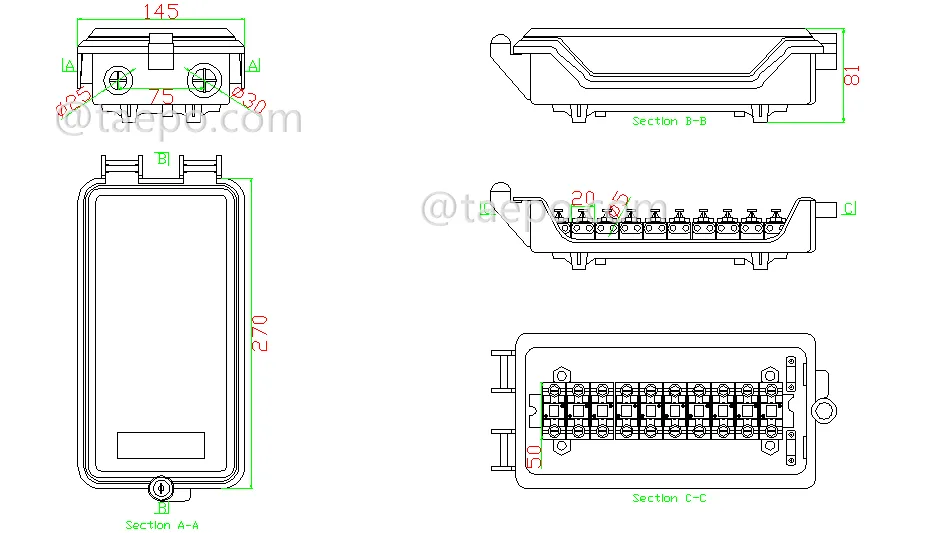

Schematic Diagrams

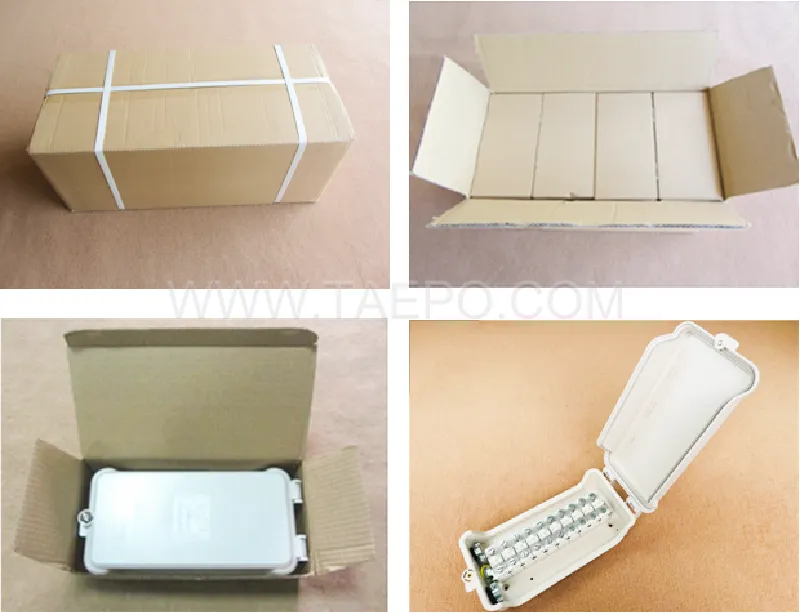

Packing Pictures
Order Data
| Item No | Descriptions |
| TP-1712-10LM | Outdoor 10 pairs distribution point box for STB module, 270x145x81mm, screw locking, plastic housing, with STB module without protection. |
