TAEPO -Your Professional DP Box Manufacturer in China !
Series of Indoor DP boxes, Get the Competitive Price from TAEPO Now!
Descriptions
What is a Indoor DP Box?

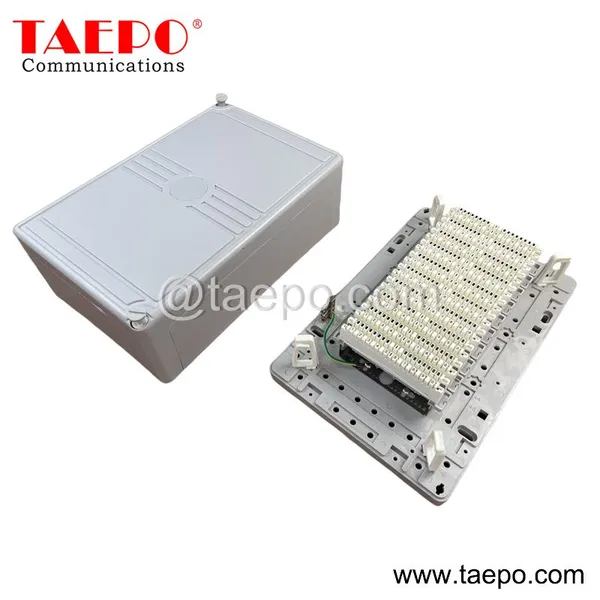

100 pair indoor DP box (TP-1703-100) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.
This 100 pairs dp box can be installed with 10 pairs LSA disconnection module which is highly reliable and cost-effective wire connection system for modern telecommunications and data networks. This module adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.
Main Features
Insulation Displacement Connection
No wire-stripping, screw and solder free
Reliable connections
Clear labeling
Modular design and installations
Gas tight connection
One push wire insertion
Robust long-term environmental stability
Wall or pole mountable
Quick mounting and installation

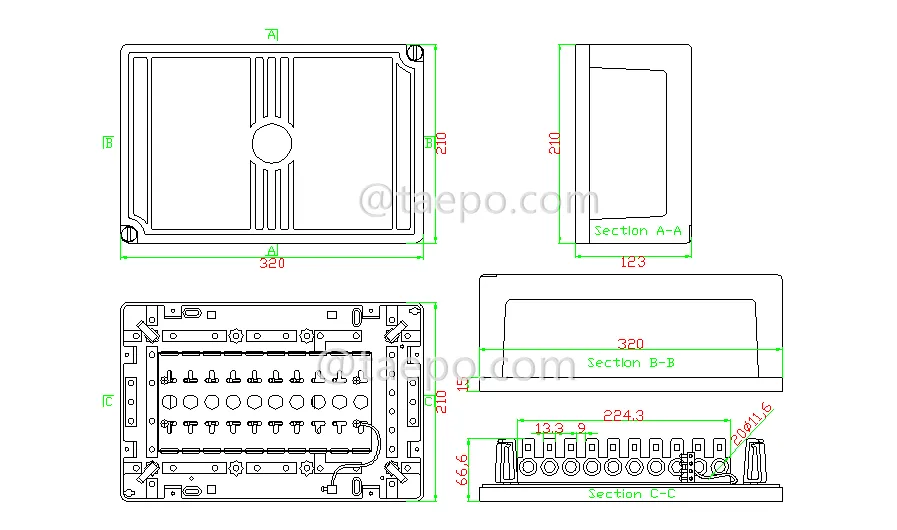

Schematic Diagrams

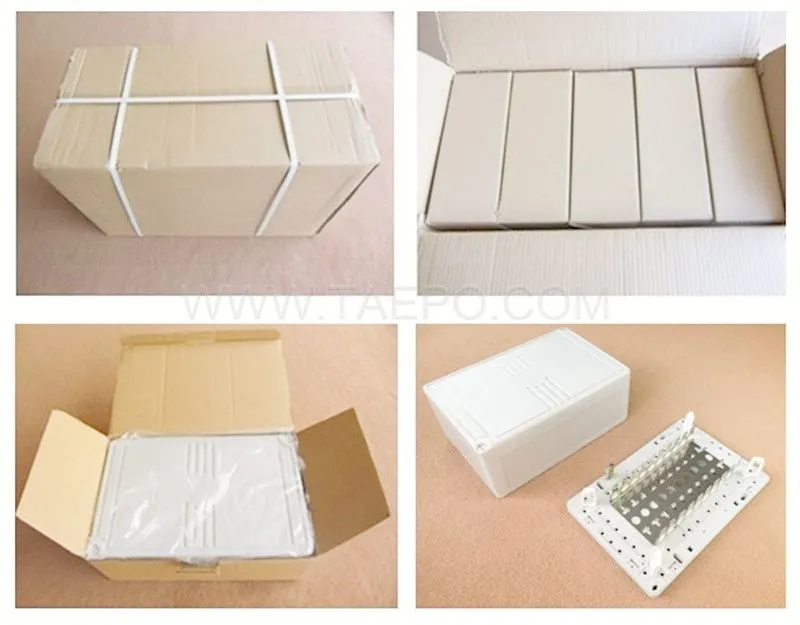

Packing Pictures
Order Data
| Item NO | Descriptions |
| TP-1703-100 | Indoor 100 pairs distribution point box for LSA module, 320x210x123mm, screw locking, plastic housing, with back mount frame, without LSA module |
