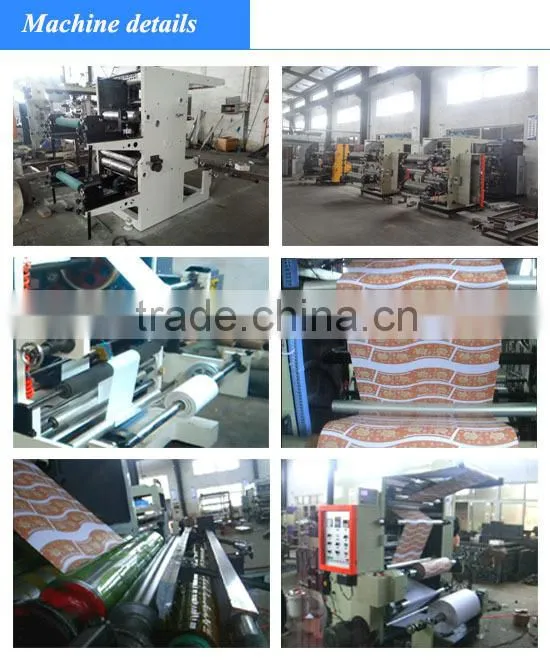

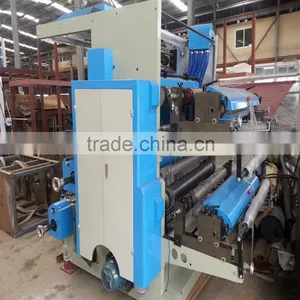

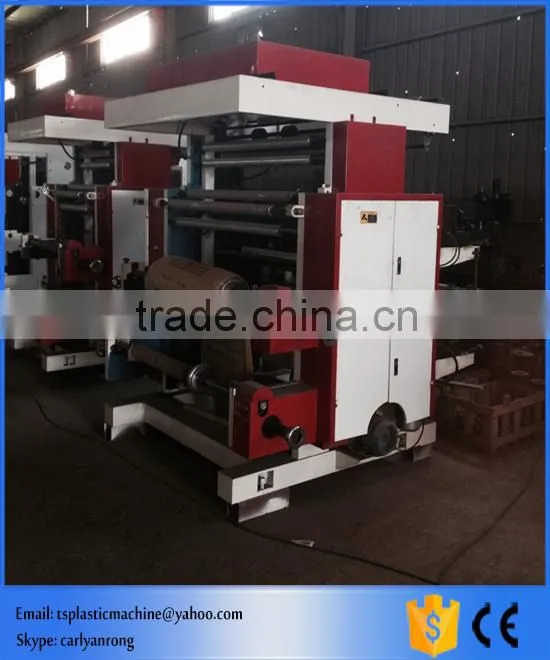

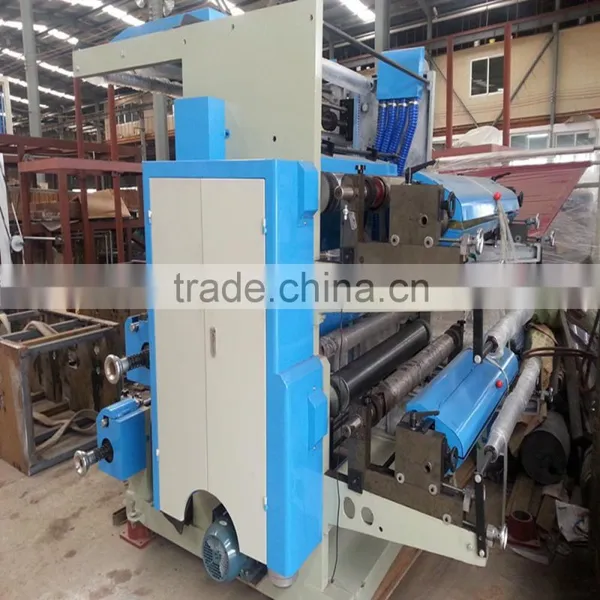

two colors/coulors flexographic printing machine
Usage: |
This two colors/colours flexographic printing machine is suitable for printing such materials as polyethylene, polypropylene plastic bag, like T-shirt shopping bags, cloth bags, etc. |
Colors: |
2 colors |
Material: |
Plastic film in roll, paper in roll, non-woven in roll, ect. |
two colors flexographic printing machine
Model |
YT-2600 |
YT-2800 |
YT-21000 |
YT-21200 |
Material |
Plastic film rolls, paper rolls, non-woven rolls etc. |
|||
Material feeding width |
600mm |
800mm |
1000mm |
1200mm |
Max printing width |
560mm |
760mm |
960mm |
1160mm |
Printing length |
180-960mm |
|||
Printing speed |
5-50m/min |
|||
Mechanical speed |
60m/min |
|||
Printing plate lifting method |
Manual/pneumatic/hydraulic |
|||
Plate thickness |
2.38mm |
|||
Anilox cylinder |
Metal |
|||
Printing cylinder with machine |
100-400mm one set |
|||
Register precision |
±0.35mm |
|||
Max rewind and unwind diameter |
450mm |
|||
Power of main motor |
2.2kw |
2.2kw |
2.5kw |
2.5kw |
Heating power |
7kw |
7kw |
8kw |
8kw |
Blower of heating |
0.75kw and 0.55kw |
|||
Inking motor |
0.55kw |
|||
Machine weight |
1800kg |
2000kg |
2300kg |
2600kg |
Machine dimension(L)*(W)*(H) |
2.3*1.7*2.2m |
2.3*1.9*2.2m |
2.3*2.1*2.2m |
2.3*2.3*2.2m |
Voltage of machine |
380V, 3phase, 50Hz |
|||
two colours flexographic printing machine
Features of two colors flexographic printing machine |
1.Easy operation, flexible starting, and accurate color register. |
|
2.The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off. |
3.Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting. |
4.The printing ink is spread by the knurled cylinder with even ink color. |
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops. |
6.360° continuous and adjustable longitudinal register devices. |
7.The imported frequency control of motor speed adapts to different printing speeds. |
8.There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed. |
two colors flexographic printing machine
link for more printing machine
In order to quote you exact printing machine, please offer us following details: |
1-How many colors do you want? |
2-What is the printing width you need? |
3-Please send me photos of the logo you will print? |
