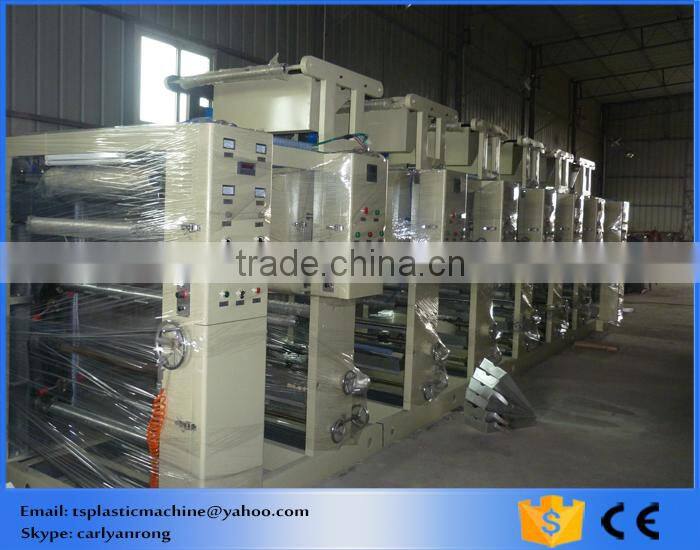

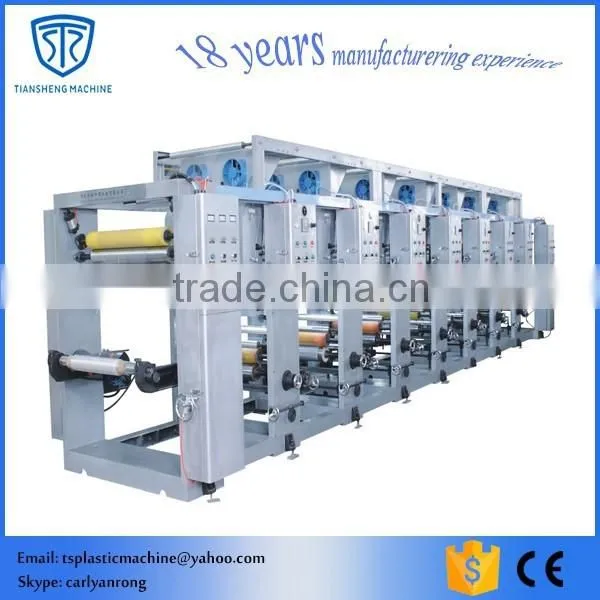

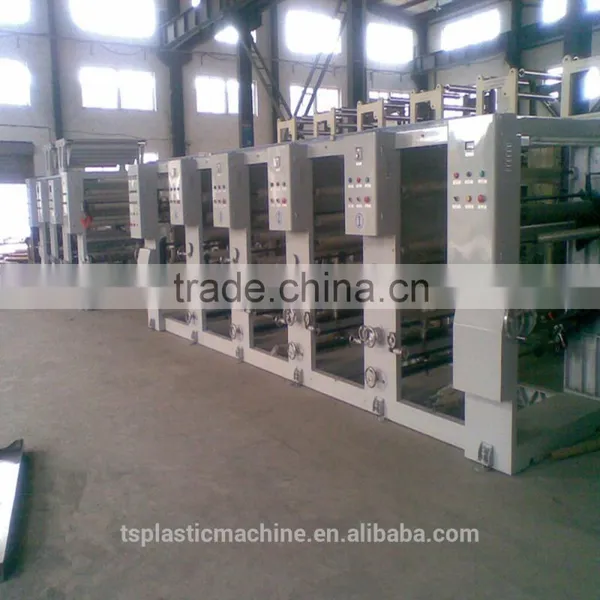

Multi-colors gravure printing machine, gravure printer, gravure printing press
| Usage: | This gravure printing machine is suitable for BOPP, PET, PVC, PE, Rolling Paper etc. with good printing performance of rolling material for multicolor continuous printing. |
| Colors: | 1-8colors |
| Material: | Plastic film in roll, paper in roll, non-woven in roll, ect. |
Model |
ASY-600 |
ASY-800 |
ASY-1000 |
Printing colors |
1-8 colors |
1-8 colors |
1-8 colors |
Effective Printing Width |
600mm |
800mm |
1000mm |
Max.Width of Web |
620mm |
820mm |
1020mm |
Max.Printing Speed |
60m/min |
60m/min |
60m/min |
Max.Mechanical Speed |
80 m/min |
80 m/min |
80 m/min |
Max.Diameter of Unwind/Rewind |
500mm |
500mm |
500mm |
Inside Diameter of Roll Core |
76mm |
76mm |
76mm |
Diameter of Printing Cylinder |
100~350mm |
100~350mm |
100~350mm |
Accuracy of Registration |
≤0.2mm |
≤0.2mm |
≤0.2mm |
Drying method |
Electric heating |
Electric heating |
Electric heating |
Heating Power of Oven |
28.2Kw |
36Kw |
43.2Kw |
Total Power |
31Kw |
43.5Kw |
54Kw |
Weight of Machine |
6500kg |
7000kg |
7500kg |
Overall Dimension(L*W*H) |
8500*2000*2200mm |
8500*2200*2200mm |
8500*2400*2200mm |
Voltage of machine |
380V, 3phase, 50Hz |
||
gravure printing machine, gravure printing press
Features of gravure printing machine |
1.This is machine is Composite style, increased or decreased according to the customer’s requirement. |
2.The main transmission system adopts speed-adjusting motor to control the speed. |
3.It can realize printing in single-side, dual-side, multi-colors, and has function of meter counting. |
|
4.The material receiving , the traction of material receiving and feeding adopt moment motor, while material feeding adopts magnetic powder breaker. |
5.The ink circulates automatically with the ink pump. |
|
6.The dry system adopts dual oven tunnel. The up-and down oven of each printing unit adopts centrifugal blower to bring in the air. It is of cast iron chassis and to dry the materials 50 per minute. The temperature of oven can be adjusted and controlled automatically. |
|
7.the position of ink scraper can be adjusted freely up and down, pre and post. And it adopts horizontal movement repeatedly. |
|
8.The material receiving and material feeding device adopt reversal dual station to realize feeding and receiving materials without stopping the machine. |
9.The rubber roller adopts manual pressure. |
|
10.Printing cylinder correcting adopts differential transmission device. The printing cylinder can be adjusted in 360 degrees vertically freely. Its horizontal adjustment scope is 30mm. |
link for more printing machines
In order to quote you exact printing machine, please offer us following details: |
1-How many colors do you want? |
2-What is the printing width you need? |
3-Please send me photos of the logo you will print? |
OUR SERVICE:
1. Installation Services
Installation Services are available with all our new machines. We can send our technician
to your factory to help you install your purchased machines from our factory. Of course,
your factory need to supply the round trip tickets food, hotel and salary to our technician.
2. Clients Training Services
We advise each customer can send your own technician come to our factory to learn how
to operate our machines. We will let our technician teach and train your technician hand by
hand till he can operate our machine by himself.
3. After Sales Service
Our machine guarantee time is one year.
We will send many easy broken spare parts in the tool box together with machines.
If any parts broken, please take a pictures or a videos to us.
