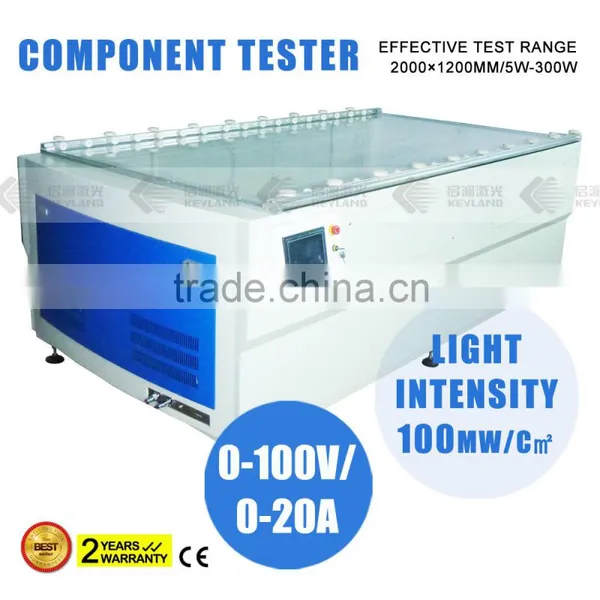

Keyland Am 1.5 Solar Photovoltaic Simulator

Name: Keyland Am 1.5 Solar Photovoltaic Simulator
Brand: Keyland Solar
Price: USD $3,000 - 12,000 / Set

FOB Price

USD $3,000 - $12,000 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Shanghai /Shenzhen/ To be appointed
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	Keyland Solar	Model Number:	GTM-AAB /AAA
Specification:	Normal	Application:	Industrial	Output Voltage (V):	110V/220V
Load Power (W):	Depend	Solar Power (W):	1W-300W	Work Time (h):	24 Hours

Packaging Details

standard plywood packaging with aluminum strip for seafreight

Product Description

Keyland Manufacturer Grade AAB AAA

Am 1.5 Solar Photovoltaic Simulator

Also Called :Solar Modules Test Machine/Sun Simulator/ solar panel flash tester/I-V PV tester/ xenon lamp solar simulator/ solar panel simulator/ solar system simulator

Solar Photovoltaic Simulator used in:

1.Solar Panel Production Line

2. University /Lab ./ Research Institute and etc

What are Solar Photovoltaic Simulator for :

Mainly used in automatic test and result record of solar mono-Si, poly-Si and a-Si cell module's Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh ( Electrical performance test)

**Keyland offers custom large area Sun Simulator Solar Flasher for testing, thin film (both CdTe and CIGS).

Solar Photovoltaic Simulator 's Technology characters:

• A grade spectrum

• A grade unevenness degree of irradiance

• A grade instability of irradiance

• Flash pulse 10~30ms, continuous adjustable (100ms for customized)

• 4-line survey,14-bit 4-channel high-speed synchronous acquisition.

•10 parameters display

• 8000 data collecting dots

•Irradiance&Temperature compensating automatically

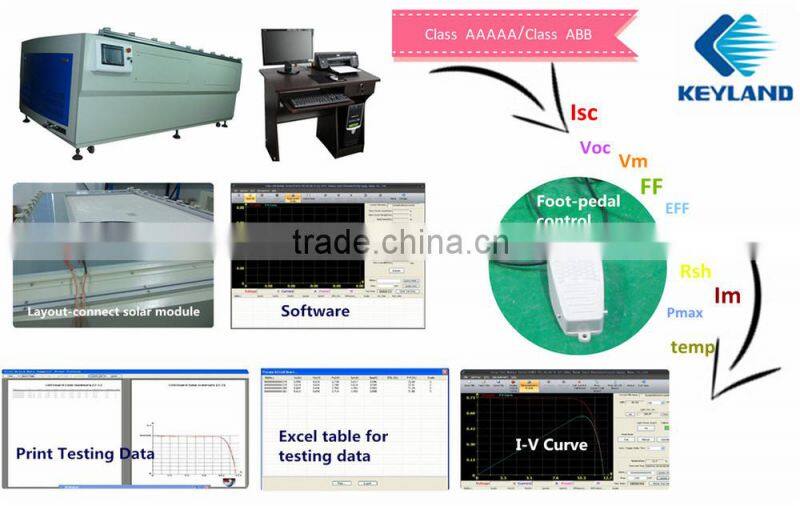

•Measurement parameter displays in tabulation and graphic way;

•Voice counts off and prompts;

•Counting prompt of flash times;

•24hrs continuous working;

•Working life of imported xenon lamp is 300, 000 times of flash

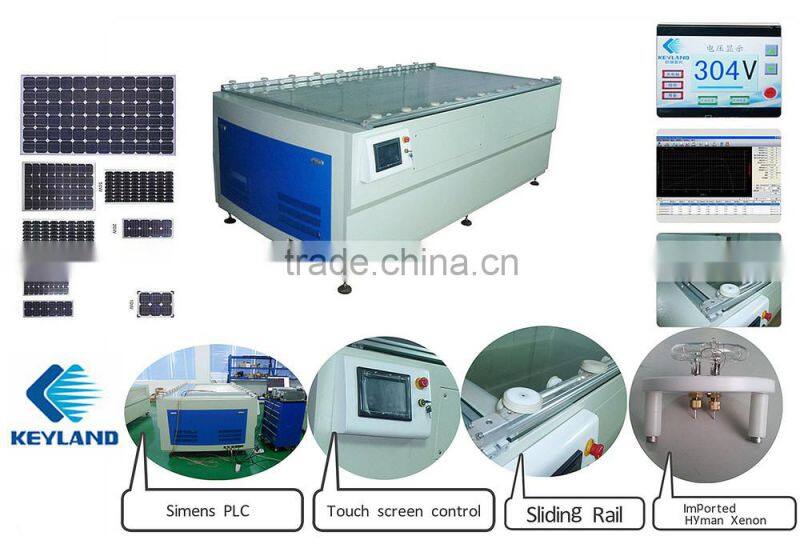

• Imported PLC control System

*Test Parameter : Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh.

(Software main interface)

(Exported EXCEL Document)

Type specifications	GTM-5A	GTM-ABB
Lamp spectrum	In line with IEC60904-9 and JISC8933( Grade A)
Range of Light intensity	100mW/cm²(continous adjustable 40-120mW/cm²)
Light intensity non-uniformity	±2%( A grade)	±3%
Instability degree of irradiation	≤ ±2%(A grade)	±2%
Test results consistency	±0.5%	±1%
Test error of electrical proerties	≤±1%	≤±2%
Single flash time	10~30ms or 100ms	10ms
Effective test range	2000X1200mm/5w~300w (500W option)
Power Supply	220V ±10%, 5A/ 2KW/ 50-60Hz
Load time	5 s
Light Pulse Duration	10 ms~30ms~100ms
Data acquis. Speed per measurement	20 µs
Reference Cell Range	50 mV
Module measurements per hour	700
Measuring voltage	0~200V (resolution 1mV) Can customzied
Measuring current	0~20A (resolution 1mA) Can Customized
Test parameters	Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh

Solar Photovoltaic Simulator Options:

Manual and automatical sliding tracks match the production line;

Special requests on customization of survey on various solar cell.

Keyland is manufacturer only and good feedback

from our Solar Clients about Solar Photovoltaic Simulator
.

how to operate solar simulator
http://youtu.be/cS1d4i1Y4G8

Solar simulator
http://youtu.be/DZQpy8v9fMM

Automatic solar simulator and EL tester
http://youtu.be/or0tkRTmd4M

how to install solar simulator 1parts
http://youtu.be/QhW_zh0wI9A

how to install solar simulator 2parts
http://youtu.be/yPlN4RTMze8

how to install solar simulator 3parts
http://youtu.be/mCWALUL0MPE

How to Calibrate of Keyland Solar Simulator
http://youtu.be/LgNs75NnaZY

About Keyland

Before quotation, would you please let me know some items of solar simulator following?

1.What kind of solar cell modules do you want to test by our solar simulator?

2.What max. testing area do you demand?

3.Will you use in Lab. or solar panel production line?

Then, more details with good price will be sent . Also more industry solution will be supplied.
