Home > Products > Solar Simulator > Keyland Photovoltaic Solar Panels Testing Machine for Photovoltaic

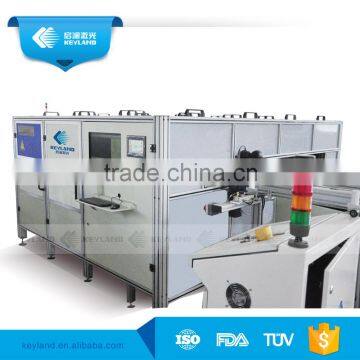

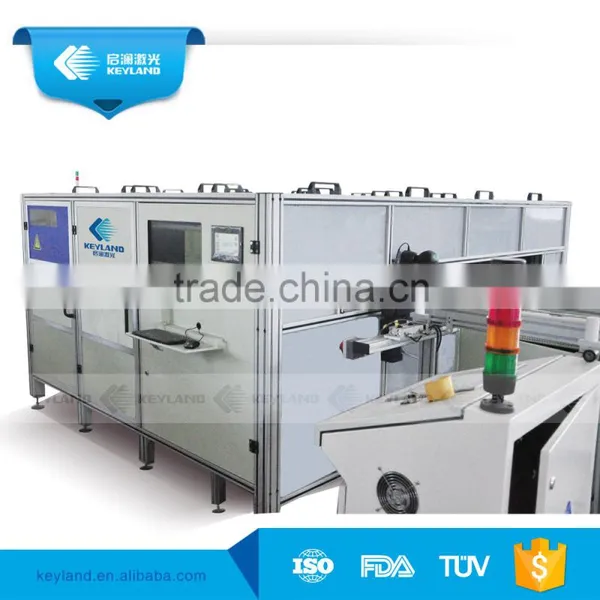

Keyland Photovoltaic Solar Panels Testing Machine for Photovoltaic
- 500 Set / Sets per Month
- Shanghai /Shenzhen/ To be appointed
- T/T L/C D/P D/A Credit Card PayPal
-
Keyland Solar Sun Simulator for Solar Panel IV Testing and Recording
-
Keyland Flash Solar Tester for IV Testing
-
Keyland Am 1.5 Solar Photovoltaic Simulator
-
Auto Sensor Solar Panel Voltage Current Test Am 1.5 Xenon Lamp Flash Solar Sun Simulator Price
-
Keyland Solar Panel Tester for Testing Photovoltaic Panels Price
-
Keyland Solar Photovoltaic Simulator
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Keyland Solar | Model Number: | GTM-AAB /AAA |
| Specification: | Normal | Application: | Industrial | Output Voltage (V): | 110V/220V |
| Load Power (W): | Depend | Solar Power (W): | 1W-300W | Work Time (h): | 24 Hours |
Packaging Details
standard plywood packaging with aluminum strip for seafreight
Product Description
Keyland Manufacturer Grade AAB AAA
Photovoltaic Solar Panels Testing Machine for Photovoltaic
Also Called :Solar Modules Test Machine/Sun Simulator/ solar panel flash tester/I-V PV tester/ xenon lamp solar simulator/ solar panel simulator/ solar system simulator
Solar Panels Testing Machinefor IV Testing used in:
1.Solar Panel Production Line
2. University /Lab ./ Research Institute and etc
What are Solar Panels Testing Machine for :
Mainly used in automatic test and result record of solar mono-Si, poly-Si and a-Si cell module's Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh ( Electrical performance test)
**Keyland offers custom large area Solar Panels Testing Machinefor testing, thin film (both CdTe and CIGS).
Solar Panels Testing Machine for IV Testing 's Technology characters:
• A grade spectrum
• A grade unevenness degree of irradiance
• A grade instability of irradiance
• Flash pulse 10~30ms, continuous adjustable (100ms for customized)
• 4-line survey,14-bit 4-channel high-speed synchronous acquisition.
•10 parameters display
• 8000 data collecting dots
•Irradiance&Temperature compensating automatically
•Measurement parameter displays in tabulation and graphic way;
•Voice counts off and prompts;
•Counting prompt of flash times;
•24hrs continuous working;
•Working life of imported xenon lamp is 300, 000 times of flash
• Imported PLC control System
*Test Parameter : Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh.
(Software main interface)
(Exported EXCEL Document)
Type specifications | GTM-5A | GTM-ABB |
Lamp spectrum | In line with IEC60904-9 and JISC8933( Grade A) | |
Range of Light intensity | 100mW/cm2(continous adjustable 40-120mW/cm2) | |
Light intensity non-uniformity | ±2%( A grade) | ±3% |
Instability degree of irradiation | ≤ ±2%(A grade) | ±2% |
Test results consistency | ±0.5% | ±1% |
Test error of electrical proerties | ≤±1% | ≤±2% |
Single flash time | 10~30ms or 100ms | 10ms |
Effective test range | 2000X1200mm/5w~300w (500W option) | |
Power Supply | 220V ±10%, 5A/ 2KW/ 50-60Hz | |
Load time | 5 s | |
Light Pulse Duration | 10 ms~30ms~100ms | |
Data acquis. Speed per measurement | 20 µs | |
Reference Cell Range | 50 mV | |
Module measurements per hour | 700 | |
Measuring voltage | 0~200V (resolution 1mV) Can customzied | |
Measuring current | 0~20A (resolution 1mA) Can Customized | |
Test parameters | Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh | |
Sun Solar Panels Testing Machine for IV Testing Options:
Manual and automatical sliding tracks match the production line;
Special requests on customization of survey on various solar cell.
Keyland is manufacturer only and good feedback
from our Solar Clients about Solar Panels Testing Machinefor IV Testing .
how to operate solar simulator / Solar Panels Testing Machine
http://youtu.be/cS1d4i1Y4G8
Solar Flash Solar Tester for IV Testing /Solar Panels Testing Machine
http://youtu.be/DZQpy8v9fMM
Automatic solar simulator and EL tester /Solar Panels Testing Machine
http://youtu.be/or0tkRTmd4M
how to install Flash Solar Tester for IV Testing 1parts
http://youtu.be/QhW_zh0wI9A
how to install Flash Solar Tester for IV Testing 2parts
http://youtu.be/yPlN4RTMze8
how to install Flash Solar Tester for IV Testing Flash Solar Tester for IV Testing 3parts
http://youtu.be/mCWALUL0MPE
How to Calibrate of Keyland Flash Solar Tester for IV Testing
http://youtu.be/LgNs75NnaZY
About Keyland
Before quotation, would you please let me know some items of solar simulator following?
1.What kind of solar cell modules do you want to test by our solar simulator?
2.What max. testing area do you demand?
3.Will you use in Lab. or solar panel production line?
Then, more details with good price will be sent . Also more industry solution will be supplied.
Notice:
Solar Simulator agents wanted all over the world.
Hope our good quality,comprehensive service and competitive price will help you expand your marketing sucessful.
Ms Lucia await for your inquiry about Keyland Solar machine.
You can contact me through following way:
1. CLICK "CONTACT SUPPIER" or "SEND MESSAGE"to send offer to me through alibaba.
2.Ms Lucia's online contact way: Whatsapp:0086 186 7291 7139
Skype:lvlucia
QQ:593670706
Email:lucia (at)
3.Also YOUTOBE :keylandlaser
Facebook:keyland laser
To know more about our company new trends ,solar machines' working processing.
Company Profile
Jiangsu Keyland Laser technology Co., Ltd. (Keyland laser) is a high-tech enterprise with 20 years' experience in the R&D, production and sales of laser equipment. Our company has annual production capacity of 6,000 sets of equipment. The company locates in China Optical Valley, with import and export rights. We are committed to providing the customers with comprehensive and integrated laser processing and application solutions of solar energy equipment.
The main products of Keyland Laser are solar photovoltaic equipment, laser scribing-cell machine, laser scribing-film machine, laser marking machine, laser cutting machine, laser engraving machine, laser engraving and cutting machine, laser cutting flat bed and other 10 series. 100 section models are widely used in solar energy, electronics, clothing, leather, advertising, arts and crafts, automotive, motorcycle, hardware, measuring tools, cutting tools, plumbing ware, medical equipment, eyeglasses, glass craft, food, pharmaceutical, printing and packaging, furniture, decoration and etc., about 1,000 kinds of industries and fields.
Keyland Laser wins the praise of domestic and overseas customers in each industry by right of the high-quality products and professional services. We have got a leading position in the domestic sales, even over more than 40 countries and regions. Our products have been sold to the United States, Germany, France, Poland, Italy, Russia, Japan, Korea, India, Iran, Singapore, Malaysia, Brazil, Sweden, Saudi Arabia, Australia, Syria and other countries and regions.
Keyland Laser takes the lead in laser equipment manufacturing technology. We have over 10 years of experience in laser design & services, from software development to hardware design. System testing equipment and technical service are all completed by the professional technology personnel.
Keyland Laser has set many bases of research in Beijing, Shanghai, Guangzhou and Wuhan, and also has cooperated with the domestic & foreign research institutions and colleges closely. We have 65 national patent applications and core technology achievement in this field, with international leading level.
Keyland Laser is the laser expert of industrial application and your reliable business partner.no matter what industry you are engaged in, our products are always suitable for you.
