Tungsten Carbide Sealing Rings/rollers

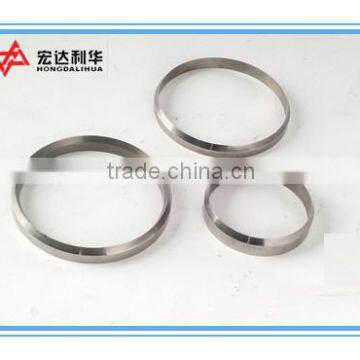

Tungsten Carbide Sealing Rings/rollers photo-1

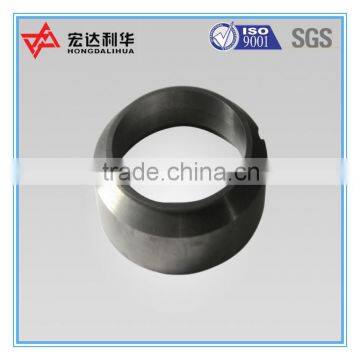

Tungsten Carbide Sealing Rings/rollers photo-2

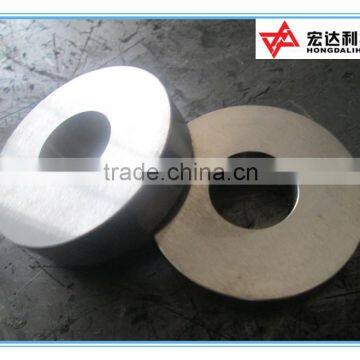

Tungsten Carbide Sealing Rings/rollers photo-3

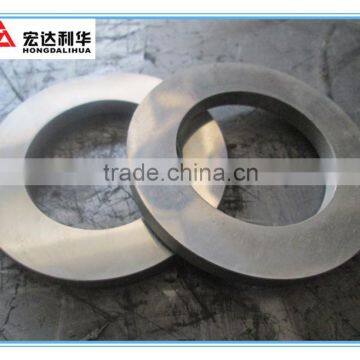

Tungsten Carbide Sealing Rings/rollers photo-4

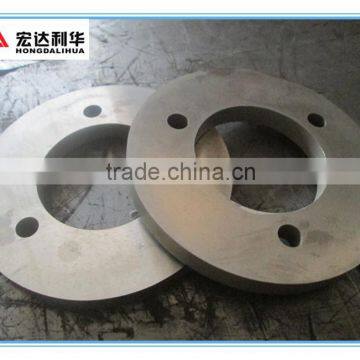

Tungsten Carbide Sealing Rings/rollers photo-5

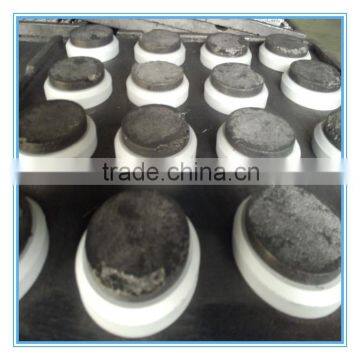

Tungsten Carbide Sealing Rings/rollers photo-6
US$ 0.98 - 1.22 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
LIHUA
Model Number:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
zhuzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name LIHUA
Model Number Customized
Alloy Specification YG6/YG8/YG8C/YG11/YG11C
Particle 0.6um
Product Description

• Model NO.: carbide seal ring
• Application: Mechanical Equipment
• Performance: High Pressure
• Standard: Customized
• Cer: ISO9001 SGS
• Advantage: Over 20 Years Experience in This Line
• Specification: ISO9001 SGS
• Material: Tungsten Carbide
•Type: Oil Seal
• Shape: O-Ring
• Name: Carbide Sealing Rings
• Business Type: Manufacturer
• Trademark: LIHUA
• Origin: Zhuzhou, China (Mainland)



Tungsten Carbide Seal Rings are used as Mechanical Seal faces in pumps, Compressors and Agitators. These are used in Oil Refineries, Petrochemical plants, Fertilizer Plants, and Drugs/Pharmaceutical Industries. Tungsten Carbide Rings are generally made with Cobalt as binder material. Nickel bonded Rings also can be supplied.


Grades
Density
(g/cm³)
Hardness(HRA)
T•R•S
(N/mm2)
Application
YG4C
15.00
89.5
1800
Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG6
14.80
89.5
1700
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8
14.70
88.5
2300
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8C
14.70
88.0
2300
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG9C
14.50
87.0
2400
Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG11C
14.40
86.5
2450
Mainly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG13C
14.30
86.0
2500
Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations.
YG15
14.00
86.5
2500
It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations.
YG16
14.10-14.30
87.5
2400
It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits.
YG20
13.40-13.70
85.0
2254
Mainly for the stamping dies used in the conditions of heavy impact load and large strees.
Type
Dimension
D
d
H
HR-156×94×70
92
62
HR-156×87×62
156
87
61
HR-158.8×87.32×62
158.8
87.32
62
HR-170.66×95×70
170.66
95
70
HR-170.66×95×57.35
170.66
95
57.35
HR-180×87.32×72
180
87.32
72
HR-180×120.65×72
180
120.65
72
HR-210.5×120.65×72
228.3
120.65
72
HR-212 ×120 ×60
212
120
60
HR-228.3×126×72
228.3
126
72
HR-228×135×72
228
135
72
HR-228×130×72
228
130
72
HR-228.34×130×44.476
228.34
130
44.476
HR-285×160×95
285
160
95
HR-285×160×70
285
160
70
HR-300×160×70
300
160
70

Our Advantages:

1) Business Type: Manufacturer, Factory.ISO9001:2008, SGS.

2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;

3) 100% Virgin pure Raw materials;

4) Each product through the strict inspections and confirm to the requirements of the lab parameters;

5) OEM & ODM are welcomed;

6) Small order is acceptable;

7) Flexible payment terms (L/C,T/T, western union, etc);

8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;

9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;

10) Fast delivery and high quality;

11) Best after-sale service.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.



Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is carton box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

Contact:

Foreign Sales Representative: Julia
Mobile: +86 18273297052
Website:
Factory Add: Tower A, 6th Building, Block C, Auto parts park, Taiyuan zone, Zhuzhou city, Hunan province, China
Postcode: 412000


Our Company

Zhuzhou Lihua Cemented Carbide Co., Ltd was established in 1990, integrated with production, research, development, sales, and technical service. Full of rich experience in the field of the tungsten Carbide, Lihua performs excellence.

Our company mainly produce such products as carbide rod& tubing, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and different other various type of the tungsten carbide products etc.

We have independent developed YS series of tungsten carbide grade that belongs to the micro hole grain of tungsten carbide, with good abrasion resistance, strong impact resistance, affinity resistance, good heat conduction performance and so on.

Lihua is committed to the principle of "customer first, fast delivery and good after-sale service ". If you have any questions and any demand of tungsten carbide, please contact us without any hesitation. We guarantee not only qualified products, but also designing, prompt delivery, the most competitive prices and all solutions.
