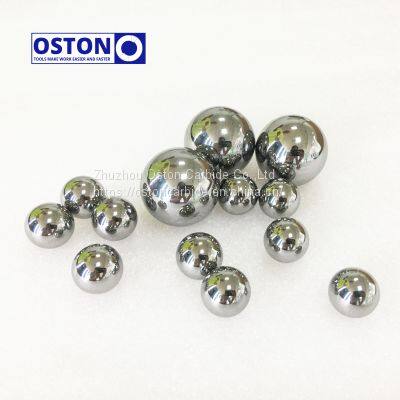

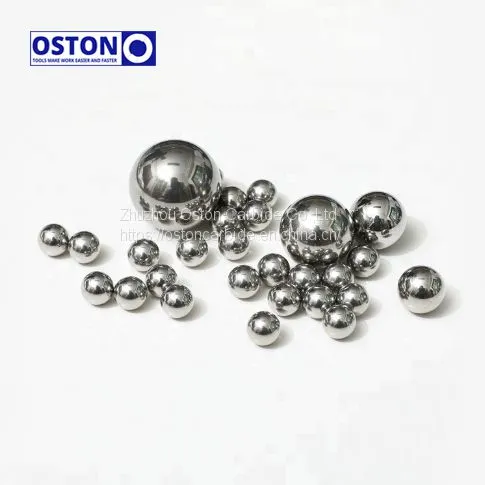

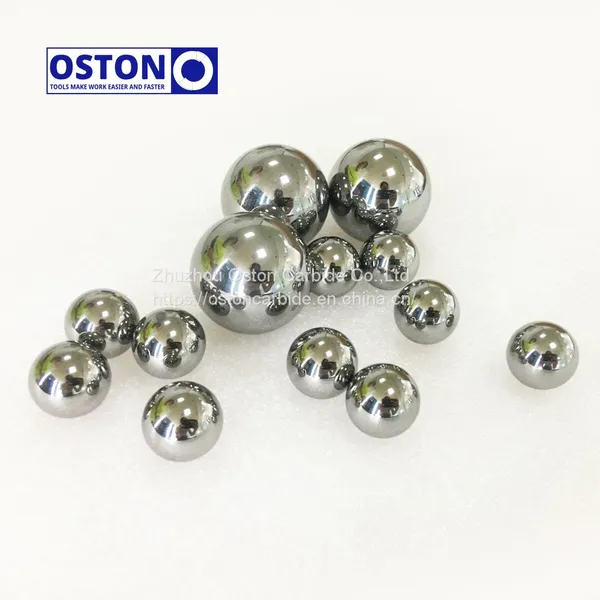

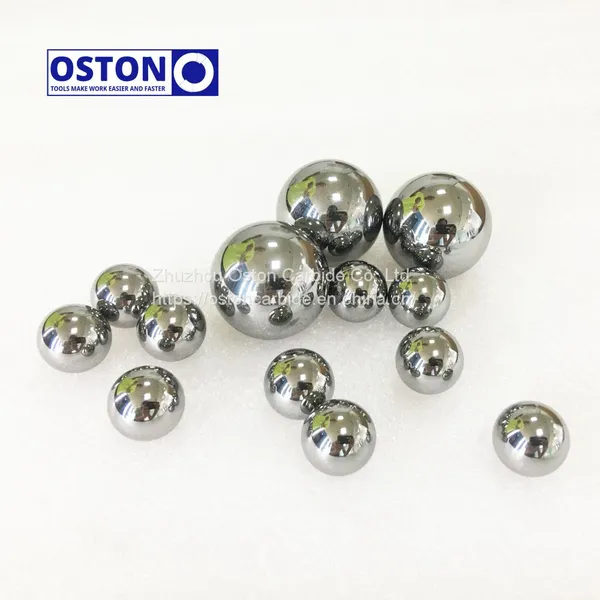

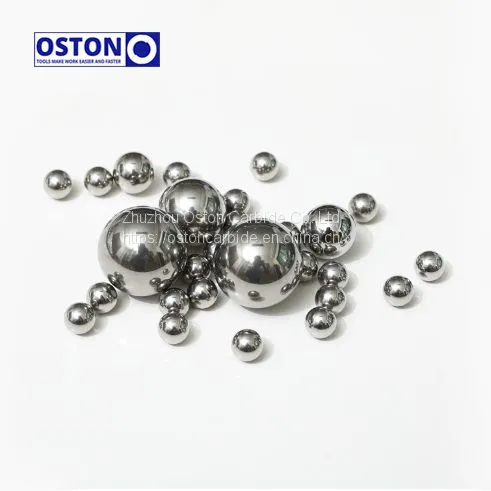

Help CenterK20/Yg6 V11 Series High Hardness Tungsten Carbide Ball for Sucker Rod Pump
Related Products
-
Original Material Tungsten Carbide Inlet Seats for Air-Operated Airless Spray PumpsUS$ 0.1 - 50MOQ: 2 Pieces -
K10/K20 Tungsten Carbide Valve Ball With Hollow Hole for Valve PumpsUS$ 0.1 - 50MOQ: 2 Pieces
-
Professional Manufacturing Waterjet Spare Parts Water Jet Nozzles for Kmt Water Jet MachineUS$ 20 - 50MOQ: 2 Pieces
-
Bk15/Bk20 Customizable Tungsten Carbide Seaming Roller Dies for Can Sealing SideUS$ 50 - 500MOQ: 2 Pieces
-
Yg20c Tungsten Carbide Metal Forming Dies for Cold-Forming Screws Bolts and RivetsUS$ 50 - 500MOQ: 2 Pieces
1.Quick information
Cemented carbide balls, commonly known as tungsten steel balls, refer to balls made of cemented carbide.
Cemented carbide balls can be ideally used in extremely harsh environments, and are extremely wear-resistant, impact-resistant, and corrosion-resistant. they are not easily deformed.
Cemented carbide balls are made of high-hardness, refractory metal carbides (WC, TiC) micron powder as the main component, with cobalt (Co), nickel (Ni), and molybdenum (Mo) as the binder,in a vacuum furnace or The powder metallurgy products sintered in the furnace, the common cemented carbide products are YG, YN, YT, YW series.
Cemented carbide balls have high hardness, wear resistance, corrosion resistance, and bending resistance, and can be used in harsh environments and replace all steel ball products.
It can be used in a high temperature environment higher than 600ºC, the hardness of cemented carbide balls is ≥90.5, and the density is 14.9g/cm3.
2.Main Dimensions
| API code | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
| SD+/-0.025 |
0.625'' (15.88mm) |
0.750'' (19.05mm) |
0.938'' (23.83mm) |
1.125'' (28.58mm) |
1.250'' (31.75mm) |
1.375'' (34.93mm) |
1.688'' (42.88mm) |
2.250'' (57.15mm) |
| h+0.50/+0.25 |
0.500'' (12.7mm) |
0.500'' (12.7mm) |
0.500'' (12.7mm) |
0.500'' (12.7mm) |
0.500'' (12.7mm) |
0.500'' (12.7mm) |
0.500'' (12.7mm) |
0.750'' (19.05mm) |
| D+0/-0.13 |
0.793'' (20.14mm) |
0.918'' (23.32mm) |
1.168'' (29.67mm) |
1.388'' (36.26mm) |
1.478'' (37.54mm) |
1.720'' (43.69mm) |
2.010'' (51.05mm) |
3.072'' (78.03mm) |
| d+/-1.27 |
0.460'' (11.68mm) |
0.550'' (13.97mm) |
0.670'' (17.02mm) |
0.825'' (20.96mm) |
0.960'' (24.38mm) |
1.060'' (26.92mm) |
1.310'' (33.27mm) |
1.700'' (43.18mm) |
These specs are common dimensions in our factory,if you can't find the one you need,please contact us.
| Diameter (mm) | Diameter (mm) | Diameter (mm) | Diameter (mm) |
2.0 |
2.38125 (3/32 '') | 2.5 | 3.0 |
3.175 (1/8 '') |
3.5 (9/64 '') | 4.0 | 4.5 |
4.7625 |
5.0 | 5.5 | 6.0 |
| 6.35 (1/4 '') | 6.5 | 7.0 | 7.144 (9/32 '') |
| 7.5 | 7.938 (5/16 '') | 8.0 | 8.5 |
| 9.0 | 9.525 (3/8 '') | 10.0 | 11.0 |
| 11.1125 (0.4375'') | 12.0 | 12.7 (0.5'') | 13.0 |
| 13.494 | 14.0 | 14.2875 (9/16 '') | 15.0 |
| 15.875 (5/8 '') | 16.0 | 17.0 | 17.4625 (11/16 '') |
| 18.0 | 19.0 | 19.05 (3/4 '') | 20.0 |
| 22.225 (7/8 '') | 25.0 | 25.4 ( 1'' ) | 28.575( 9/8 '') |
| 30.0 | 31.75 (1.25'') | 38.1 (1.5'') | 42.8625 ( 27/16 '') |
| 50.8 (2'') |
