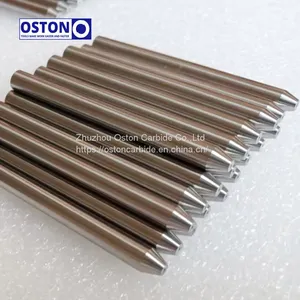

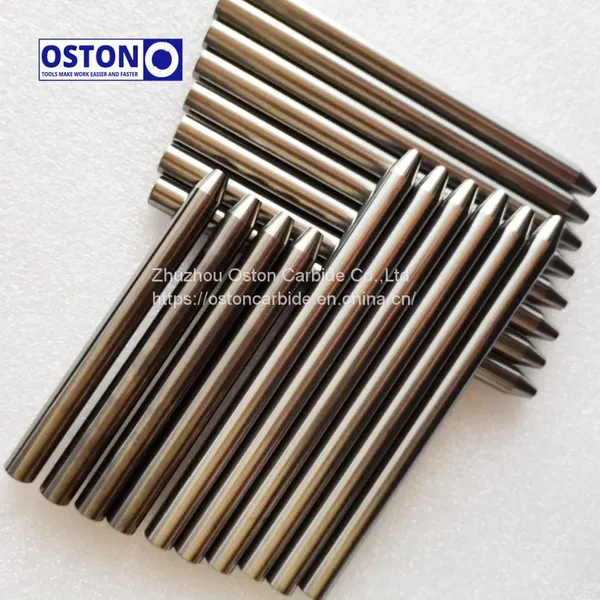

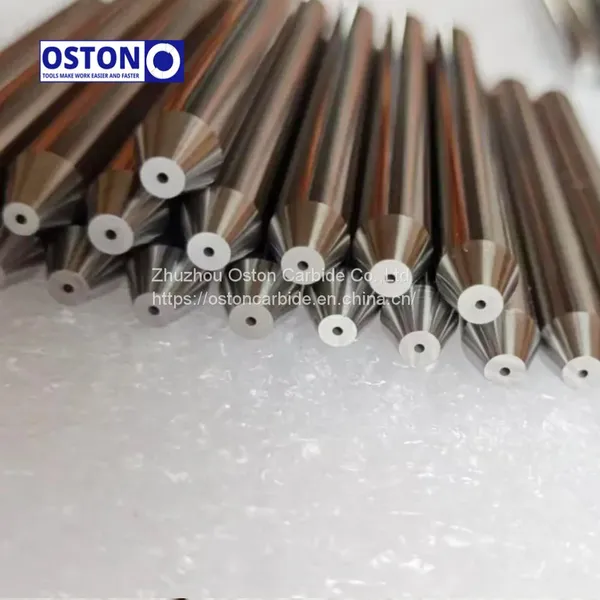

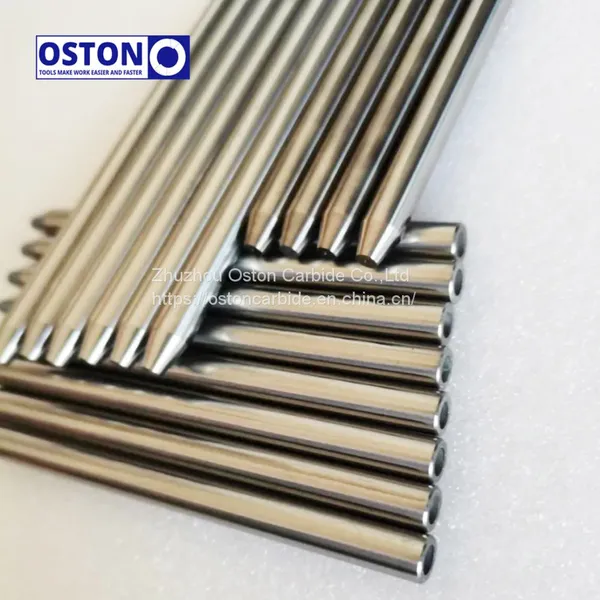

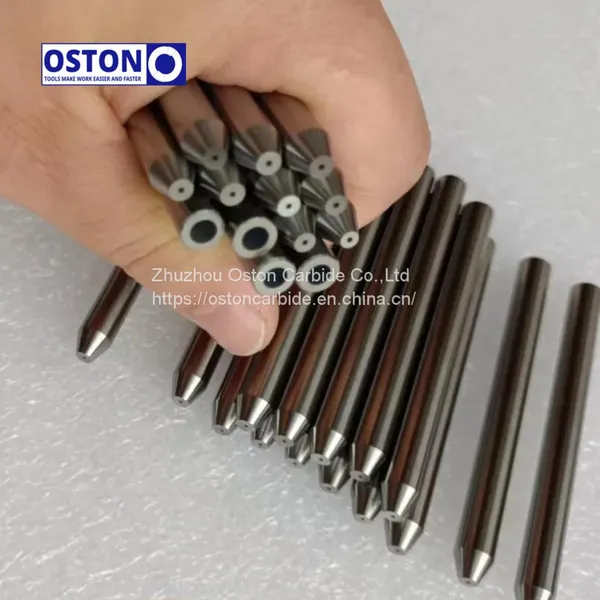

Professional Manufacturing Waterjet Spare Parts Water Jet Nozzles for Kmt Water Jet Machine
US$ 20 - 50
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
OSTON
Place of Origin:
China
Model Number:
005
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
25 days
Related Products
-
K20/Yg6 V11 Series High Hardness Tungsten Carbide Ball for Sucker Rod PumpUS$ 0.1 - 50MOQ: 2 Pieces -
Original Material Tungsten Carbide Inlet Seats for Air-Operated Airless Spray PumpsUS$ 0.1 - 50MOQ: 2 Pieces
-
K10/K20 Tungsten Carbide Valve Ball With Hollow Hole for Valve PumpsUS$ 0.1 - 50MOQ: 2 Pieces
-
Bk15/Bk20 Customizable Tungsten Carbide Seaming Roller Dies for Can Sealing SideUS$ 50 - 500MOQ: 2 Pieces
-
Yg20c Tungsten Carbide Metal Forming Dies for Cold-Forming Screws Bolts and RivetsUS$ 50 - 500MOQ: 2 Pieces
Brand Name
OSTON
Place of Origin
China
Model Number
005
Particle
99.7% WC
Alloy Specification
Standard and Cusotmized
1.Quick information
Name |
Tungsten Carbide Water Jet Cutting Nozzles |
Type |
9.47*0.76*76.2mm for mixing tubes |
Cutting Accuracy |
0.1mm~0.25mm |
Weight |
0.2kg |
Hardness |
≥HRA97.0 |
Density |
≥15.76g/cm³ |
Material grade |
OST12 |
Machine type |
Flow, KMT, OMAX and other waterjet machines |
Application |
for maryal, stone and glass cutting |
Use Life |
300 Hours for Glass and 150 Hours for Stone |
Keyword |
focusing tubes, waterjet nozzles, cutting waterjet parts |

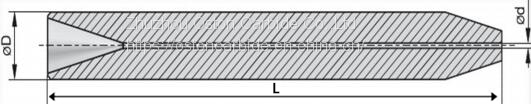

2.Main Dimensions
| ||||||
| Serial No. | D | d | L | |||
| 1 | mm | inch | mm | inch | mm | inch |
| 2 | 6.00 | 0.236 | 0.76 | 0.030 | 70.0 | 2.750 |
| 3 | 6.00 | 0.236 | 0.80 | 1/32 | 70.0 | 2.750 |
| 4 | 6.00 | 0.236 | 1.02 | 0.040 | 70.0 | 2.750 |
| 5 | 6.00 | 0.236 | 0.76 | 0.030 | 76.2 | 3.000 |
| 6 | 6.00 | 0.236 | 1.02 | 0.040 | 76.2 | 3.000 |
| 7 | 6.35 | 1/4 | 1.02 | 0.040 | 76.2 | 3.000 |
| 8 | 6.35 | 1/4 | 0.76 | 0.030 | 76.2 | 3.000 |
| 9 | 6.35 | 1/4 | 0.50 | 0.020 | 76.2 | 3.000 |
| 10 | 6.35 | 1/4 | 0.30 | 0.012 | 76.2 | 3.000 |
| 11 | 6.35 | 1/4 | 1.02 | 0.040 | 50.8 | 2.000 |
| 12 | 6.35 | 1/4 | 0.76 | 0.030 | 50.8 | 2.000 |
| 13 | 6.35 | 1/4 | 0.76 | 0.030 | 70.0 | 2.750 |
| 14 | 6.35 | 1/4 | 1.14 | 0.045 | 70.0 | 2.750 |
| 15 | 6.35 | 1/4 | 0.91 | 0.036 | 76.2 | 3.000 |
| 16 | 6.69 | 0.263 | 0.76 | 0.030 | 76.2 | 3.000 |
| 17 | 6.70 | 0.264 | 1.02 | 0.040 | 70.0 | 2.750 |
| 18 | 6.70 | 0.264 | 0.50 | 0.020 | 70.0 | 2.750 |
| 19 | 6.70 | 0.264 | 0.76 | 0.030 | 70.0 | 2.750 |
| 20 | 6.70 | 0.264 | 1.02 | 0.040 | 76.2 | 3.000 |
| 21 | 7.14 | 9/32 | 1.02 | 0.040 | 76.2 | 3.000 |
| 22 | 7.14 | 9/32 | 0.76 | 0.030 | 76.2 | 3.000 |
| 23 | 7.14 | 9/32 | 0.50 | 0.020 | 76.2 | 3.000 |
| 24 | 7.62 | 0.300 | 1.02 | 0.040 | 76.2 | 3.000 |
| 25 | 7.97 | 0.313 | 0.76 | 0.030 | 101.6 | 4.000 |
| 26 | 7.97 | 0.313 | 1.14 | 0.045 | 101.6 | 4.000 |
| 27 | 9.00 | 0.354 | 1.02 | 0.040 | 76.2 | 3.000 |
| 28 | 9.00 | 0.354 | 0.76 | 0.030 | 76.2 | 3.000 |
| 29 | 9.43 | 0.371 | 0.76 | 0.030 | 76.2 | 3.000 |
| 30 | 9.43 | 0.371 | 1.02 | 0.040 | 76.2 | 3.000 |
