Home > Products > Carbide for Industrial Cutting > 22*6*10.5mm Factory Wholesale High Toughness Tungsten Carbide Tile Cutter Replacement Wheel Scoring Wheel

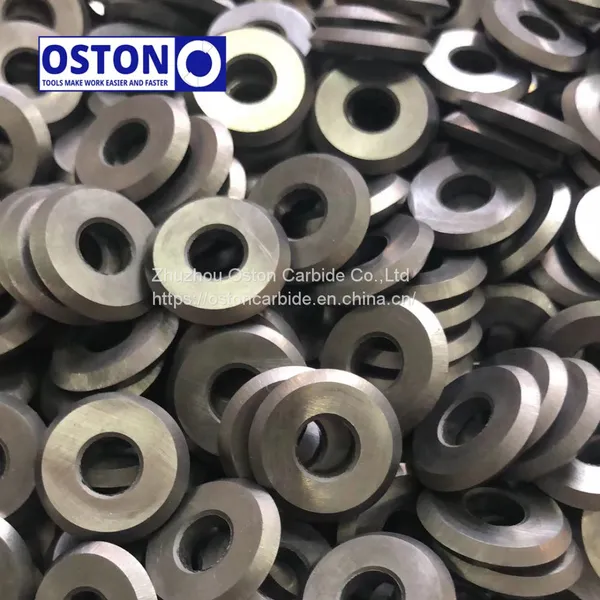

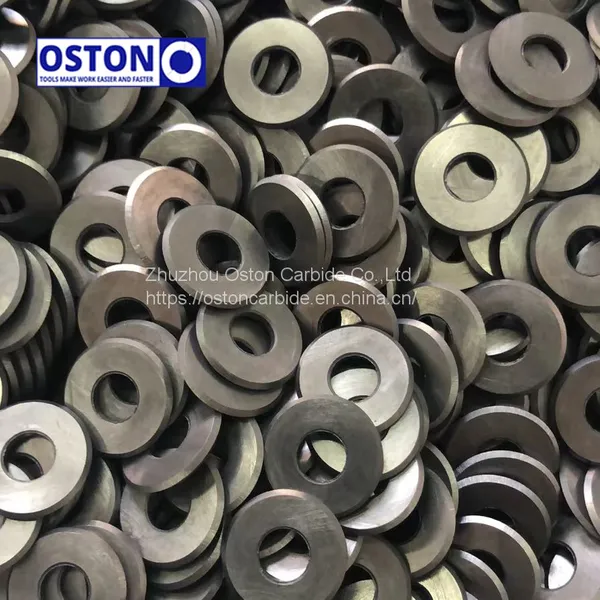

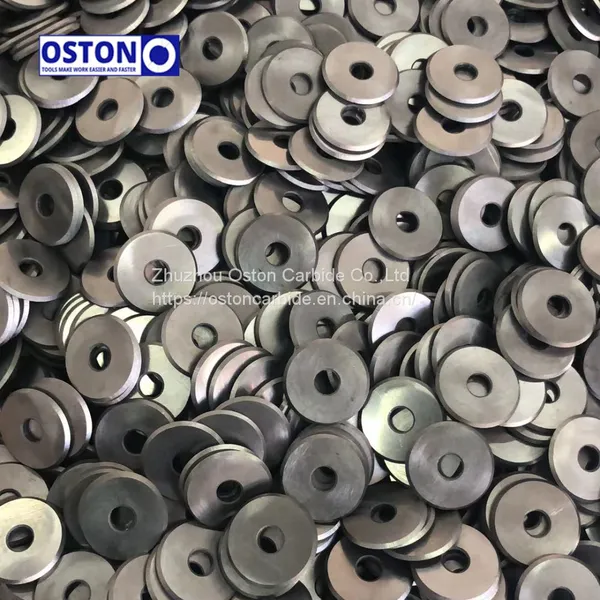

22*6*10.5mm Factory Wholesale High Toughness Tungsten Carbide Tile Cutter Replacement Wheel Scoring Wheel
USD $1 - $5
/ Piece
2 Pieces(Min.Order)
- 20 Metric Ton / Metric Tons per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 25 days
You May Like
-
CD-650 High Precision Tungsten Carbide Blank for Carbide Punches Die Inserts
-
Yg20c Tungsten Carbide Metal Forming Dies for Cold-Forming Screws Bolts and Rivets
-
Bk15/Bk20 Customizable Tungsten Carbide Seaming Roller Dies for Can Sealing Side
-
YG25/GT55 tungtsen carbide punching dies for bolt
-
K10/K20 Tungsten Carbide Valve Ball with Hollow Hole for Valve Pumps
-
Original Material Tungsten Carbide Inlet Seats for Air-Operated Airless Spray Pumps
Product Details
| Brand Name: | OSTON | Place of Origin: | China | Model Number: | 003 |
| Particle: | 1.0-1.2um | Alloy Specification: | Standard and Customized |
Product Description
1. Quick information
| Item name | tile cutter wheels |
| Material | 100% original tungsten carbide material |
| Quality grade recommended | K20 K10 |
| Surface treatment | general grinding,polishing,mirror polishing |
| Dimensions | As dimension table below |
| Export port | Guangzhou,Shenzhen,Shanghai,Ningbo |
| MOQ | 200 pcs for existed specs,2000 pcs for nes specs |
| Samples | Available for free |
2.Main Dimensions
| Specs (mm) | Outer Diameter (mm) | Tolerance (mm) | Inner Diameter (mm) | Tolerance (mm) | Thickness (mm) | Tolerance (mm) | Cutting angle |
| Φ22*Φ6.0*4.7mm | 22.0 | +/-0.2mm | 6.0 | +0.1/-0 | 4.7 | 0/-0.1 | 90° 100° 110° 120° |
| Φ22*Φ6.0*2.0mm | 22.0 | +/-0.2mm | 6.0 | +0.1/-0 | 2.0 | 0/-0.1 | 90° 100° 110° 120° |
| Φ22*Φ10.5*3.0mm | 22.0 | +/-0.2mm | 10.5 | +0.1/-0 | 3.0 | 0/-0.1 | 90° 100° 110° 120° |
| Φ22*Φ10.5*2.0mm | 22.0 | +/-0.2mm | 10.5 | +0.1/-0 | 2.0 | 0/-0.1 | 90° 100° 110° 120° |
| Φ20*Φ5*3.0mm | 20.0 | +/-0.2mm | 5.0 | +0.1/-0 | 3.0 | 0/-0.1 | 90° 100° 110° 120° |
| Φ20*Φ5*2.0mm | 20.0 | +/-0.2mm | 5.0 | +0.1/-0 | 2.0 | 0/-0.1 | 90° 100° 110° 120° |
| Φ18*Φ6*3.0mm | 18.0 | +/-0.2mm | 6.0 | +0.1/-0 | 3.0 | 0/-0.1 | 90° 100° 110° 120° |
| Φ18*Φ6*1.5mm | 18.0 | +/-0.2mm | 6.0 | +0.1/-0 | 1.5 | 0/-0.1 | 90° 100° 110° 120° |
| Φ16*Φ6*3.0mm | 16.0 | +/-0.2mm | 6.0 | +0.1/-0 | 3.0 | 0/-0.1 | 90° 100° 110° 120° |
| Φ16*Φ6*1.5mm | 16.0 | +/-0.2mm | 6.0 | +0.1/-0 | 1.5 | 0/-0.1 | 90° 100° 110° 120° |
| Φ15*Φ6*2.0mm | 15.0 | +/-0.2mm | 6.0 | +0.1/-0 | 2.0 | 0/-0.1 | 90° 100° 110° 120° |
| Φ15*Φ6*1.5mm | 15.0 | +/-0.2mm | 6.0 | +0.1/-0 | 1.5 | 0/-0.1 | 90° 100° 110° 120° |
| Φ12*Φ3*3.0mm | 12.0 | +/-0.2mm | 3.0 | +0.1/-0 | 3.0 | 0/-0.1 | 90° 100° 110° 120° |
| Φ10*Φ4*3.0mm | 10.0 | +/-0.2mm | 4.0 | +0.1/-0 | 3.0 | 0/-0.1 | 90° 100° 110° 120° |
