Huawei AP4030DN AP4130DN Access Points 1.167 Gbit/s, 2 x 2 MIMO, 2.4 GHz and 5 GHz frequency bands 802.11a/b/g/n/ac

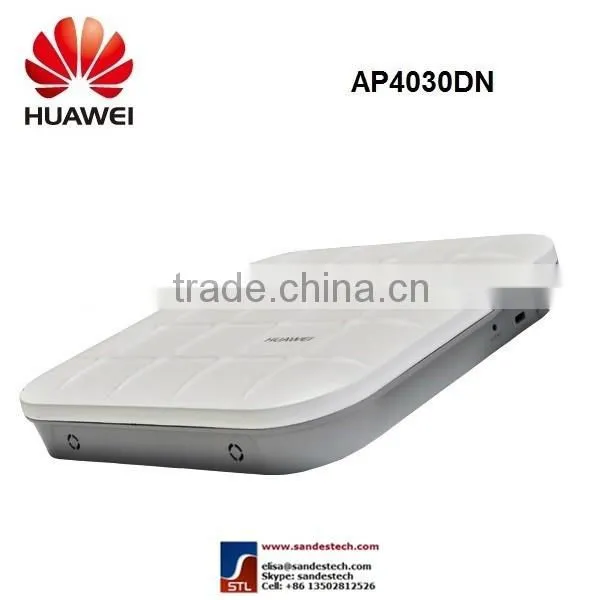

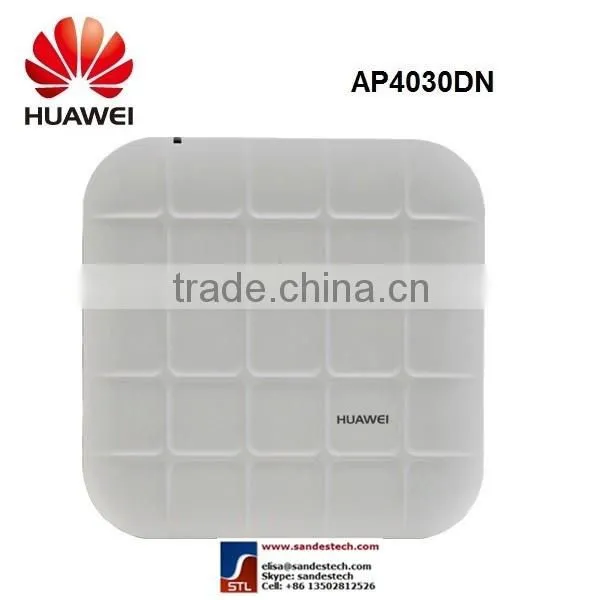

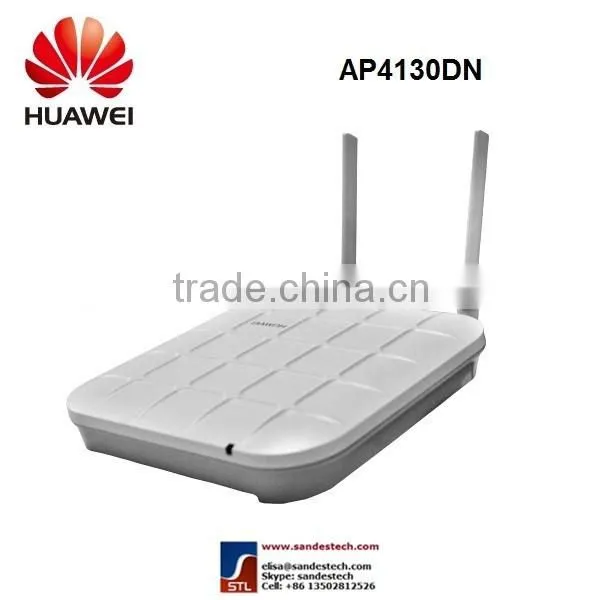

AP4030DN & AP4130DN Access Points
Huawei’s cost-effective 802.11n/ac AP4030DN and AP4130DN Access Points (APs) provide gigabit access to greatly improve a user’s experience on wireless networks. This series of APs is best suited for small and medium enterprises, airports and stations, sports stadiums, cafes, and entertainment centers.
In compliance with IEEE 802.11ac, the AP4030DN and AP4130DN support 2 x 2 MIMO. The APs offer comprehensive service support capabilities, and feature high reliability, high security, and easy network deployment.
Simplify your Operations and Maintenace (O&M) with automatic AC discovery and configuration, real-time management and maintenance with Huawei’s AP4030DN and AP4130DN APs.
Features
- Deploy cost-effective AP4030DN and AP4130DN APs to enable wireless services for airports, sports stadiums, cafes, and entertainment centers
- High-speed and reliable wireless access services: 1.167 Gbit/s, 2 x 2 MIMO, 2.4 GHz and 5 GHz frequency bands
- Comprehensive control capabilities: user access control based on user group policies
- Proven network security: WIDS and WIPS
- Rich network features: IPv4/IPv6 dual stack
Specifications
Specifications |
AP4030DN |
AP4130DN |
Dimensions (H x W x D) |
180 mm x 180 mm x 39.5 mm |
180 mm x 180 mm x 39.5 mm |
Power Input |
12V DC ± 10% PoE: -48V DC (in compliance with IEEE 802.3af/at) |
12V DC ± 10% PoE: -48V DC (in compliance with IEEE 802.3af/at) |
Maximum Power Consumption |
10.2W |
10.2W |
Operating Temperature |
-10℃ to+50℃ |
-10℃ to+50℃ |
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 6 dBi |
Removable RP-SMA antenna/2.4 GHz: 2.5 dBi, 5 GHz: 4 dBi |
Maximum Number of Concurrent Users |
≤ 256 |
≤ 256 |
Maximum Transmit Power |
23 dBm |
23 dBm |
MIMO: Spatial Streams |
2 x 2:2 |
2 x 2:2 |
Wireless Protocols |
802.11a/b/g/n/ac |
802.11a/b/g/n/ac |
Highest Rate |
1.167 Gbit/s |
1.167 Gbit/s |
