ZTE W812N V2 Indoor AP PoE or AC Coordinated / Stand-alone AP mode 2.4G/5G Dual Bands 2X2 MIMO

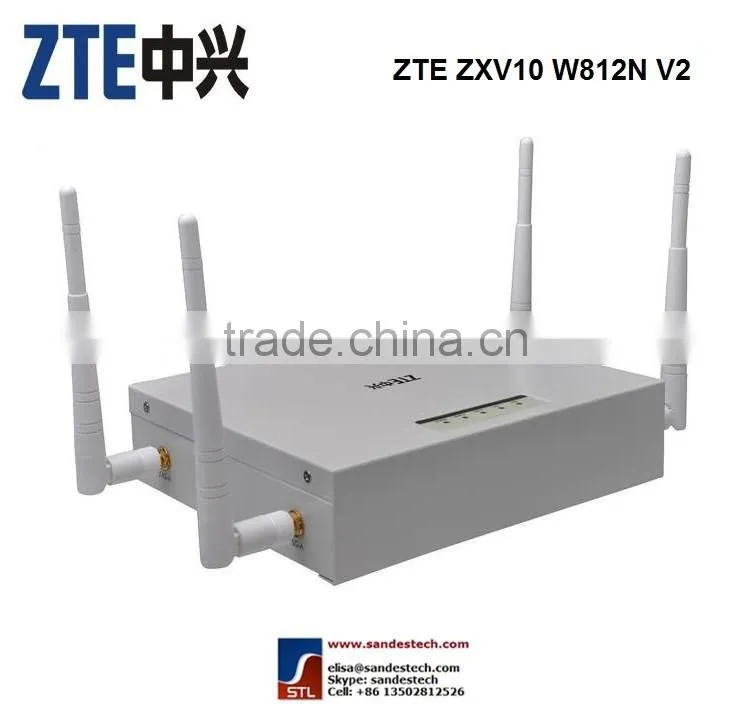

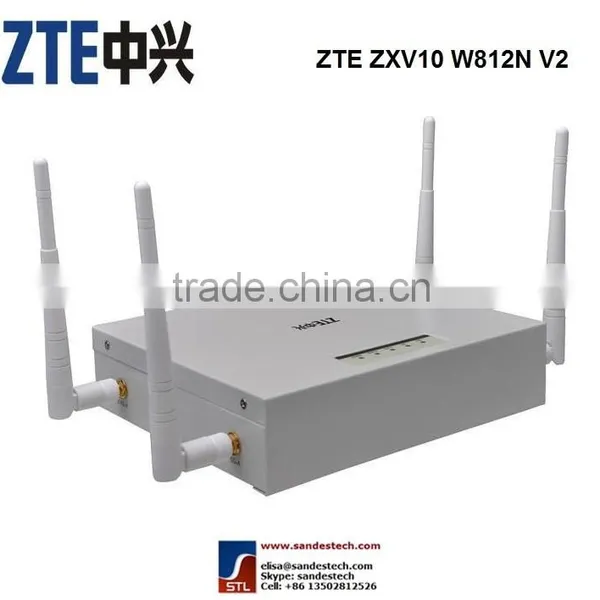

ZTE ZXV10 W812N V2 Wifi WLAN Access Point Indoor AP
ZXV10 W812N V2 is a carrier-level indoor dual-band WLAN access equipment. It can work in 2.4GHz and 5GHz simultaneously, complying with IEEE 802.11 a/b/g/n, adopting OFDM technology and supporting Ethernet PoE power supply technology.
The W812N V2 is a dual-band indoor AP with 2.4G for coverage and 5G for coverage or wireless bridge. This high-performance 802.11n AP features 2 spatial steams, delivers wireless data rates up to 300 Mbps and can be flexibly mounted on wall or ceiling. Developed under the unified ZTE CSP software platform, it can easily switch and operate as Coordinated or Stand-alone AP, and provide stable and manageable carrier-grade WLAN.
Features
2.4G/5G Dual Bands
2X2 MIMO 2 Spatial Streams
802.11a/b/g/n up to 300Mbps
10/100/1000Mbps Ethernet
PoE or AC Adaptor Power Supply
IP31 Environmental Protection
Coordinated / Stand-alone AP mode software switchable
Specifications
- Standard
IEEE 802.11a/b/g/n
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
- PHY Data Rate
802.11b: 1,2,5.5, 11Mbps (DSSS)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54Mbps (OFDM)
802.11n: MCS0 to MCS15 up to 300Mbps
- Radio Chains
2X2 MIMO 2 Spatial Streams
MRC for improved receiver performance
Cyclic delay diversity for improved downlink RF performance
STBC for increased range and reception
- Frequency Band
2.400 – 2.4835 GHz (Russia)
2.412 – 2.462 GHz (US/Canada)
2.412 – 2.472 GHz (Europe)
2.412 – 2.484 GHz (Japan)
2.412 – 2.472 GHz (China)
5.150 - 5.350/5.650 - 5.850 GHz (Russia)
5.150 - 5.350/5.470 - 5.850 GHz (US/Canada)
5.150 - 5.350/5.470 - 5.725 GHz (Europe)
5.150 - 5.350/5.470 - 5.725 GHz (Japan)
5.150 - 5.350/5.725 - 5.850 GHz (China)
- Channelization
HT 20MHz / 40MHz
RF Transmit Power(Actual output power may be limited by regulatory domain requirements)
- 2.4 GHz
20 dBm with 2 antennas
- 5 GHz
20 dBm with 2 antennas
- Encryption
64/128-bit WEP
WPA-PSK, WPA2-PSK
WPA-Enterprise, WPA2-Enterprise
TKIP and AES/CCMP
- RF Interface
4 * external SMA-type connectors
- Network Interface
1 * RJ-45 for Gigabit Ethernet
Auto-MDIX and POE
- Other Interface
1* DC power connector
- Environmental Condition
Indoor IP31
Work Temperature -10°C to 55°C
Humidity 5 to 95% non-condensing
- Power Rating
10.0 W (typical)
- Power Supply
PoE 802.3af/at
12V DC external AC adapter
- Dimensions
180 (D) x 165 (W) x 50 (H) mm
- Weight
0.8 kg
About the distribution:
As a golden distributor of ZTE, all of ZTE prodcucts from Polytrade/Sandes Technology are 100 % Original and Brandnew unless per clients’ requests; customers could claim 10time cost if you find we offer used or fake products. We offer one year warranty for all on-display products.
The ZTE products by us are whole series of hot-sell products, and if you did not find what you need on alibaba web, please contact us via elisa[at] to gain supports.
