Product Details
Place of Origin | Guangdong, China | Brand Name | HUAWEI | |
Model Number | HUAWEI AP7030DE |
Original Packaging
Product Description
Huawei AP7030DE 1.9 Gbit/s 3 x 3 MIMO Fit AP bridge WDS Mesh networking and PoE dual-band 2.4 GHz 5 GHz

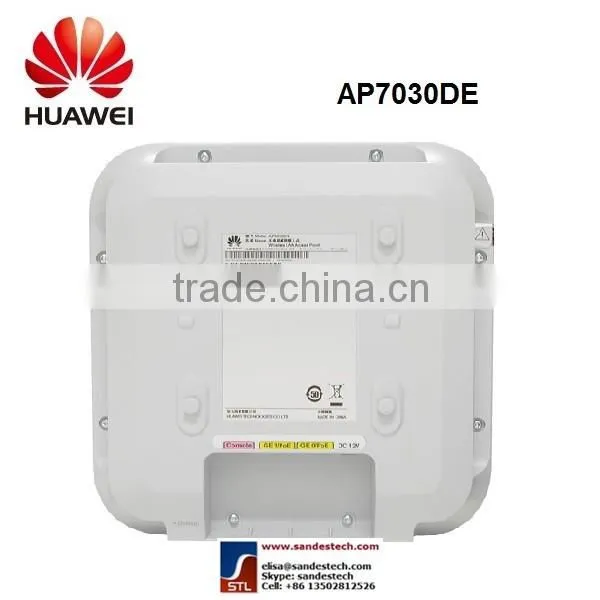

AP7030DE Access Point
Huawei AP7030DE dual-band AP provides secure gigabit wireless access in compliance with 802.11ac standards. The AP7030DE delivers high-powered performance in a rugged, attractive enclosure, which is ideal for high-capacity wireless connectivity in large venues, such as public or private assembly halls and convention centers. Built-in smart antenna arrays provide WLAN throughput up to 1.9 Gbit/s with optimum indoor coverage.
Supports fine-grained user management, real-time AP management and maintenance, and plug-and-play deployment.
Get reliable WLAN coverage plus 802.11ac performance with Huawei AP7030DE APs.
Features
- For an enriched wireless user experience, count on secure high-performance AP7030DE APs from Huawei
- Delivers high-speed, reliable WLAN services at 1.9 Gbit/s with 3 x 3 MIMO (three spatial streams) and provides redundant PoE (IEEE 802.3at-compliant) ports; smart antennas deliver accurate and directional RF coverage with suppressed interference and improved signal gain; Ethernet link aggregation ensures WLAN stability
- Works with the AC to implement unified authentication and AP management, fine-grained bandwidth management, and plug-and-play deployment; supports real-time monitoring, remote configuration, and fast fault location on the NMS; connects to a security lock to protect against theft
- Supports Fit AP, bridge, WDS, and Mesh networking and PoE or 12V DC power for flexible deployment; highly scalable
- Rich feature set includes value-added services such as spectrum analysis and Wi-Fi tag/terminal positioning
Specifications
Specifications | AP7030DE |
Dimensions (H x W x D) | 220 mm x 220 mm x 53 mm |
Power Input | 12V DC ± 10% PoE: −48V DC |
Maximum Power Consumption | 21W |
Operating Temperature | −20°C to +55°C |
Antenna Type/Antenna Gain | Dual-band smart antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi |
Maximum Number of Concurrent Users | ≤ 256 |
Maximum Transmit Power | 25 dBm (combined power) |
MIMO: Spatial Streams | 3 x 3:3 |
Radio Protocols | 802.11a/b/g/n/ac |
Maximum Rate | 1.9 Gbit/s |
