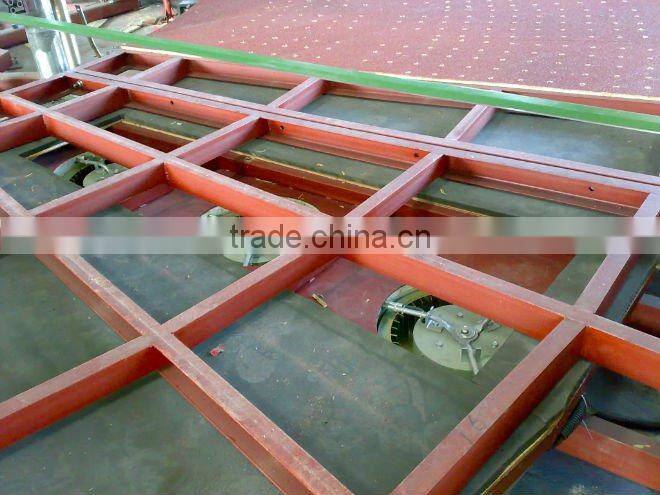

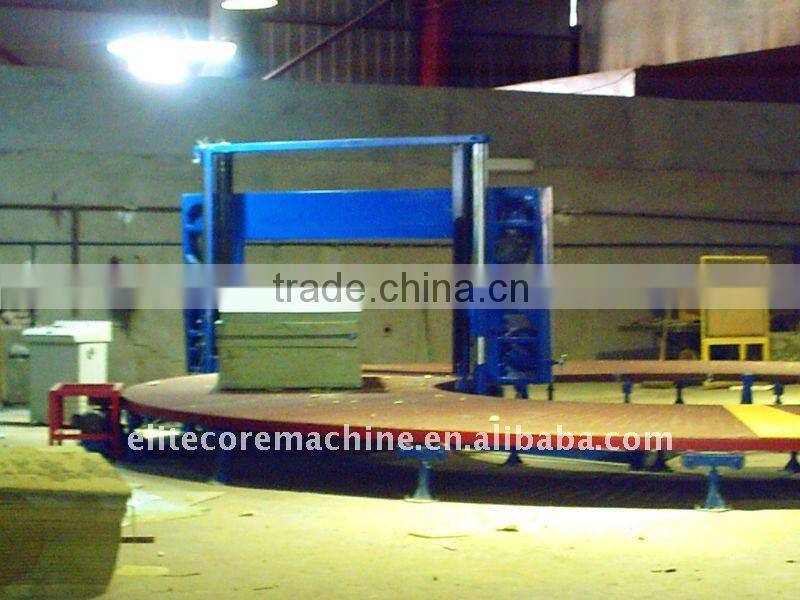

2013 Circular Foam Cutting Machine
- ShenZhen Port
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
2013 Carrousel Splitting Machine
-
2013 Automatic Circular Foam Cutting Machine/sponge Cutting Machine
-
2014 Foam Machine/sponge Machine/foaming Machine/foam Cutting Machine
-
2014 Sponge Machine/foam Cutting Machine/sponge Cutting Machine
-
2014 Sponge Cutting Machine/foam Cutting Machine
-
2013 PUTECH EURASIA High Precision Foam Machine
Product Details
| Type | Other, Foam Cutting Machine | Application | Foam Industry,Sponge Industry,Furniture Industry | |
| Place of Origin | Guangdong, China | Brand Name | EliteCore | |
| Model Number | ECMT-108A | Rated Power | 8.92kw | |
| No-Load Rotational Speed | 0-3.5rpm | Saw Blade Diameter | L10160mm | |
| Max. Cutting Depth | T2mm | Dimensions | W1500mm*L2000mm(5pcs) |
Product Description
Specifications
circular foam cutting machne is use for Blocks contiuous Sheets cutting .it can 5blocks at one time.1.PLC Programmed
circular foam cutting machine eliminated the reciprocating action and reverse movement of horizontal cutting machine. The cutting thickness can be pre-set from the Control Box in steps of 1/100mm, The Cutting Angle of the Knife Guidance can be adjusted in the range 0o - 5o by means of a Hand Wheel. A D.C. motor with smooth start and soft braking drives the table. The Turning Speed of the table is infinitely adjustable. As customers requirement, we also can design with a Vacuum System available in the cutting area, prevents the movement of blocks during cutting.
ECMT-107 | ECMT-108A | ECMT-108B | |||
Cutting Foam Size:
| W1500mm*L2000mm(4pcs) | Cutting Foam Size:
| W1500mm*L2000mm(5pcs) | Cutting Foam Size:
| W1500mm*L2000mm(8pcs) |
W2150mm*L3000mm(3pcs) | W2150mm*L4500mm(3pcs) | ||||
Cutting Foam Height:
| H1200mm | Cutting Foam Height:
| H1200mm | Cutting Foam Height:
| H1200mm |
Cutting Thickness:
| 2mm Up
| Cutting Thickness:
| 2mm Up
| Cutting Thickness:
| 2mm Up
|
Cutting Speed:
| 0~3.5rpm(Adjustable)
| Cutting Speed:
| 0~3.5rpm(Adjustable)
| Cutting Speed:
| 0~3.5rpm(Adjustable)
|
Blade Length:
| L8940mm | Blade Length:
| L10000mm | Blade Length:
| L10240mm |
Cutting Type:
| Automatic
| Cutting Type:
| Automatic
| Cutting Type:
| Automatic
|
Vacuum System:
| Choose Available
| Vacuum System:
| Choose Available
| Vacuum System:
| Choose Available
|
Blade Tension System:
| Choose Available
| Blade Tension System:
| Choose Available
| Blade Tension System:
| Choose Available
|
Work Table Size:
| Dia6000mm
| Work Table Size:
| Dia7mm
| Work Table Size:
| Dia10.5m
|
Machine N.W:
| 3300kg | Machine N.W:
| 3500kg | Machine N.W:
| 3800kg |
Total Motor Power:
| 7.94kw | Total Motor Power:
| 8.92kw | Total Motor Power:
| 10.52kw |
Floor Space:
| L7500mm*W6000mm*H2400mm | Floor Space:
| L7500mm*W6000mm*H2400mm | Floor Space:
| L11.5m*W11m*H2400mm |
