Specifications
Sponge cutting machine is use for Blocks contiuous Sheets cutting .it can 5blocks at one time.1.PLC Programmed
2.TaiWan PLC

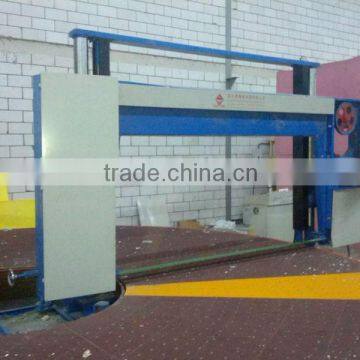

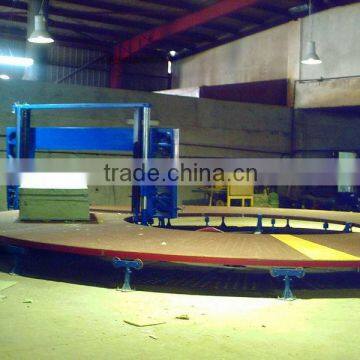

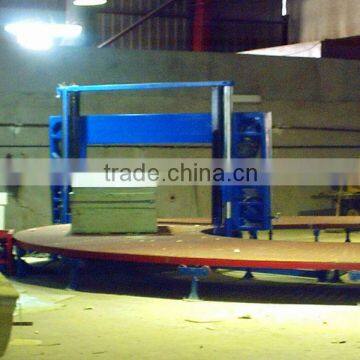

Foam cutting machine eliminated the reciprocating action and reverse movement of horizontal cutting machine. The cutting thickness can be pre-set from the Control Box in steps of 1/100mm, The Cutting Angle of the Knife Guidance can be adjusted in the range 0o - 5o by means of a Hand Wheel. A D.C. motor with smooth start and soft braking drives the table. The Turning Speed of the table is infinitely adjustable. As customers requirement, we also can design with a Vacuum System available in the cutting area, prevents the movement of blocks during cutting.
ECMT-107 | ECMT-108 | ECMT-108B | |||
Cutting Foam Size:
| W1500mm*L2000mm(4pcs) | Cutting Foam Size:
| W1500mm*L2000mm(5pcs) | Cutting Foam Size:
| W1500mm*L2000mm(8pcs) |
W2150mm*L3000mm(3pcs) | W2150mm*L4500mm(3pcs) | ||||
Cutting Foam Height:
| H1200mm | Cutting Foam Height:
| H1200mm | Cutting Foam Height:
| H1200mm |
Cutting Thickness:
| 2mm Up
| Cutting Thickness:
| 2mm Up
| Cutting Thickness:
| 2mm Up
|
Cutting Speed:
| 0~3.5rpm(Adjustable)
| Cutting Speed:
| 0~3.5rpm(Adjustable)
| Cutting Speed:
| 0~3.5rpm(Adjustable)
|
Blade Length:
| L9540mm | Blade Length:
| L10580mm | Blade Length:
| L10870mm |
Cutting Type:
| Automatic
| Cutting Type:
| Automatic
| Cutting Type:
| Automatic
|
Vacuum System:
| Choose Available
| Vacuum System:
| Choose Available
| Vacuum System:
| Choose Available
|
Blade Tension System:
| Choose Available
| Blade Tension System:
| Choose Available
| Blade Tension System:
| Choose Available
|
Work Table Size:
| Dia6000mm
| Work Table Size:
| Dia7mm
| Work Table Size:
| Dia10.5m
|
Machine N.W:
| 3300kg | Machine N.W:
| 3500kg | Machine N.W:
| 3800kg |
Total Motor Power:
| 8.92kw | Total Motor Power:
| 8.92kw | Total Motor Power:
| 11.92kw |
Floor Space:
| L7500mm*W6000mm*H2400mm | Floor Space:
| L7500mm*W6000mm*H2400mm | Floor Space:
| L11.5m*W11m*H2400mm |
