Three Phase Din-Rail Seven Module RS485 Meter

1.Product Details

Product Name

three phase Din-Rail seven module RS485 meter

Installation type

Din rail

Module No.

D512008 ( RS485 meter )

Brand

YTL ( RS485 meter )

Rated Current

1.5(6)A

Reference Voltage

3*220*380V

Frequence

50-60HZ

Display Mode

LCD 5+2

Accuracy

1

Impulse Constant

12800imp/kWh

Start Current

0.004Ib

Connection Mode

CT type

Communication&Protocol

/

Power Consumption

≤2W,  10VA

Material of meter case

PC

Size

122*100*65mm

Certificate

CE, ISO9001

Standard

IEC62052-11/IEC62053-21

2.Functions and characteristic

A.Three-phase four-wire electronic watt-hour meter is adopted special large scale integrated circuit and international advanced technology, Compared with traditional watt-hour meter,

B. Designed particularly, made with fine crafts. Its general goal is the high reliability, it is carried out in every step of designing, producing, testing, aging and exam.

C. It is higher accuracy, higher reliability, light and compact.

D. Its easy to realize the expanding the modern managing function, It has the indication of short phase, and puts out the impulse.

E. GB/T17215-1998 and IEC62053 40PCS/CTN

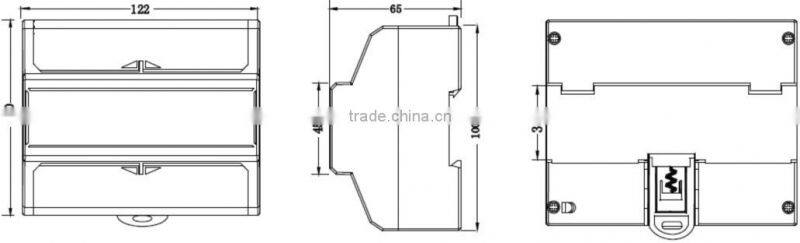

3.Outer and mount dimension

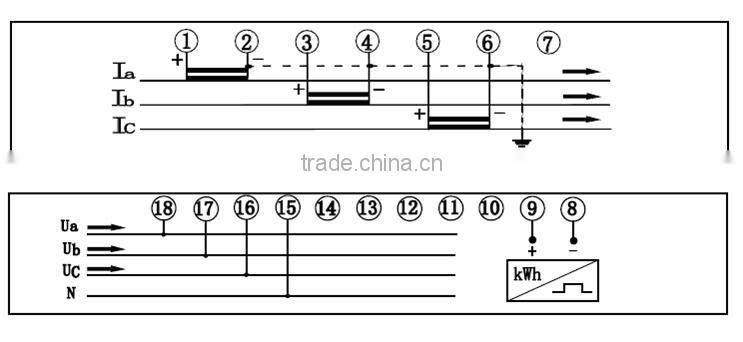

4.Wiring diagram

5.Transaction Information

MOQ

500pcs

/

static energy meter

Sea Port

Shanghai

Payment Terms

 TT LC

Supply Ability

500,000pcs per month

/

 static energy meter

Delivery time

20-25 days ater receive the payment

Normal Package

common box with static energy meter

If you are interested in   static energy meter, pls feel free to contact us at any time.
