Three-phase Five-module GPRS Din-rail Meter

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YTL
Model Number	D519013	Display Type	Analog and Digital
Phase	Three Phase	Measuring Energy Range	6A
Accuracy Class	0.5	Output Voltage	3*230/415V
Operating Temperature	-20~70	Dimensions	1009066.5mm

Product Description

Specifications

GPRS Din-rail meter
1. Measure active and reactive energy
2. Through RS485, set meter address,GPRS uploading time

Three-phase five-module GPRS Din-rail meter

As a professional manufacturer, YTL designs and produces e din rail smart meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.

YTL is devoted to develop and design all types of electronic din rail smart meter , concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.

1.Product Details
Product Name		Three-phase five-module GPRS Din-rail meter
Installation type		Din-rail
Module No.		D519013 ( GPRS Din-rail meter )
Brand		YTL ( GPRS Din-rail meter )
Rated Current		6A
Reference Voltage		3*230/415V
Frequence		50HZ
Display Mode		LCD 6+2
Accuracy		0.5
Impulse Constant		12000imp/kWh
Start Current		0.4%IB
Connection Mode		CT mode
Communication&Protocol		GPRS,RF
Power Consumption		≤1W and 7VA
Material of meter case		ABS
Size		1009066.5mm
Certificate		ISO9001
Standard		IEC62052-11 ,IEC62053-21
2.Functions and characteristic
A.Measure active and reactive energy of three phase.
B.LCD scrolling display.
C.Through RS485, can set meter address, password, GPRS uploading time, time of saving load profile, time of calculating MD, CT ratio and GPRS parameters.
D.Through RS485, can read energy, voltage, current, power, phase angel, current time, 4 MD, time interval of GPRS automatic uploading, CT ratio and 16 channels' profile records of each phase.
E.Upload automatically through GPRS. GPRS upload 16 channels' data to server automatically at regular intervals

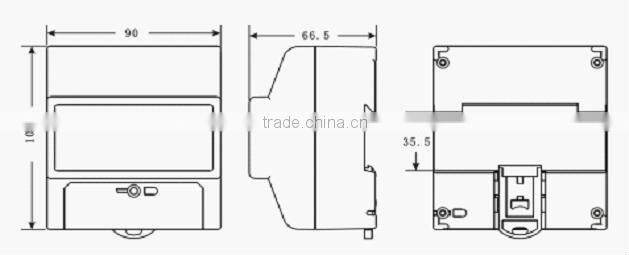

3.Outer and mount dimension:

4.Wiring diagram:

5.Transaction Information
MOQ	300 pcs
Sea Port	Shanghai
Payment Terms	T/T,L/C
Supply Ability	50000pcs/month
Delivery time	30 days after receive the prepayment
Normal Package	white box+yellow carton
