Three Phase RF Meter Measure Reactive Energy
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | YTL | |
| Model Number | D519014 | Display Type | Digital Only | |
| Phase | Three Phase | Measuring Energy Range | 10(80)A | |
| Accuracy Class | 0.5; 1.0 | Output Voltage | 3*220/380V;3*240/400V | |
| Operating Temperature | -25--+50 | Dimensions | 122.5*115*65mm |
Product Description
Three Phase RF meter measure reactive energy
As a professional manufacturer, YTL designs and produces RF meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of RF meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name | Three Phase RF meter measure reactive energy | |
Installation type | Din rail | |
Module No. | D519014 (RFmeter) | |
Brand | YTL (RFmeter) | |
Rated Current | 10(80)A | |
Reference Voltage | 3*220/380V 3*230/400V | |
Frequence | 50/60Hz | |
Display Mode | LCD 6+2 | |
Accuracy | 1.0 | |
Impulse Constant | 6400imp/kWh | |
Start Current | 0.004Ib | |
Connection Mode | Direct mode | |
Communication& Protocol | RS485 RF IR | |
Power Consumption | Voltage Element Un: <2W / <10VA @ Un Current Element In: <2.5 VA @ (Ib) | |
Material of meter case | PC | |
Size | 122.5*115*65mm | |
Certificate | CE ISO9001 | |
Standard | IEC62052-11 IEC62053-21 | |
2.Functions and characteristic | ||
A.Three phase voltage, current, power factor and three phase total power rate display | ||
B.Measuring active and reactive total energy | ||
C.Programmable basic free energy which can realize simple prepaid function. | ||
D.Inside 80A relay, support programmable disconnect function for over current and over energy. | ||

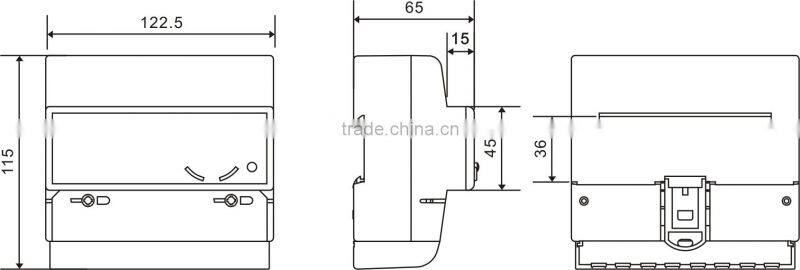

3.Outer and mount dimension: | ||
 | ||

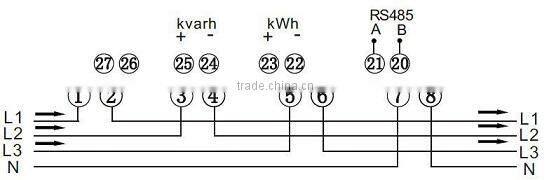

4.Wiring diagram: | ||
| | ||
5.Transaction Information | ||
MOQ | 500PCS | |
Sea Port | Shanghai | |
Payment Terms | TT prepayment | |
Supply Ability | 50,000pcs per month | |
Delivery time | 25 days | |
Normal Package | white box or colorful box for RF meter | |
If you are interested in our Three Phase RF meter measure reactive energy, pls feel free to contact us at any time.
