Three Phase RS485 Energy Meter
s a professional manufacturer, YTL designs and produces RS485 energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of RS485 energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
Three Phase RS485 Energy Meter | |
Installation type |
Din rail | |
Module No. |
D519006 (RS485 Energy Meter) | |
Brand |
YTL (RS485 Energy Meter) | |
Rated Current |
10(150)A | |
Reference Voltage |
3*220/380V, 3*230/400V | |
Frequence |
50/60Hz | |
Display Mode |
/ | |
Accuracy |
1.0 | |
Impulse Constant |
1000/800imp/kWh | |
Start Current |
0.004Ib | |
Connection Mode |
CT mode | |
|
Communication& Protocol |
RS485 MODBUS | |
Power Consumption |
voltage circuit≤0.6W; current circuit≤0.3VA | |
Material of meter case |
PC | |
Size |
122*100*65mm | |
Certificate |
CE | |
Standard |
IEC62052-11 IEC62053-21 | |
2.Functions and characteristic | ||
A. Forward and reverse kWh measurement: accurately measure forward and reverse power. | ||
B. With standard RS485 Interface. | ||
C. Measurement in wide range and good ability in overload. | ||
D. Use external CT to enlarge the current | ||

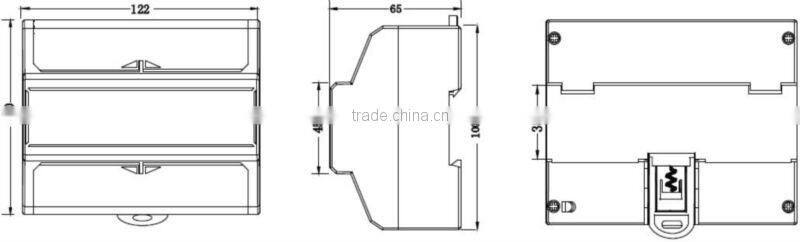

3.Outer and mount dimension: | ||
| | ||
4.Wiring diagram: | ||
| | ||
5.Transaction Information | ||
MOQ |
500pcs | |
Sea Port |
Shanghai or Ningbo | |
Payment Terms |
TT prepayment | |
Supply Ability |
50,000 pcs of energy meter per month | |
Delivery time |
25 days | |
Normal Package |
white box or colorful box for RS485 Energy Meter | |
If you are interested in our Three Phase RS485 Energy Meter, pls feel free to contact us at any time.
