Specifications
Double Tariff MeteHave two display windows, which display two different tariff (T1,T2), adding out voltage T2.
As a professional manufacturer, YTL designs and produces prepayment smart meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of prepayment smart meter, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
THREE-PHASE SEVEN MODULAR DOUBLE TARIFF METER | |
Installation type |
Din-rail | |
Module No. |
D516003 ( DOUBLE TARIFF METER ) | |
Brand |
YTL ( DOUBLE TARIFF METER ) | |
Rated Current |
1.5(6)A 10(40), 15(60), 10(63)A, 20(80), 10(100) |
|
Reference Voltage |
3*220V/380 V | |
Frequence |
50-60Hz |
|
Display Mode |
LCD 5+2 |
|
Accuracy |
1.0 | |
Impulse Constant |
800imp/kWh | |
Start Current |
0.004Ib | |
Connection Mode |
Direct | |
Communication&Protocol |
/ | |
Power Consumption |
≤8VA ≤2W |
|
Material of meter case |
ABS | |
Size |
122*100*65mm | |
Certificate |
ISO9001 | |
Standard |
IEC 62052-11,IEC62053-21 |
|
2.Functions and characteristic | ||
A.Have two display windows, which display two different tariff (T1,T2), adding out voltage T2. | ||
B.Forward and reverse energy measurement: accurately measure forward and reverse power | ||
C.Out voltage (220/230V) control the state of tariff. | ||
D.Indication for power value or tariff state of each phase | ||
3.Outer and mount dimension: | ||
| | ||

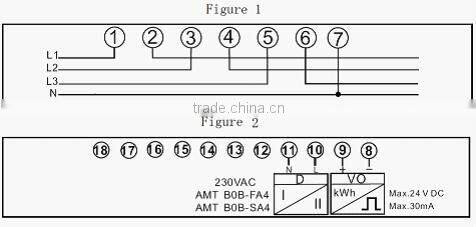

4.Wiring diagram: | ||
| ||
5.Transaction Information | ||
MOQ |
300pcs | |
Sea Port |
Shanghai | |
Payment Terms |
T/T,L/C | |
Supply Ability |
50000PCS/Month | |
Delivery time |
30 days after receive prepayment | |
Normal Package |
white box+yellow carton | |
