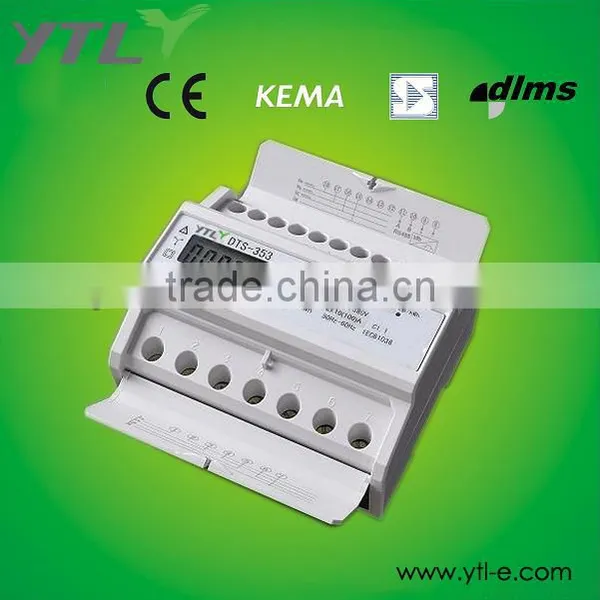

Three phase three wire Din-rail watt meter
As a professional manufacturer, YTL designs and produces watt meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of watt meter, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |
Three phase three wire Din-rail watt meter | |
Installation type |
Din rail | |
Module No. |
D412001 (watt meter) | |
Brand |
YTL (watt meter) | |
Rated Current |
10(100)A | |
Reference Voltage |
3*220/380V; 3*230/400V | |
Frequence |
50/60HZ | |
Display Mode |
LCD 6+1=999999.9kWh | |
Accuracy |
1.0;2.0 | |
Impulse Constant |
800imp/kWh; | |
Start Current |
0.004lb | |
Connection Mode |
CT type | |
|
Communication& Protocol |
/ | |
Power Consumption |
≤0.6W ; ≤ 0.3VA | |
Material of meter case |
PC | |
Size |
100*122*65mm | |
Certificate |
CE | |
Standard |
IEC62052-11/62053-21 | |
2.Functions and characteristic | ||
A. Large scale Integrated circuit and surface mount technology(SMT)are used with advanced technology and simple structure as well as high reliability | ||
B. New integrated circuit with built-in digital multiplier special for electronic energy is broght in from aboard and adopted to extend the dynamic working range of the meter. | ||
C. The meter is electomagnetically compatible,anti-jamming and lightning-strike-proof. | ||
… | ||
3.Outer and mount dimension: | ||
| | ||

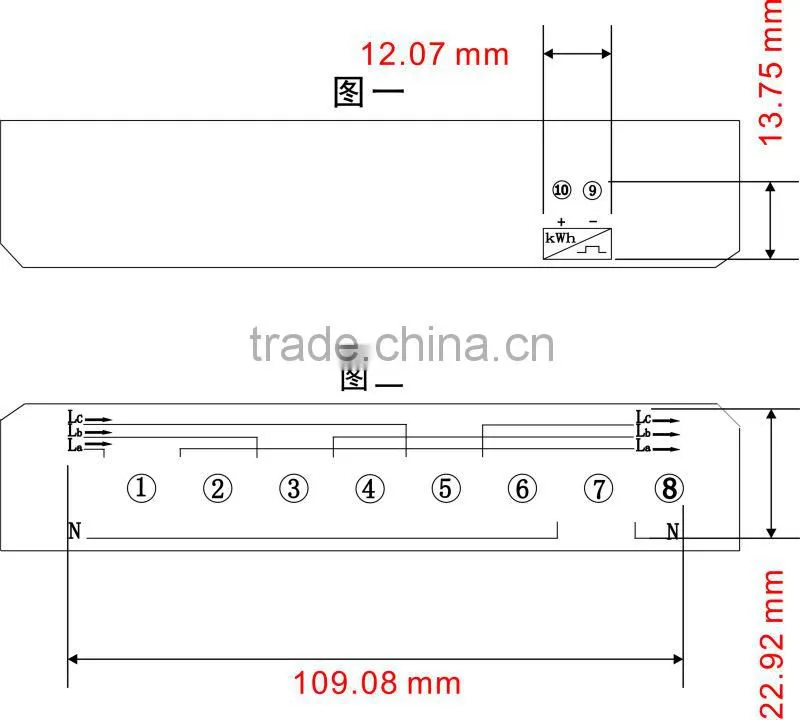

4.Wiring diagram: | ||
| | ||
5.Transaction Information | ||
MOQ |
500PCS | |
Sea Port |
Shanghai | |
Payment Terms |
TT prepayment | |
Supply Ability |
50,000pcs per month | |
Delivery time |
25 days | |
Normal Package |
white box for watt meter | |
If you are interested in our three phase three wire Din-rail watt meter, pls feel free to contact us at any time.
