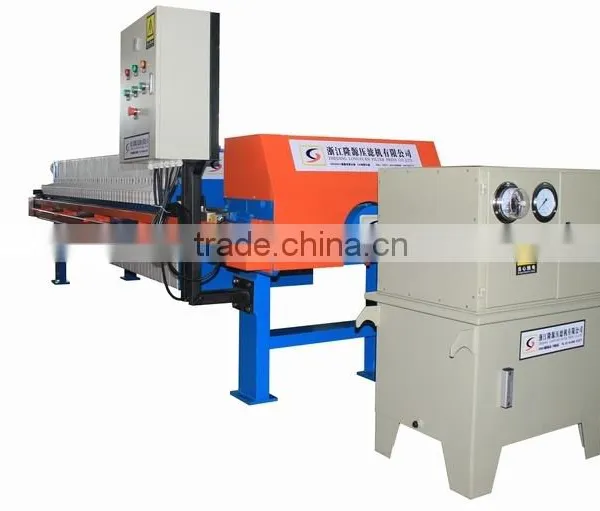

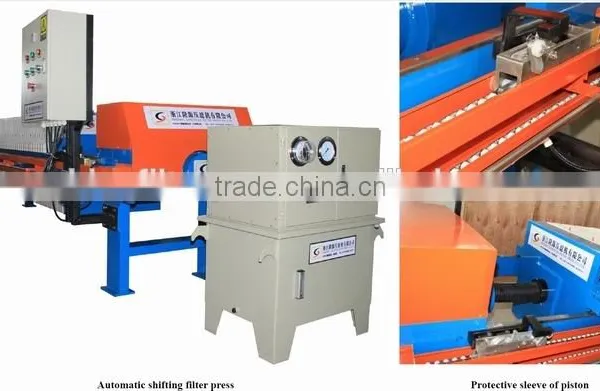

Auto 1500 Membrane Chamber PP Filter Press

Name: Auto 1500 Membrane Chamber PP Filter Press
Brand: Longyuan
SKU: 118222785

US$ 5,000 - 20,000 MOQ: 1 Set

Key Specifications

Automatic Grade:

Automatic

Place of Origin:

Zhejiang, China

Brand Name:

Longyuan

Zhejiang Longyuan Environment Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or ningbo

Delivery Detail:

Delivery time depends on order quantity.

Automatic Grade Automatic

Place of Origin Zhejiang, China

Brand Name Longyuan

Model Number 1500

Voltage 380v

Power(W) CE/ ISO9001/ISO14001

Certification CE/ ISO9001/ISO14001

Warranty 1 years

After-sales Service Provided Engineers available to service machinery overseas

High Pressure Hydraulic PP China Filter

1. Hydraulic compressing, automatic maintaining pressure

2. Relay control

3. Electric controll cabinet

4 .Filter temperature -10 to 120 centi degree

5. Manual shifting and discharging

6. SUS slide way

7. Welded steel structure

8. Raw reinforced polypropylene filter plate

9. The side bar is made from Q235-A solid steel plate

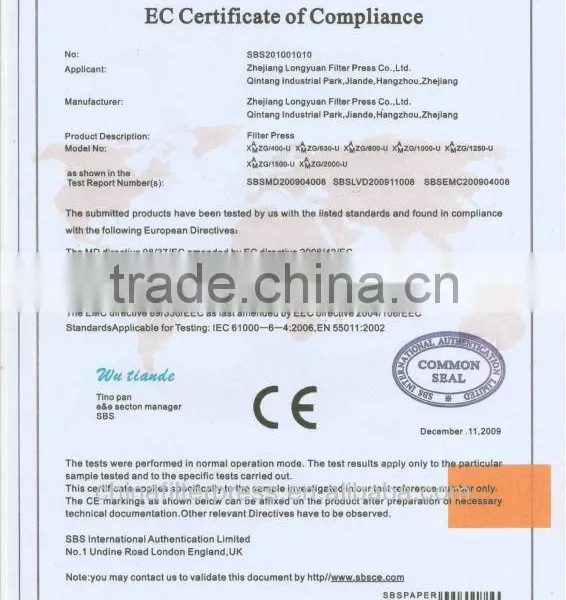

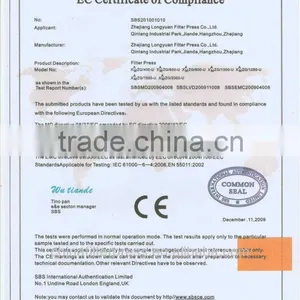

10. ISO9001:2008 quality management system, ISO14001:2004 environmental management system and CE certified

11. Warranty period 1 year

Technical parameter (The " * " signal means midship mounting)

Filter Area(m²)		10	15	20	25	30	40	50	60	70	80
Cake Thickness(mm)		30	30	30	30	30	30	30	30	30	30
Chamber volume(m³)		0.157	0.235	0.313	0.391	0.47	0.626	0.798	0.955	1.11	1.268
Qty of plate/Membrane plate(pcs)		4/5	6/7	9/10	11/12	14/15	19/20	24/25	29/30	34/35	39/40
Distance of foundation(A/mm)		1650	1900	2275	2525	2900	3525	4150	4775	5400	6025
The length of the machine(mm)	XG/800	2350	2600	2975	3225	3600	4225	4850	5475	6100	6725
The length of the machine(mm)	XZG/800	2450	2700	3075	3325	3700	4325	4950	5575	6200	6825
Weight of machine(kg)	XG/800	2200	2365	2625	2800	3045	3445	3840	4345	4800	5260
Weight of machine(kg)	XZG/800	2450	2615	2875	3050	3295	3690	4090	4595	5050	5510

Outsourcing components

Item No.	Description	Manufacturer
1	Motor of hydraulic station	ABB
2	Major electric components	Schneider
3	Hydraulic valve, Germany Rexroth Series	Beijing Huade
4	Filter cloth	Southwest filter cloth
