Automatic Table Tennis Cartoner Chinese Supplier

Specifications

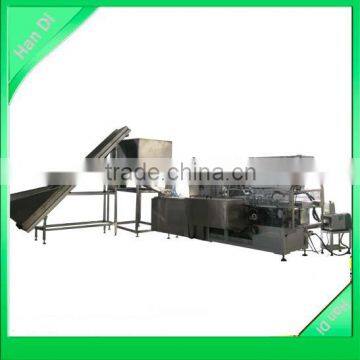

TH260 series high speed cartoning machine

Automatic table tennis packing cartoner

It is widely used in the package field, such as pharmaceuticals, food, daily chemical and other industries, which can function independently and also can be joined to the whole packaging line.

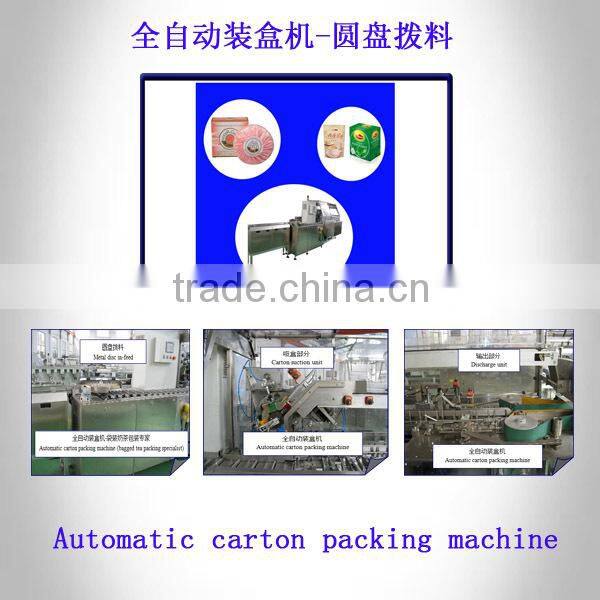

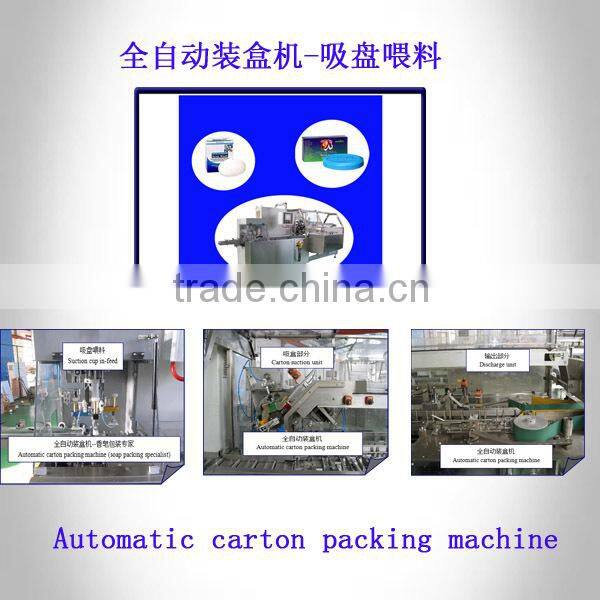

It is mainly composed of the following parts:master driving section, metal gate infeed, carton-transferring unit, carton-suction unit, product-push unit, coding unit, carton-pressing unit, glue sprayer (carton flaps folding unit), discharge unit, electric control unit and pneumatic unit. Under coordinated work of the above parts, the product packing procedure is completed perfectly.

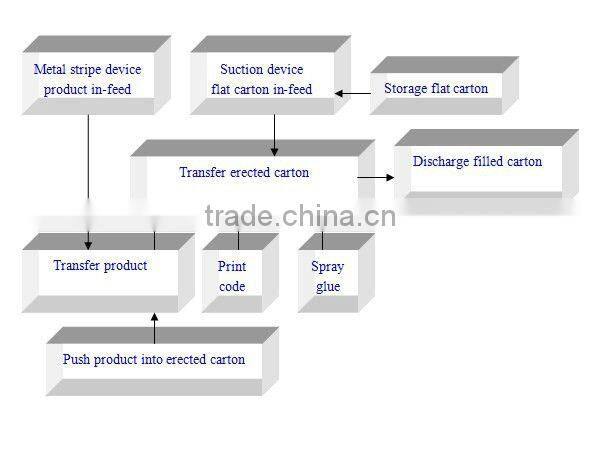

Specific operation principles are as follows:

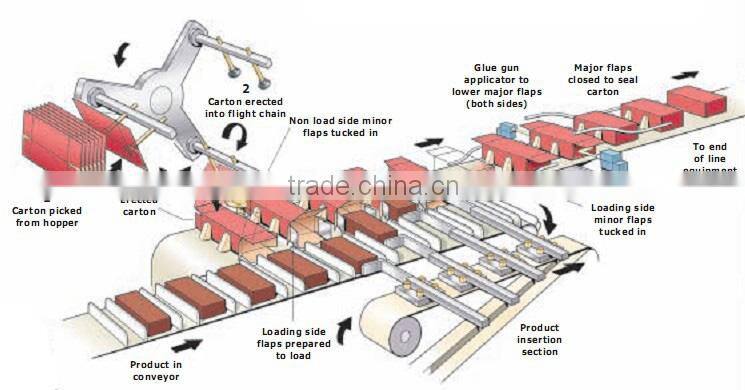

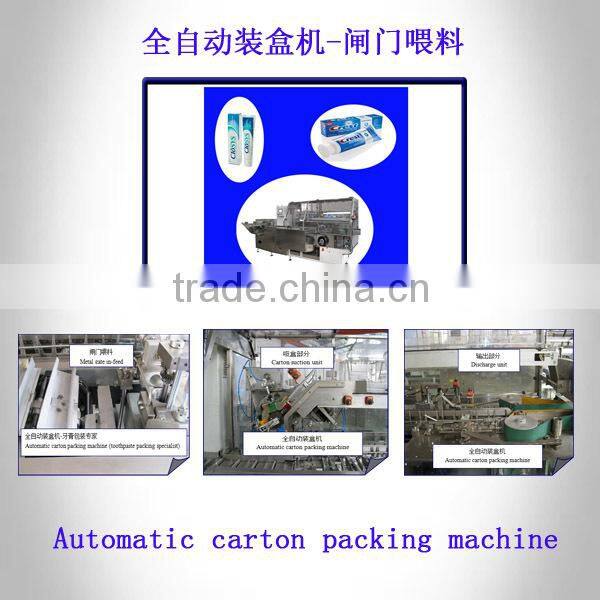

Products flow onto the in-feeding conveyor from upstream machine, and were put to the transferring shoes by metal gate infeed unit.

When the metal gate infeed unit under the control of photoelectric switch detect that the products are ready,the carton-suction rod begins to suck carton,meanwhile carton-pull rod begins to pull the carton,and then the carton-folding rod unfold the carton,finally the carton is successfully put on the carton guide rail. The carton–suction device has a protection function -- no product entering, no carton suction .The product pusher unit boasts the protection function -- no pushing when there is product but no cartons.

The filled cartons will undergo flap-folding, coding, glue spraying and closing with the cooperation of the workbench closing unit. Later they will be tightened by the discharge conveyor and then transferred to the case packing platform.

Its visible speed is controlled by variable frequency and programmable control unit and the packing procedures are tracked by photo eyes. This machine boasts safety devices such as overloading protection, electricity leakage protection and failure alarm.

This user-friendly machine adopts world famous control elements with touch screen in both Chinese and English.

This compact equipment operates simply and reliably,boasting fast packaging speed,stable packaging quality,as well as smooth and beautiful packaging appearance.

Pre-Sale Services

Even before you purchase one of our products, we want to make sure you get the most out of the products you have chosen. That's why we offer these pre-sale services-to help you make the proper product selection in terms of size, specifications and application.

Sell Service

Listen to you carefully and offer you the best packing solution.

After Sale Service

We know that our customers need the assurance their packaging production operations can be depended upon! That's why we have a dedicated service department, consisting of expert factory trained equipment technicians to service the many different brands of systems we carry.

Han Di feels very strongly about the importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options designed to prevent equipment issues before they become problems. As the old adage states, an ounce of prevention is worth a pound of cure!

Han Di provides monthly, quarterly, semi-annually and yearly maintenance agreements on a wide range of packaging equipment systems. This program has many benefits that will SAVE you TIME and MONEY!

• Decreases Chance of Equipment Downtime
• Increases Life of System
• Maintains Optimal Equipment Efficiency
• Increases the Safety of the Equipment
• Increases System Reliability
• Increase Production Levels

And you'll have the added assurance and peace of mind that your packaging operation will be operational when you need it most.

For your convenience, our service department will work according to your schedule. As an added benefit to our customers, we will send you a periodic letter to remind you when recommended preventative maintenance is due. The cost of the program is dependant upon number and type of equipment to be serviced.

Additionally our comprehensive preventative maintenance program is offered free of charge to our "Star Preferred Customer Group".

Some of the servicing maintenance solutions include:

Case erector

Box erector

Carton erector

Case packer

Box packer

Carton packer

Box filling machine

Box filling equipment

Box filling machinery

Case filling machine

Case filling equipment

Case filling machinery

Carton filling machine

Carton filling equipment

Carton filling machinery

Carton packing machine

Carton packing equipment

Carton packing machinery

Box packing machine

Box packing equipment

Box packing machinery

Case packing machine

Case packing equipment

Case packing machinery

Cartoner

Carton packaging machine

Carton packaging equipment

Carton packaging machinery

Case packaging machine

Case packaging equipment

Case packaging machinery

Case forming machine

Case forming equipment

Case forming machinery

Carton froming machine

Carton forming equipment

Carton forming machinery

Box forming machine

Box forming equipment

Box forming machinery

Would you like to see our machine running video?

Company introduction video link:
/v_show/id_XNjM1MDc3OTM2.html

Machine running video link:

Automatic carton packing machine (toothpaste cartoning specialist)
/v_show/id_XNjM1MDg2MzM2.html
