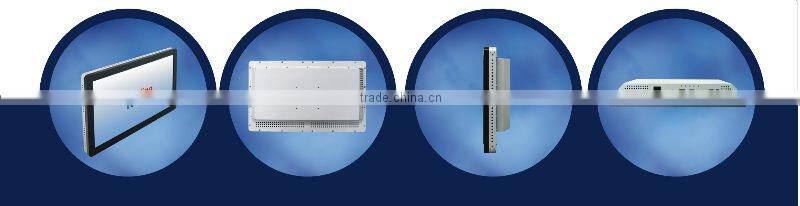

Help CenterLeadingtouch 22" SAW Touch Screen Touch Monitor for Kiosks TM-2239
Related Products
-
Leadingtouch MultiTouch IR Touch Monitor 42"/32"/26"/22"/19"/17"/15"NegotiableMOQ: 1 Unit -
Leadingtouch 22" Multitouch Infrared IR Touch Monitor TM-2258US$ 300 - 350MOQ: 1 Unit
-
Leadingtouch 22" Multitouch Infrared IR Touch Monitor Kiosks TM-2258US$ 250 - 300MOQ: 1 Unit
-
IR Touch Open Frame Touch Monitor 15"/17"/19"/19"W/22"US$ 250 - 300MOQ: 1 Unit
-
Leadingtouch Mulitouch IR Touch Monitor 12"-65"US$ 200 - 1,000MOQ: 1 Unit
Specifications
1, Elo ET2239L compatiblle SAW touch monitor2, Can use ELO driver, all dimension same ET2239L
3, Dual rs232 and USB touch
4, Agency Approval:Leadingtouch touchscreens, controllers, and cables have been approved for CE marking. Where appropriate, Touchmonitors are marked CE compliant, and are typically Class B. Systems incorporating leadingtouch touchscreens, controllers, and cables have been approved to FCC Class A compliance. Touchmonitors typically are FCC Class B verified RoHS
Model |
TM-2239 |
Description |
22″wide screen TFT Rear Mount Touchmonitor |
Case/Bezel Color |
Plastic / Black |
Display |
16:10 Ratio Active matrix TFT LCD |
Optimal(native) resolution |
1680 x 1050 @ 60Hz |
Sychronization Range |
72.1 KHz horizontal, 60 Hz vertical |
Useful screen area |
Horizontal: 18.66" (474 mm);Vertical: 11.65 " (296 mm) |
Colors |
16.7 million |
Brightness |
LCD panel: 300cd/m2 (typical) |
| |
With SAW touchscreen: 280 cd/m2 (typical) | |
Pixel Pitch |
0.282 x 0.282 mm |
Response Time |
5 msec (typical) |
Contrast ratio |
1000:1 typical |
Viewing angle(typical, from center) |
Horizontal (left/right): 170°(85° /85° ) |
Vertical (up/down): 160°(80° /80° ) | |
Backlight Lamp life |
50,000 Hrs to 1/2 brightness |
Input video format |
Analog (VGA) and DVI |
Input video signal connector |
Analog (VGA) and DVI |
On Screen Display(OSD) |
Remote OSD with 1.2m Cable |
Touch Technology |
SAW |
Touch Interface |
Combo RS232 and USB |
Touch Resistive Time |
10ms |
Mounting Options |
Rear Fixed, 100mm VESA mount |
Power supply |
External:100-240V AC, 50-60 Hz |
Power Consumption |
31W Typical |
Temperature Range |
Operating:0ºC-50ºC, Storage:-20ºC-60ºC |
Humidity Range |
Operating:8%-90%, Storage 5%-90% |
Touchmonitor Dimension |
530 x 352 x 79.4(mm) |
Shipping Carton Dimension |
630x 452 x 190(mm) |
Weight(approx.) |
Monitor:7kg / shipping: 10kg |
Warranty |
1 year |
Agency Approvals |
FCC, CE, RoHS compliant |
