Specifications
1,Infrared IR water proof touch frame,ELO ET1735L2, Dual RS232 and USB combo touch interface

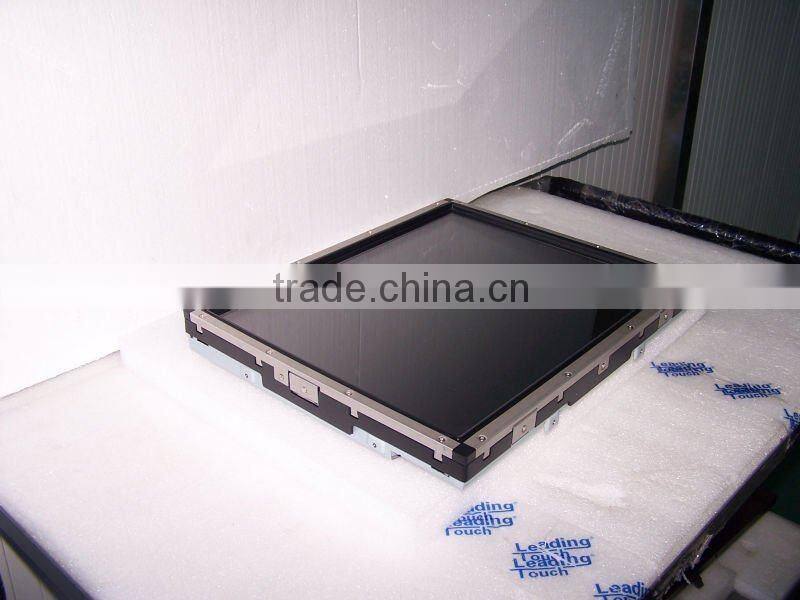

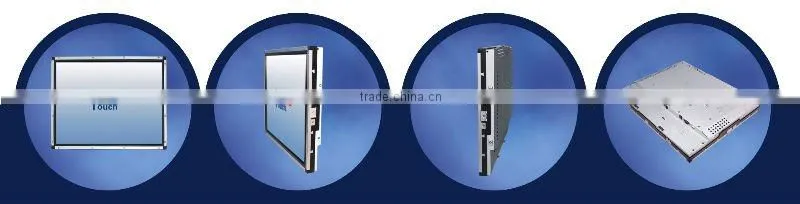

TM-1748 17" Infrared IR touch screen open frame (Rear-Mount) touchmonitor.
Agency Approval:Leadingtouch touchscreens, controllers, and cables have been approved for CE marking. Where appropriate, Touchmonitors are marked CE compliant, and are typically Class B. Systems incorporating leadingtouch touchscreens, controllers, and cables have been approved to FCC Class A compliance. Touchmonitors typically are FCC Class B verified RoHS
Model |
TM-1748 |
Description |
17″TFT Rear Mount Touchmonitor |
Case/Bezel Color |
Black |
Display |
4:3 Ratio Active matrix TFT LCD |
Optimal(native) resolution |
1280X1024@60Hz |
Sychronization Range |
Horizontal:30-80 kHz; Vertical: 60-75Hz |
Useful screen area |
Horizontal: 13.3" (338 mm);Vertical: 10.6" (270.3 mm) |
Colors |
16.7 million |
Brightness |
LCD panel: 300cd/m2 (typical) |
with touchscreen: 230 cd/m2 (typical) | |
With SAW touchscreen: 280 cd/m2 (typical) | |
Pixel Pitch |
0.264 x 0.264 mm |
Response Time |
8 msec (typical) |
Contrast ratio |
500:1 typical |
Viewing angle(typical, from center) |
Horizontal (left/right): 140°(70° /70° ) |
Vertical (up/down): 130°(70° /60° ) | |
Backlight Lamp life |
50,000 Hrs to 1/2 brightness |
Input video format |
VGA or DVI optional |
Input video signal connector |
Mini D-Sub 15-Pin VGA type |
On Screen Display(OSD) |
Remote OSD with 1.2m cable |
Touch Technology |
Infrared IR Touch |
Touch Interface |
Combo 10ms232 and USB interface |
Touch Resistive Time |
10ms |
Mounting Options |
Rear Fixed, 75 mm & 100mm VESA mount |
Power supply |
External:100-240V AC, 50-60 Hz |
Power Consumption |
50W max |
Temperature Range |
Operating: 0°C to 50°C; Storage: -20°C to 60°C |
Humidity Range |
Operating: 10%-90%; Storage: 5%-90% no condensing |
Touchmonitor Dimension |
368x 306 x 48(mm) |
Shipping Carton Dimension |
460x 409 x 175(mm) |
Weight(approx.) |
Monitor: 3.8kg / shipping: 6kg |
Warranty |
Monitor: 3 years/’; LCD Panel: 1 year |
Agency Approvals |
FCC, CE, CCC,RoHS compliant |
