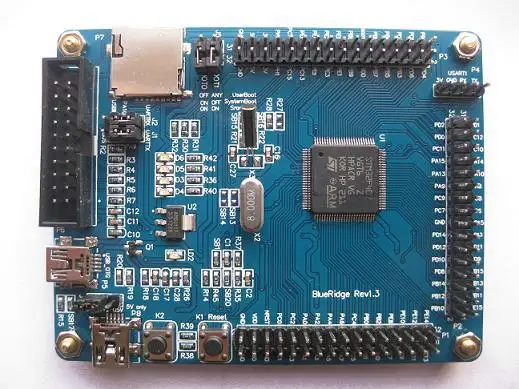

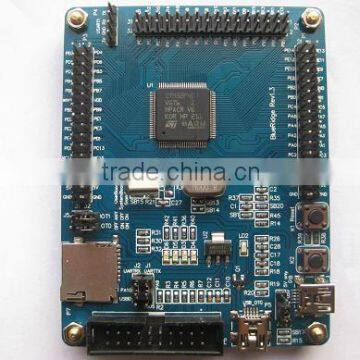

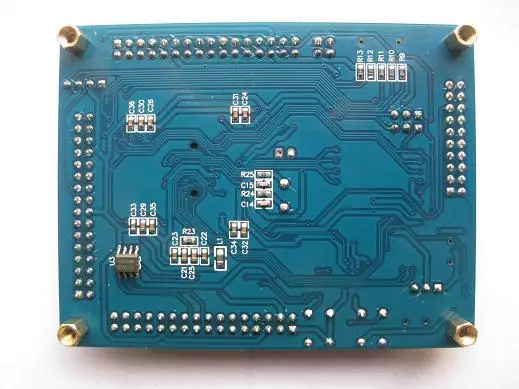

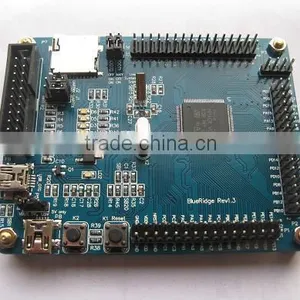

Help CenterSTM32 Development Board Core Board /STM32F407VGT6 Minimum System Board M4 168MHz
Related Products
-
STM32F407VGT6100 STM32-ETH-47V/UET Pin With Ethernet Core Board FourUS$ 20 - 100MOQ: 1 Piece -
5050 Pink LED Strip Non-waterproof 5M 300Leds Fleible Strip String Light DC 12V Led Ribbon Tape Bombillas Led Lamp LightUS$ 0.1 - 100MOQ: 1 Piece
-
5M / Roll 5050 SMD RGB LED Strip Light + DC 12V 3A Power Supply Adapter EU / US Plug Transformer + 44Keys IR Remote ControllerUS$ 0.1 - 100MOQ: 1 Piece
-
3A 12V DC 36W Power Supply LED Driver Adapter Transformer Switch For Led Strip Lighting 3528 5050 LED Ribbon With CE ROHS FCCUS$ 0.1 - 100MOQ: 1 Piece
-
5630 Led Strip Light Waterproof 5M 300 Led Fleible String Light + 3A Power + 10key RF Remote Control Indoor Home DecorationUS$ 0.1 - 100MOQ: 1 Piece
STMThreeTwoF407VGT6 minimum system board
One) with TF card slot, MTwo5P16 (SPI FLASH);
Two) through the USB port, DFU burning program firmware.
Three) to TF card reader
Shipping list
1.Development board
2 supporting USB line
Three SkyDrive data (principle diagram, 4G routines, massive STM32 data)
USB TTL (with protective circuit, Need to buy another, you need to please contact customer service.
The size of the 9cm7cm development board
Eighty GPIO all leads

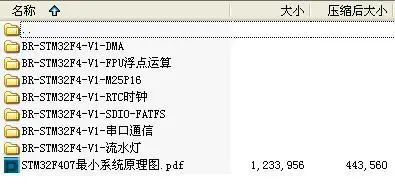

ThreeRoutine instructions
In the following routineKeil uVision4.23Compiler verification.
BR-STM32F4-V1-DMA
Floating point BR-STM32F4-V1-FPU
BR-STM32F4-V1-M25P16
BR-STM32F4-V1-RTC clock
BR-STM32F4-V1-SDIO-FATFS
BR-STM32F4-V1- serial communication
BR-STM32F4-V1- water lamp
BR-STM32F4-V1-USB_OTG_FS_USB_SD card reader
BR-STM32F4-V1-USB_OTG_FS_DFU
Attached:
STM32F407VGT6
CPUfrequency168M,
FLASH 1M Bytes,
SRAM 192+4KB,
timerSeventeenA,
SPIInterface3A,
IICInterface3A,
USARTInterface4A,
UARTInterface2A,
CANInterface2A,
USBInterface2A,
SDIOInterface1A,
ADCpassageway3A,
DACpassageway2A,
I/Oport80A,
encapsulationLQFP100
