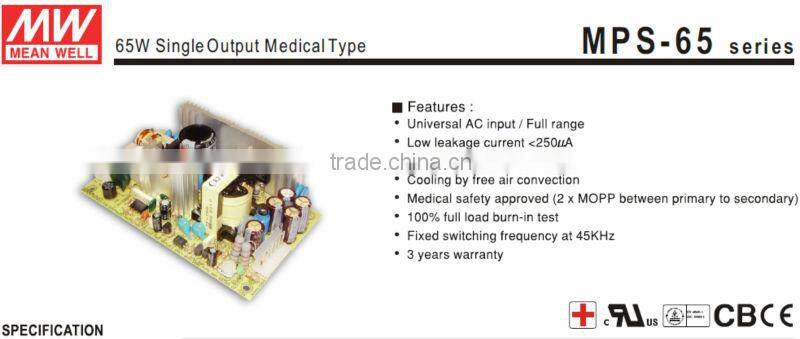

Meanwell 48v 65w Industrial Switching Power Supply for Medical Type MPS-65-48

MODEL

MPS-65-48

OUTPUT

DC VOLTAGE

48V

RATED CURRENT

1.35A

CURRENT RANGE

0 ~ 1.5A

RATED POWER

64.8W

OUTPUT POWER (max.)

72W(+3.3V:50W;+5V:69W)with 18CFM min. Forced air convection

RIPPLE & NOISE (max.)   Note.2

100mVp-p

VOLTAGE ADJ. RANGE

43.2 ~ 52.8V

VOLTAGE TOLERANCE Note.3

±2.0%

LINE REGULATION

±1.0%

LOAD REGULATION

±2.0%

SETUP, RISE TIME

800ms, 30ms/230VAC         800ms, 30ms/115VAC at full load

HOLD UP TIME (Typ.)

50ms/230VAC         16ms/115VAC at full load

INPUT

VOLTAGE RANGE

90 ~ 264VAC         127 ~ 370VDC

FREQUENCY RANGE

47 ~ 440Hz

EFFICIENCY (Typ.)

80%

AC CURRENT (Typ.)

1.2A/115VAC         0.7A/230VAC

INRUSH CURRENT (Typ.)

COLD START 17A/115VAC         35A/230VAC

LEAKAGE CURRENT Note.7

Earth leakage current<250uA / 264VAC, Touch current < 60uA/264VAC

PROTECTION

OVER LOAD

73 ~ 105W (3.3V:51 ~ 75W)(5V:70 ~ 105W) rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

55.2 ~ 64.8V

Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.

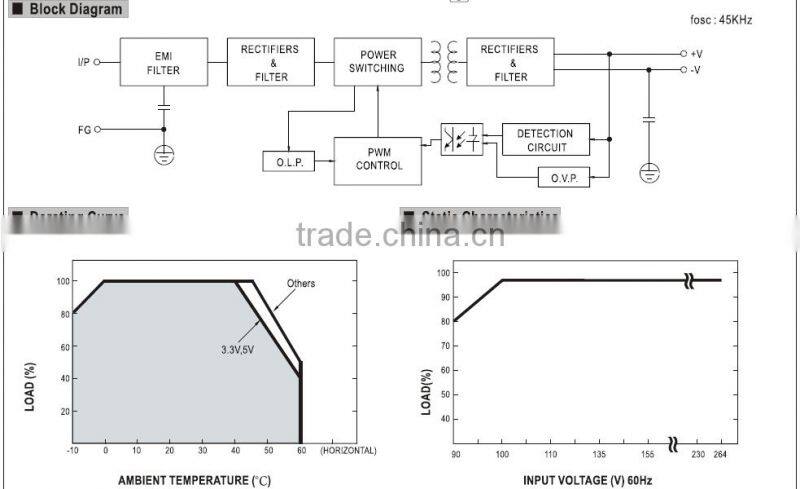

-10~+60°C (Refer to derating curve)

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20~+85°C, 10~95%RH

TEMP. COEFFICIENT

±0.04%/°C(0~50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.eachalong X, Y, Z axes

SAFETY&EMC

(Note 4)

SAFETY STANDARDS

ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved

WITHSTAND VOLTAGE

I/P-O/P:4KVAC     I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70% RH

EMCEMISSION

Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A

OTHERS

MTBF

359.7Khrs min.   MIL-HDBK-217F (25°C)

DIMENSION

127*76*42mm (L*W*H)

PACKING

0.23Kg; 54pcs/14.6Kg/1.35CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.

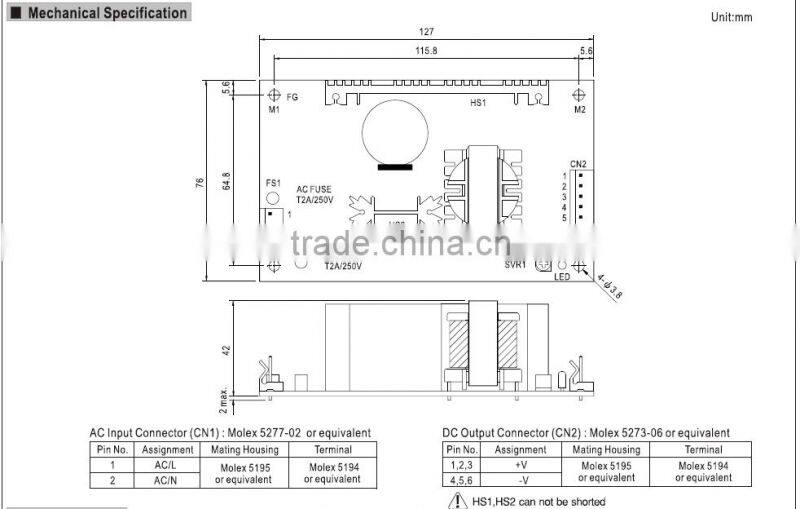

5. Mounting holes M1 and M2 should be grounded for EMI purposes.

6. Heat Sink HS1,HS2 can not be shorted.

7. Touch current was measured from primary input to DC output.
