Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Mean Well MPS-45-24 Switching dc Power Supply 45W Medical Power Supply

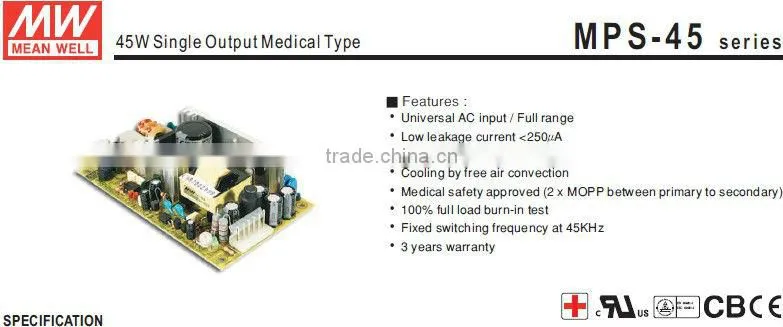

Mean Well MPS-45-24 Switching dc Power Supply 45W Medical Power Supply

Name: Mean Well MPS-45-24 Switching dc Power Supply 45W Medical Power Supply
Brand: Meanwell
SKU: 117431419

Mean Well MPS-45-24 Switching dc Power Supply 45W Medical Power Supply thumbnail-1

Mean Well MPS-45-24 Switching dc Power Supply 45W Medical Power Supply photo-1

US$ 1 - 20 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

MPS-45-24

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number MPS-45-24

Output Power Other, 45.6W

Output Type Single

Input Voltage Other, 90 ~ 264VAC 127 ~ 370VDC

Output Voltage 24V

Output Frequency 47~63Hz

Output Current 1.9A

MODEL		MPS-45-24
OUTPUT	DC VOLTAGE	24V
	RATED CURRENT	1.9A
	CURRENT RANGE	0 ~ 2.2A
	RATED POWER	45.6W
	OUTPUT POWER (max.)	52W(+3.3V:35W)with 18CFM min. Forced air convection
	RIPPLE & NOISE (max.) Note.2	100mVp-p
	VOLTAGE ADJ. RANGE	21.6 ~ 26.4V
	VOLTAGE TOLERANCE Note.3	±2.0%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	SETUP, RISE TIME	800ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	50ms/230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 440Hz
	EFFICIENCY (Typ.)	78%
	AC CURRENT (Typ.)	1.2A/115VAC 0.7A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 17A/115VAC 35A/230VAC
	LEAKAGE CURRENT	Earth leakage current<250uA / 264VAC, Touch current < 60uA/264VAC
PROTECTION	OVER LOAD	53 ~ 75W (3.3V:36 ~ 55W) rated output power
	OVER LOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	27.6 ~ 32.4V
	OVER VOLTAGE	Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.	-10~+60°C (Refer to derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.04%/°C(0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.eachalong X, Y, Z axes
SAFETY&EMC (Note 4)	SAFETY STANDARDS	ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70% RH
	EMCEMISSION	Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, medical level, criteria A
OTHERS	MTBF	366.1Khrs min. MIL-HDBK-217F (25°C)
	DIMENSION	1277628mm (LWH)
	PACKING	0.18Kg; 72pcs/15.1Kg/1.35CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. 5. Mounting holes M1 and M2 should be grounded for EMI purposes. 6. Heat Sink HS1,HS2 can not be shorted. 7. Touch current was measured from primary input to DC output.
