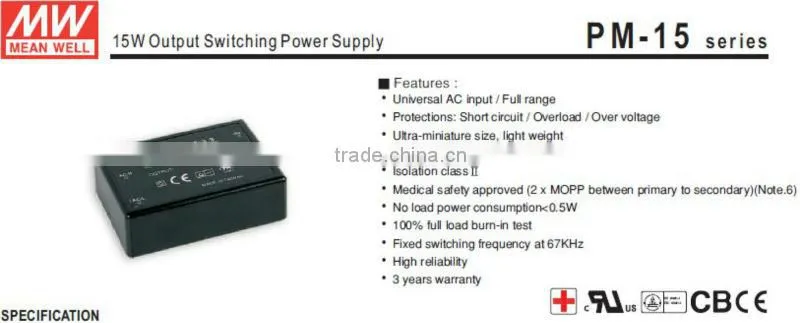

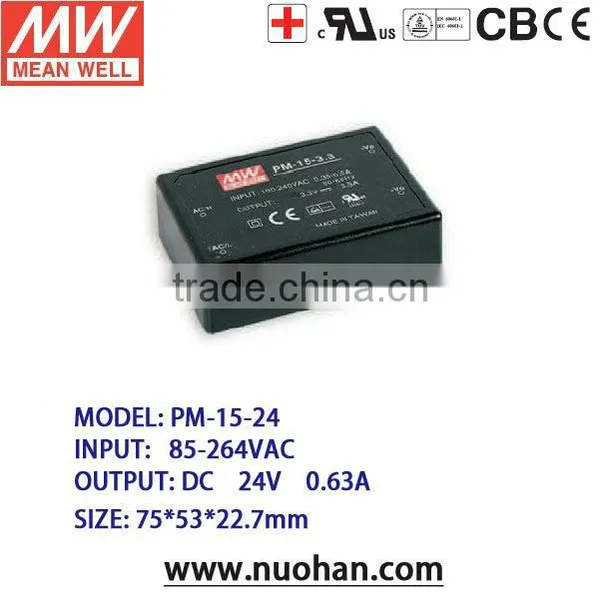

Help CenterMeanwell 15W 24v Switching Power Supply PM-15-24 Medical Approved Power Supply 15w 24v
Related Products
-
Meanwell MPT-200A Triple Output Switching Power Supply 5v 12v -5v /200W Medical Switching Power SupplyUS$ 1 - 100MOQ: 10 Pieces -
Meanwell 65W Power Supplies/65W Triple Output Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces
-
Mean Well LPP-100-5 100w 5V Switching Power Supply 100w 5v Open Frame SmpsUS$ 1 - 20MOQ: 1 Piece
-
Meanwell 75W 48V Switching Power Supply/75W Single Output Switching Power Supply/48v Switching Power Supply UnitUS$ 1 - 10MOQ: 10 Pieces
-
Mean Well PS-35-7.5 35W 7.5v Switching Power Supply 35W 7.5v Power SupplyUS$ 10 - 25MOQ: 1 Piece
MODEL |
PM-15-24 |
|
OUTPUT |
DC VOLTAGE |
24V |
RATED CURRENT |
0.63A |
|
CURRENT RANGE |
0 ~ 0.63A |
|
RATED POWER |
15.12W |
|
RIPPLE & NOISE (max.) Note.2 |
240mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
|
LINE REGULATION |
±0.5% |
|
LOAD REGULATION |
±0.5% |
|
SETUP, RISE TIME |
1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load |
|
HOLD UP TIME (Typ.) |
100ms/230VAC 24ms/115VAC at full load |
|
INPUT |
VOLTAGE RANGE |
85 ~ 264VAC 120 ~ 370VDC |
FREQUENCY RANGE |
47 ~ 440Hz |
|
EFFICIENCY (Typ.) |
81% |
|
AC CURRENT (Typ.) |
0.35A/115VAC 0.2A/230VAC |
|
INRUSH CURRENT (Typ.) |
COLD START 30A/115VAC 50A/230VAC |
|
LEAKAGE CURRENT Note.5 |
Touch current <80uA/264VAC |
|
PROTECTION |
OVER LOAD |
Above 105% rated output power |
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
OVER VOLTAGE |
27.6 ~ 32.4V |
|
Protection type : Shut off o/p voltage, clamping by zener diode | ||
ENVIRONMENT |
WORKING TEMP. |

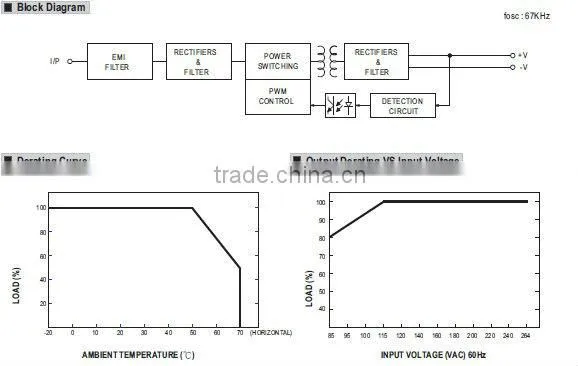

-20~+70°C (Refer to derating curve) |
WORKING HUMIDITY |
20~90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-40~+85°C, 10~95%RH |
|
TEMP. COEFFICIENT |
±0.03%/°C(0~50°C) |
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|
|
SAFETY&EMC (Note 4) |
SAFETY STANDARDS |
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved |
WITHSTAND VOLTAGE |
I/P-O/P:4KVAC |
|
ISOLATION RESISTANCE |
I/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH |
|
EMC EMISSION |
Compliance to EN55011(CISPR11),EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3, medical level, criteria A |
|
OTHERS |
MTBF |
499.7Khrs min. MIL-HDBK-217F (25°C) |
DIMENSION |
75*53*22.7mm (L*W*H) |
|
PACKING |
0.14Kg; 120pcs/17.8Kg/0.97CUFT |
|
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Touch current was measured from primary input to DC output. 6. Suitable for BF application with appropriate system consideration. |
|
Send Inquiry to This Supplier
