Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell PPT-125D 125w Triple Output Power Supply 5v 24v 12v Multiple Output Smps

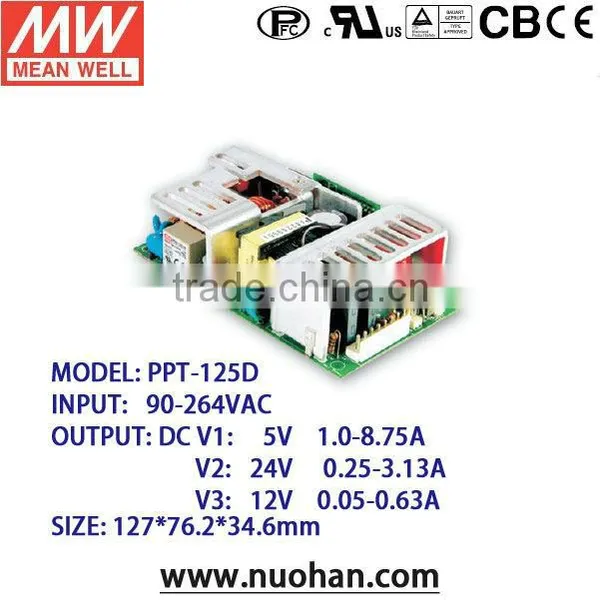

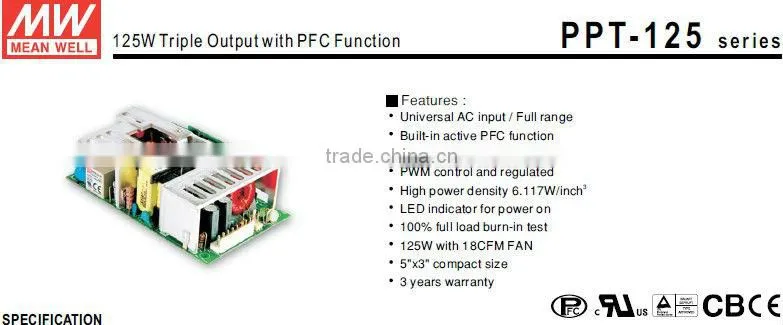

Meanwell PPT-125D 125w Triple Output Power Supply 5v 24v 12v Multiple Output Smps

Name: Meanwell PPT-125D 125w Triple Output Power Supply 5v 24v 12v Multiple Output Smps
Brand: Meanwell
SKU: 117431443

Meanwell PPT-125D 125w Triple Output Power Supply 5v 24v 12v Multiple Output Smps thumbnail-1

Meanwell PPT-125D 125w Triple Output Power Supply 5v 24v 12v Multiple Output Smps photo-1

US$ 1 - 100 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

PPT-125D

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number PPT-125D

Output Power Other, 126.43W

Output Type Triple

Input Voltage Other, 90 ~ 264VAC 127 ~370VDC

Output Voltage 5V 24V 12V

Output Frequency 47~63Hz

Output Current 7A 2.5A 0.5A

MODEL		PPT-125D
OUTPUT	OUTPUT NUMBER	CH1	CH2	CH3
	DC VOLTAGE	5V	24V	12V
	RATED CURRENT	7A	2.5A	0.5A
	CURRENT RANGE (convection)	1 ~ 7A	0.25 ~ 2.5A	0.05 ~ 0.5A
	CURRENT RANGE(18CFM FAN)	1 ~ 8.75A	0.25 ~ 3.13A	0.05~ 0.63A
	RATED POWER (convection)	101W
	RATED POWER (18CFM FAN)	126.43W
	RIPPLE & NOISE (max.) Note.2	100mVp-p	240mVp-p	120mVp-p
	VOLTAGE ADJ. RANGE	CH1:4.75 ~ 5.25V
	VOLTAGE TOLERANCE Note.3	±3.0%	±5.0%	±6.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±3.0%	±3.0%	±5.0%
	SETUP, RISE TIME	1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	24ms/230VAC 24ms/115VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC 127 ~370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.93/230VAC PF>0.98/115VAC at full load
	EFFICIENCY (Typ.)	78%
	AC CURRENT(Typ.)	1.7A/115VAC 0.75A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 24A/230VAC
	LEAKAGE CURRENT	<2mA / 240VAC
PROTECTION	OVERLOAD	130 ~ 160% rated output power
		Protection type : Fold back current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	CH1:5.75 ~ 6.75V
		Protection type : Hiccup mode, recovers automatically after fault condition is removed

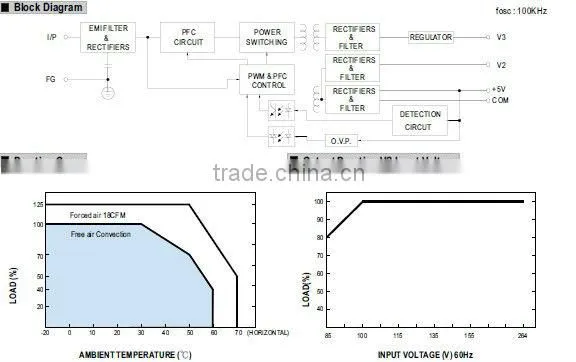

ENVIRONMENT	WORKING TEMP.	-20~+70°C (Refer to "Derating Curve")
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85°C,10~95% RH
	TEMP. COEFFICIENT	±0.05%/°C(0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC (Note 4)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1min.
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
	EMC EMISSION	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A
OTHERS	MTBF	94.7Khrs min. MIL-HDBK-217F(25°C)

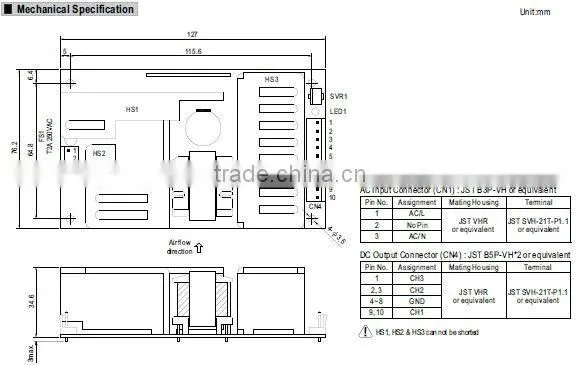

	DIMENSION	12776.234.6mm (LWH)
	PACKING	0.37Kg; 36pcs/14.3Kg/0.79CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” 5. Heat Sink HS1,HS2 & HS3 can not be shorted.
