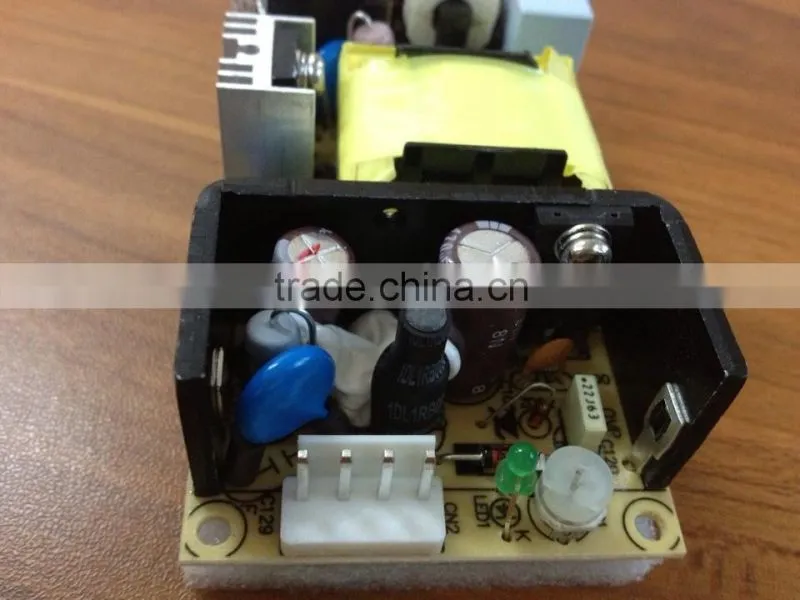

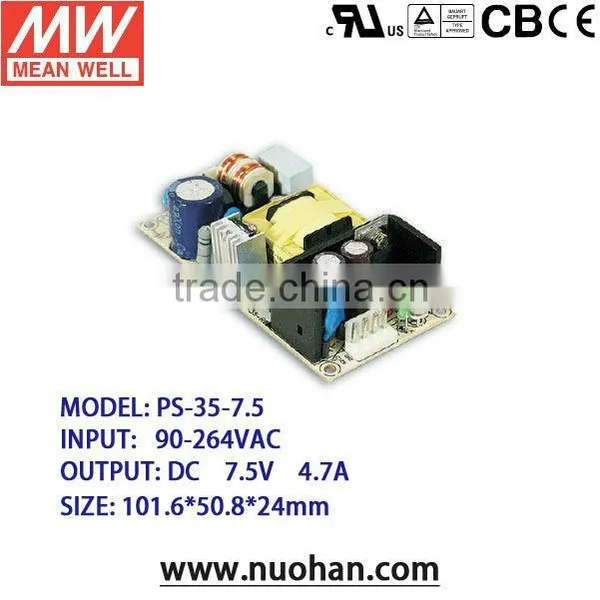

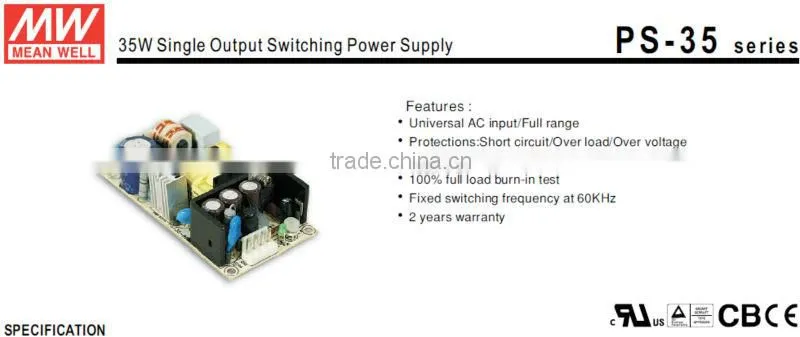

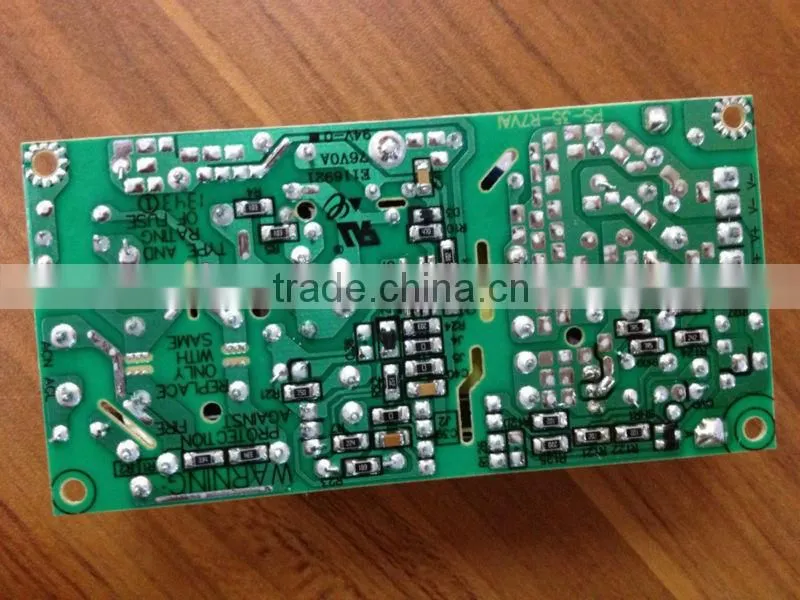

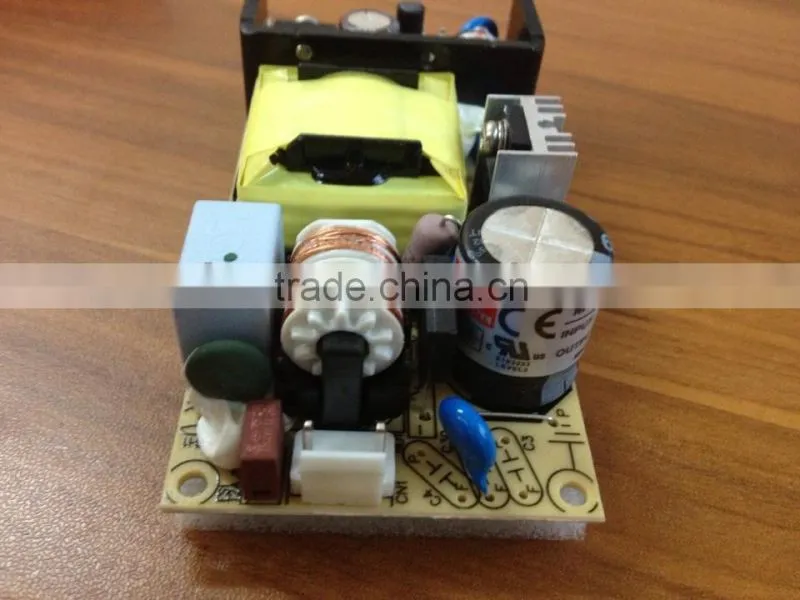

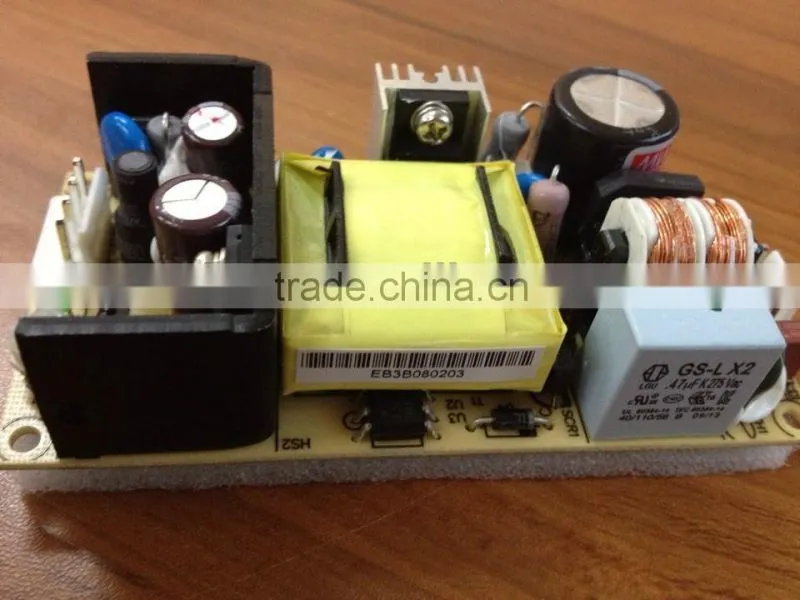

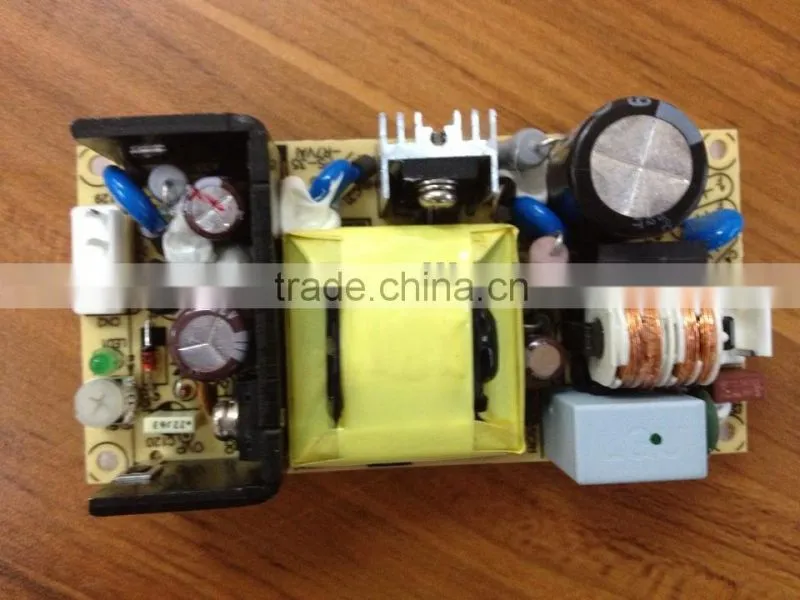

Help CenterMean Well PS-35-7.5 35W 7.5v Switching Power Supply 35W 7.5v Power Supply
Related Products
-
Mean Well RPS-160-48 160W 48V Medical Power Supply 160W 48V Medical Power SupplyUS$ 1 - 100MOQ: 1 Piece -
Mean Well 20w 24v Single Output Power Supply/20W Single Output Encapsulated Type/power Supplies 20wUS$ 1 - 10MOQ: 10 Pieces
-
Mean Well 20w 12v Single Output Power Supply/20W Single Output Encapsulated Type/20w Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces
-
Mean Well 15w 5v Power Supply/15W Single Output Encapsulated TypeUS$ 1 - 10MOQ: 10 Pieces
-
Mean Well 15w 3.3v Power Supply/15W Single Output Encapsulated Type/15w Switching Power SuppliesUS$ 1 - 10MOQ: 1 Piece
MODEL |
PS-35-7.5 |
|
OUTPUT |
DC VOLTAGE |
7.5V |
RATED CURRENT |
4.7A |
|
CURRENT RANGE |
0 ~ 4.7A |
|
RATED POWER |
35.25W |
|
RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
|
VOLTAGE ADJ. RANGE |
7.13 ~ 8.25V |
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
|
LINE REGULATION |
±0.5% |
|
LOAD REGULATION |
±1% |
|
SETUP, RISE TIME |
1200ms, 30ms/230VAC,1200ms,30ms/115VAC at full load |
|
HOLD UP TIME (Typ.) |
50ms/230VAC,10ms/115VAC at full load |
|
INPUT |
VOLTAGE RANGE |
90 ~ 264VAC 127 ~370VDC |
FREQUENCY RANGE |
47 ~ 440Hz |
|
EFFICIENCY (Typ.) |
80% |
|
AC CURRENT (Typ.) |
0.75A/115VAC 0.5A/230VAC |
|
INRUSH CURRENT (Typ.) |
COLD START 23A/115VAC 45A/230VAC |
|
LEAKAGE CURRENT |
<2mA / 240VAC |
|
PROTECTION |
OVER LOAD |
105 ~ 150% rated output power (3.3V: 105~160°C rated output power)) |
Protection type : Hiccup mode, recovers automatically after fault condition is removed. | ||
OVER VOLTAGE |
8.63 ~ 10.5V |
|
Protection type : shut down O/P voltage,re-power on to recover | ||
ENVIRONMENT |
WORKING TEMP. |

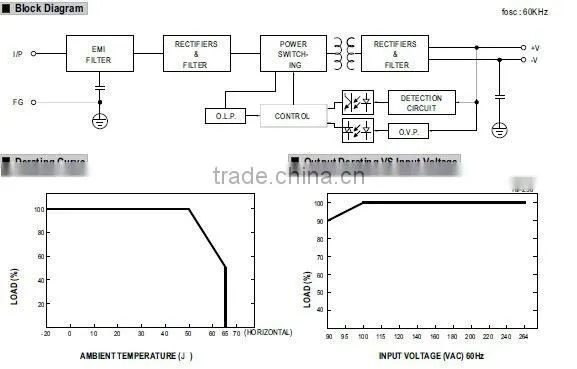

-20~+65°C (Refer to output load derating curve) |
WORKING HUMIDITY |
20~90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-20~+85°C, 10~95%RH |
|
TEMP. COEFFICIENT |
±0.05%/°C(0~50°C) |
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes |
|
|
SAFETY&EMC (Note 4) |
SAFETY STANDARDS |
UL60950-1, TUV EN60950-1 approved |
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|
EMI CONDUCTION & RADIATION |
Compliance to EN55022 (CISPR22) Class B |
|
HARMONIC CURRENT |
Compliance to EN61000-3-2,-3 |
|
EMS IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A |
|
OTHERS |
MTBF |
588.8Khrs |

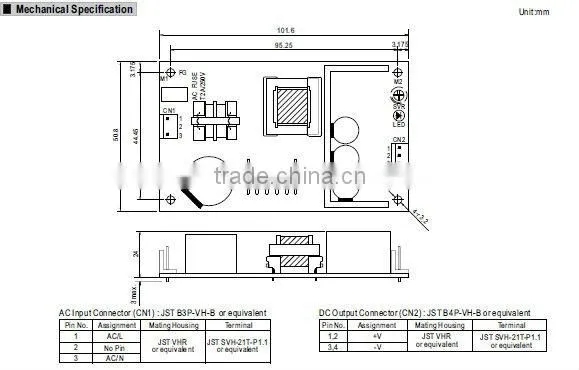

DIMENSION |
101.6*50.8*24mm (L*W*H) |
|
PACKING |
0.124Kg;96PCS/12.9Kg/0.8CUFT |
|
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|
